Appendix B

B-3

AMD RAID

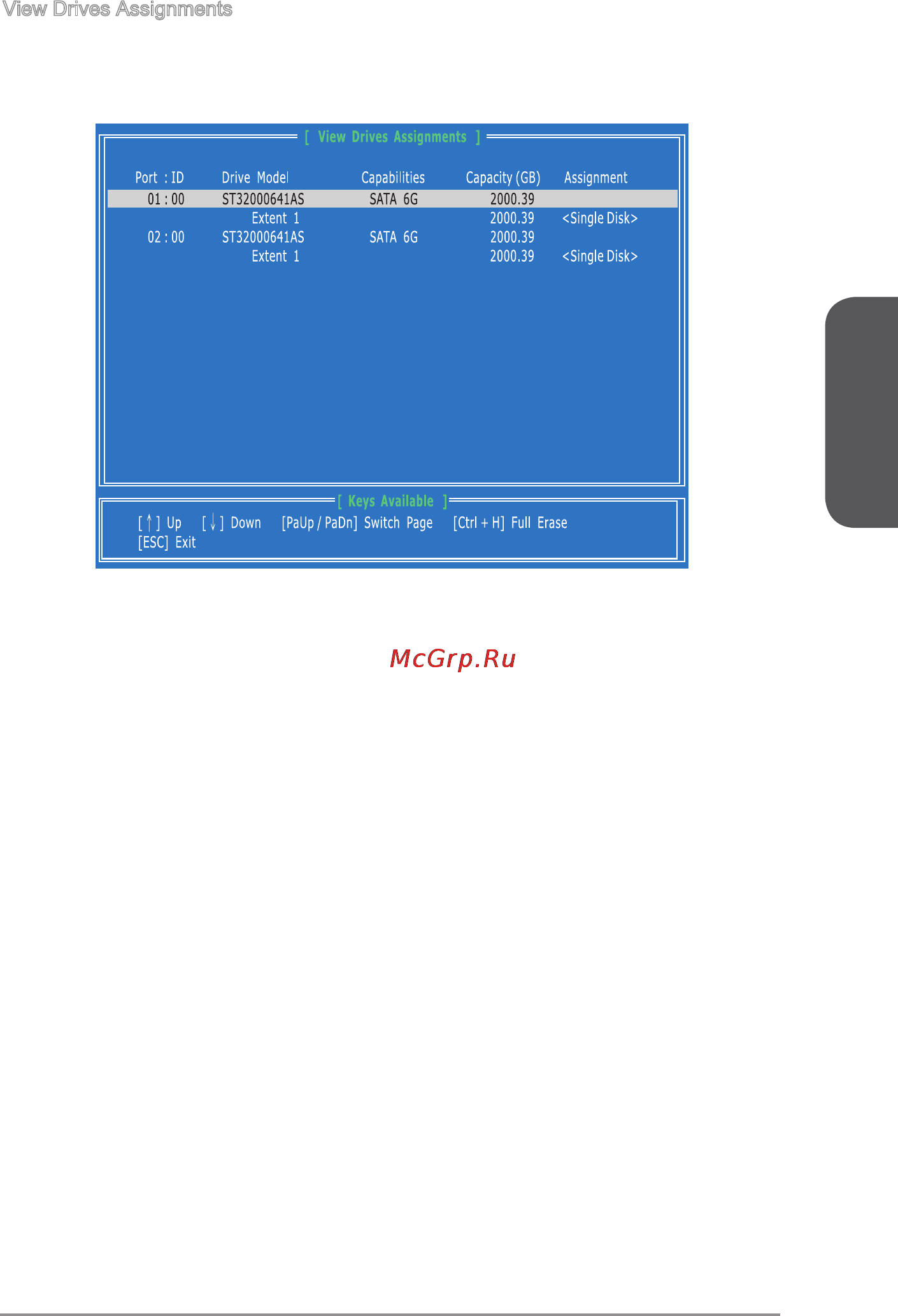

View Drives Assignments

This window displays the model number, capacities and assignment of the drives

physically attached to the SATA host adapter.
