MSI 970a sli krait edition [23/88] Back panel quick guide
![MSI 970a sli krait edition [23/88] Back panel quick guide](/views2/1174528/page23/bg17.png)
Chapter 1
1-9
Getting Started

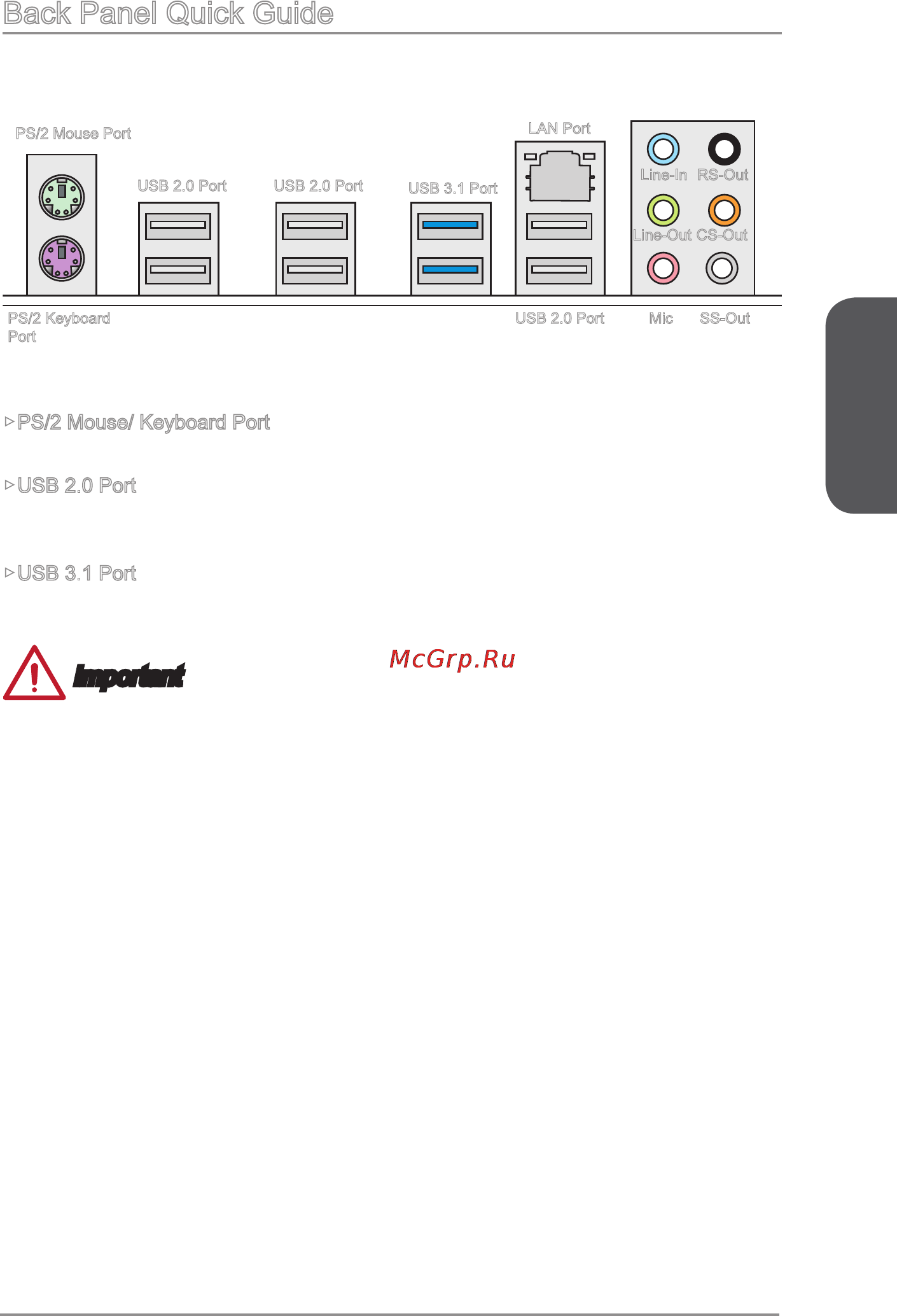

Back Panel Quick Guide
▶PS/2 Mouse/ Keyboard Port
The PS/2
®
mouse/ keyboard DIN connectors are for PS/2
®
mouse/ keyboard.
▶USB 2.0 Port
The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other
USB 2.0-compatible devices.
▶USB 3.1 Port
USB 3.1 port is backward-compatible with USB 3.0/ 2.0 devices. It supports data
transfer rate up to 10 Gb/s (SuperSpeed USB 10 Gbps).
Important
In order to use USB 3.1 devices, you must connect to a USB 3.1 port. If a USB cable
is used, it must be USB 3.1 compliant.
Line-In
Line-Out
MicUSB 2.0 Port
LAN Port
PS/2 Mouse Port
USB 3.1 Port
RS-Out
CS-Out
SS-Out
USB 2.0 Port USB 2.0 Port
PS/2 Keyboard
Port
