SERVICE

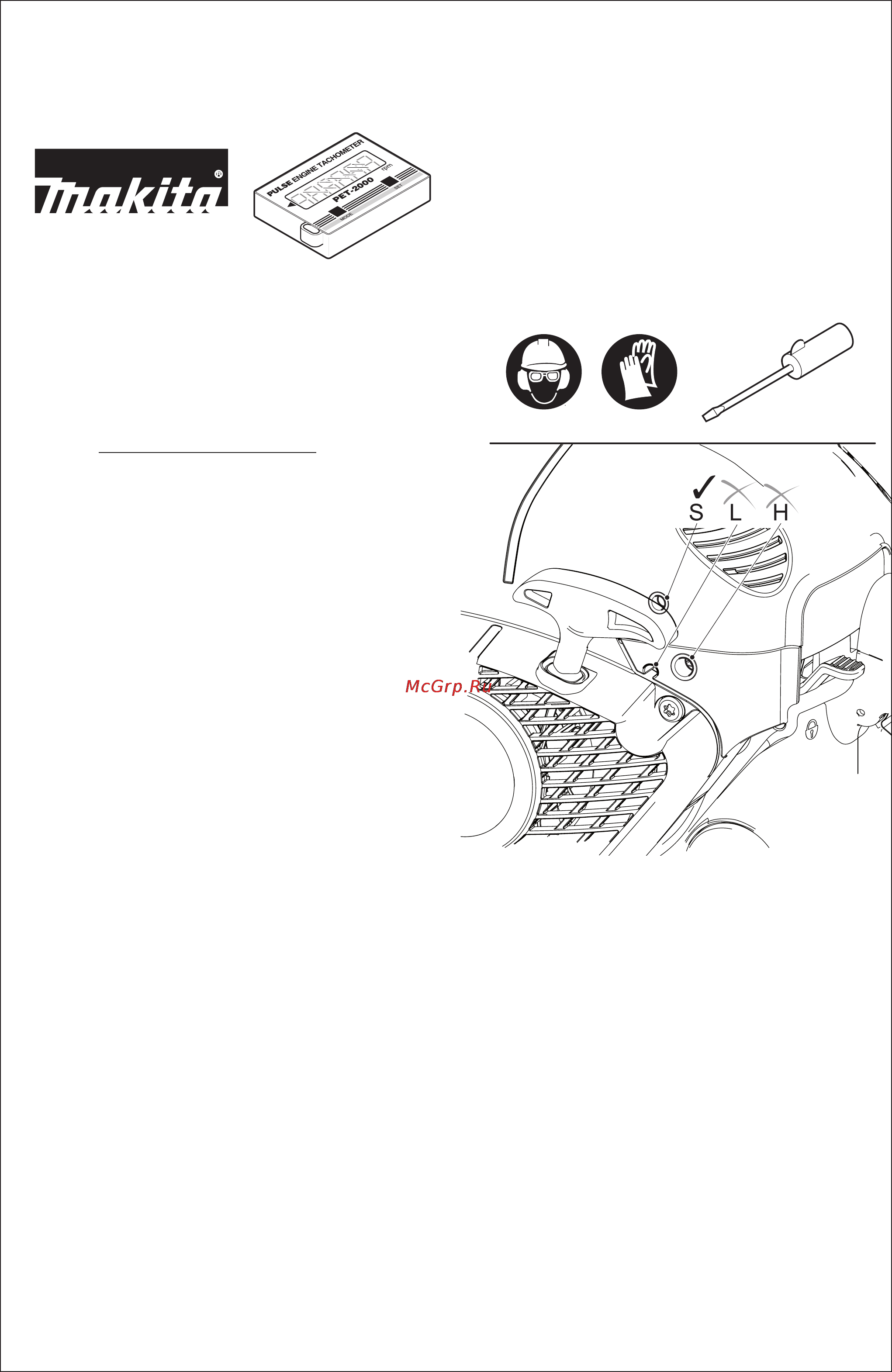

Adjusting the carburetor

CAUTION: Carburetor adjustment may only be done by

a specialist MAKITA service center!

Do not undertake any adjustments to adjusting screws

(H) and (L) without a tachometer! Incorrect adjustment

can lead to engine damage!

A tachometer is needed for adjustments to adjusting

screws (H) and (L), because if the engine runs over its

maximum rated speed, it can overheat and run out of

lubricant. This can damage the engine!

Only adjusting screw (S) can be manipulated by the user.

If the saw chain moves in idle (i.e. without the throttle being

pressed), it is imperative to correct the idle speed!

Do not adjust the idle speed until after complete as-

sembly and testing of the saw!

Idle speed adjustment must only be undertaken when

the engine is warm, with a clean air lter and properly

installed guide bar and chain.

Use a screwdriver (4 mm blade) for idle adjustments.

Adjusting the idle speed

Turn adjusting screw (S) counter-clockwise (unscrew):

Idle speed decreases.

Turn adjusting screw (S) clockwise (screw in): Idle speed

increases.

Important: If the saw chain still moves during idle even

after you have adjusted the idle speed, do NOT use the

saw. Take it to a MAKITA service center!

Note:

Carburetor adjustment aids in proper functioning, eco-

nomical consumption, and safe operation.

Because of new exhaust regulations, the carburetor adjust‑

ing screw (H) now comes with a limit feature. The reduced

adjustment range (about 180 degrees) prevents excessive‑

ly rich carburetor settings. On some models, the adjusting

screw (H) is locked. This ensures compliance with exhaust

regulations, as well as good engine functioning and eco‑

nomical fuel consumption.
