Makita ea3202s40b [27/40] Service

3 2

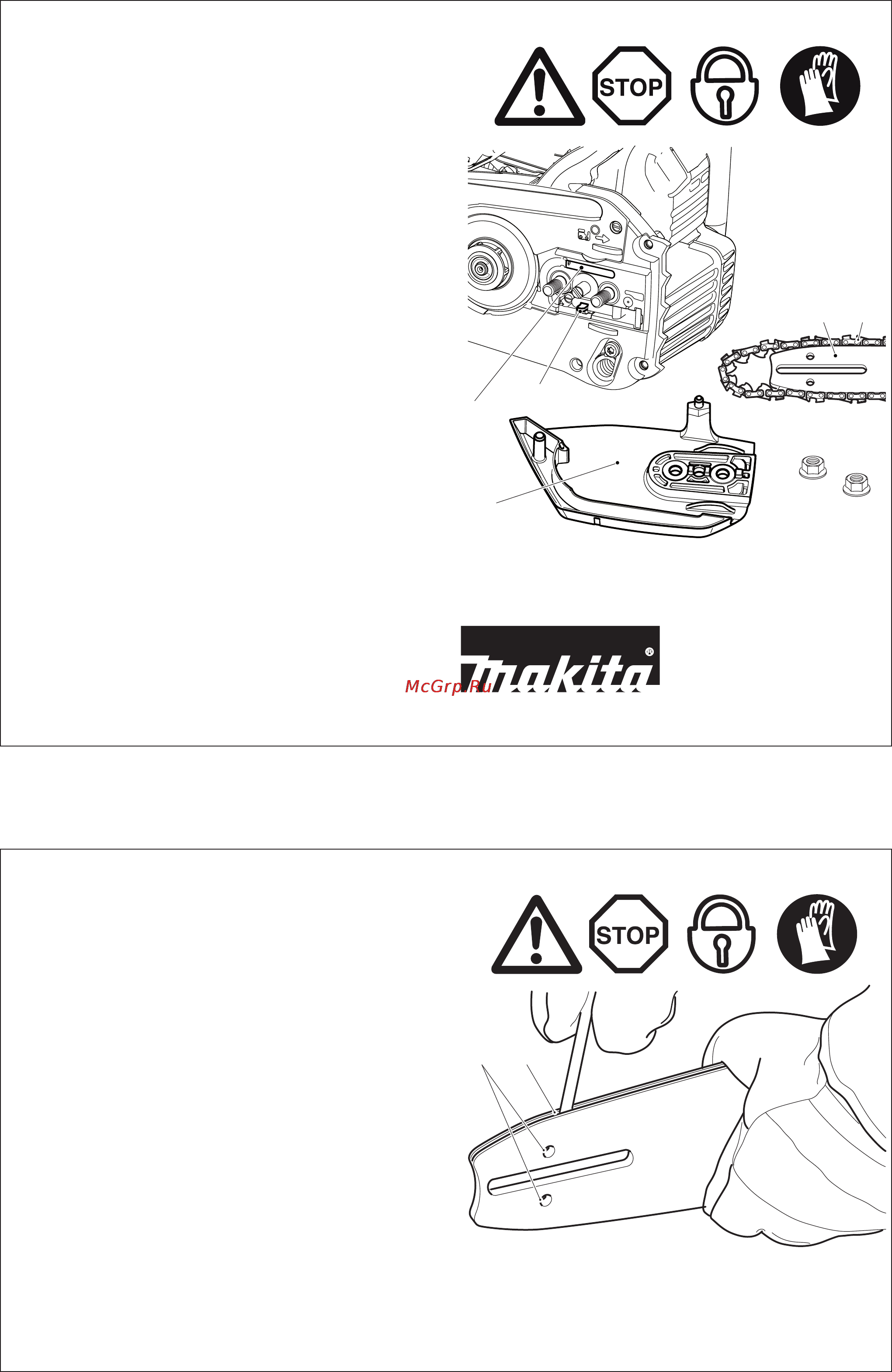

Cleaning the inside of the sprocket guard

CAUTION: Before doing any work on the guide bar or

chain, always switch o the engine and pull the plug

cap o the spark plug (see “Replacing the spark plug”).

Always wear protective gloves!

CAUTION: Start the chain saw only after having as-

sembled it completely and inspected.

Remove the sprocket guard (1) (see PUTTING INTO OP‑

ERATION for the correct model) and clean out the interior

with a brush.

Remove the chain (2) and guide bar (3).

NOTE:

Make sure there are no residues or foreign matter remaining

in the oil guide groove (4) or on the chain tensioner (5).

To install the guide bar, saw chain, and sprocket guard, see

PUTTING INTO OPERATION for the correct model.

NOTE:

The chain brake is a very important safety device and

like any other component subject to normal wear and

tear.

Regular inspection and maintenance are important for

your own safety and must be done by a MAKITA service

center.

SERVICE

Cleaning the guide bar

CAUTION: Protective gloves must be worn.

Regularly inspect the bearing surfaces of the guide bar (7)

for damage, and clean them with a suitable tool.

Keep the two oiling holes (6) and the entire guide bar clean

and free of foreign matter!

6 7
