Makita ea3202s40b [28/40] Replacing the saw chain

Check the sprocket before mounting a new chain.

Worn out sprockets (8) may damage the new chain and must

therefore be replaced.

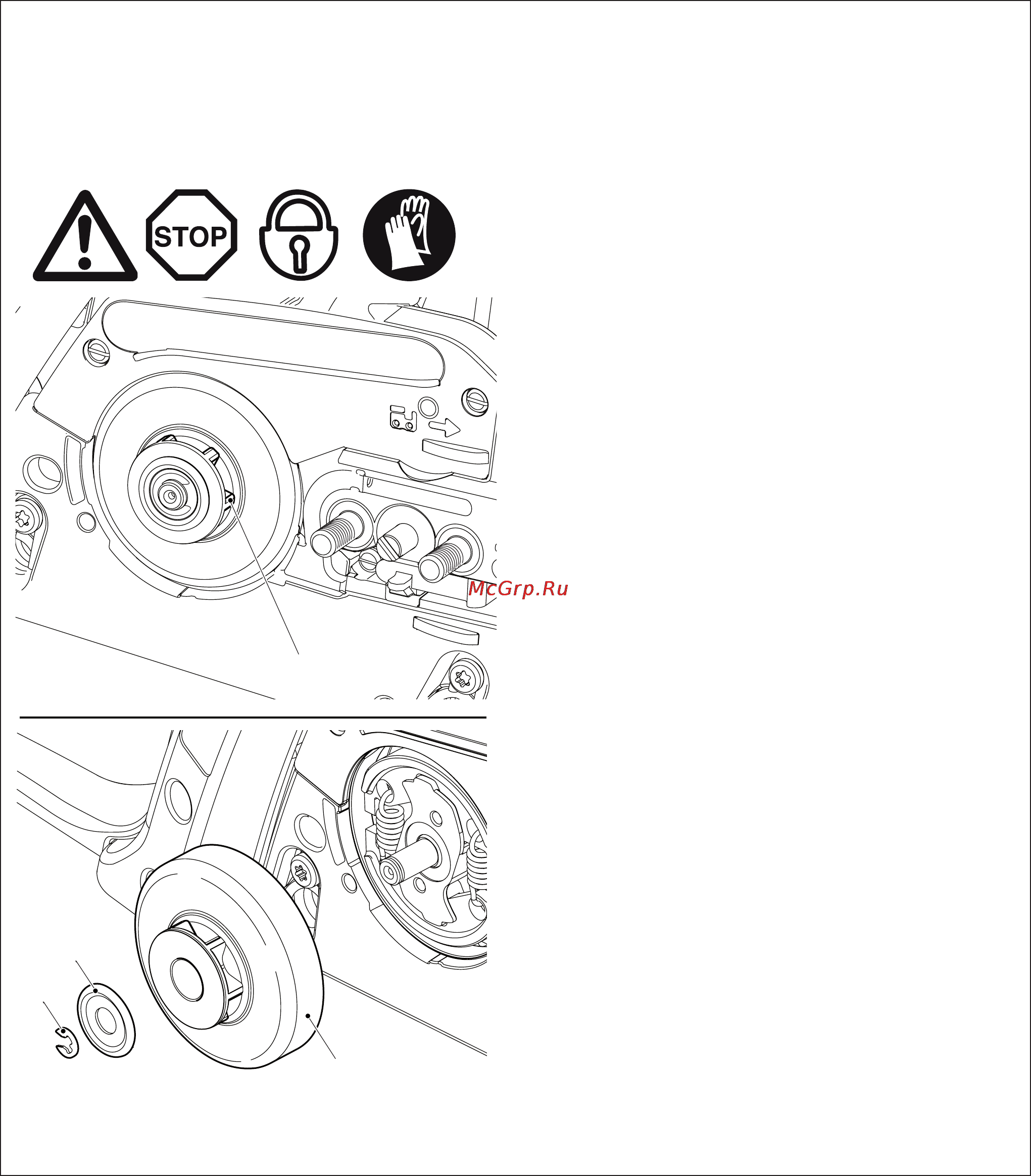

Remove the sprocket guard (See “PUTTING INTO OPERA‑

TION”).

Remove the chain and guide bar.

Remove circlip (9).

CAUTION: The circlip will pop out of the groove. When

removing it, hold your thumb against it to prevent it from

popping o.

Remove thrust washer (11).

If the sprocket (8) is worn out, the complete clutch drum (12)

will need to be replaced (for the part number, see “Extract

from the spare parts list”).

Install a complete new clutch drum (12), cup washer (11)

and new circlip (9) (for the part numbers, see “Extract from

the spare parts list”).

For replacing the guide bar, chain, and sprocket see “PUT‑

TING INTO OPERATION”.

NOTE:

Don’t use a new chain on a worn chain sprocket. By the

time 2 chains have worn, the sprocket has become worn

out, so it should be replaced at least at every second chain

replacement. To distribute the chain oil evenly, run a new

chain at half‑throttle for a few minutes before use.

New chains stretch, so check the chain tension frequently

(see “Checking the chain tension”).

Replacing the saw chain

CAUTION: Use only chains and guide bars designed for this saw (see the Extract from the spare‑parts list)!
