P a g e | 23

GXV3240 User Guide

GXV3240 Phone Setup

The GXV3240 can be installed on the desktop using the built-in stand or attached on the wall using the

slots for wall mounting.

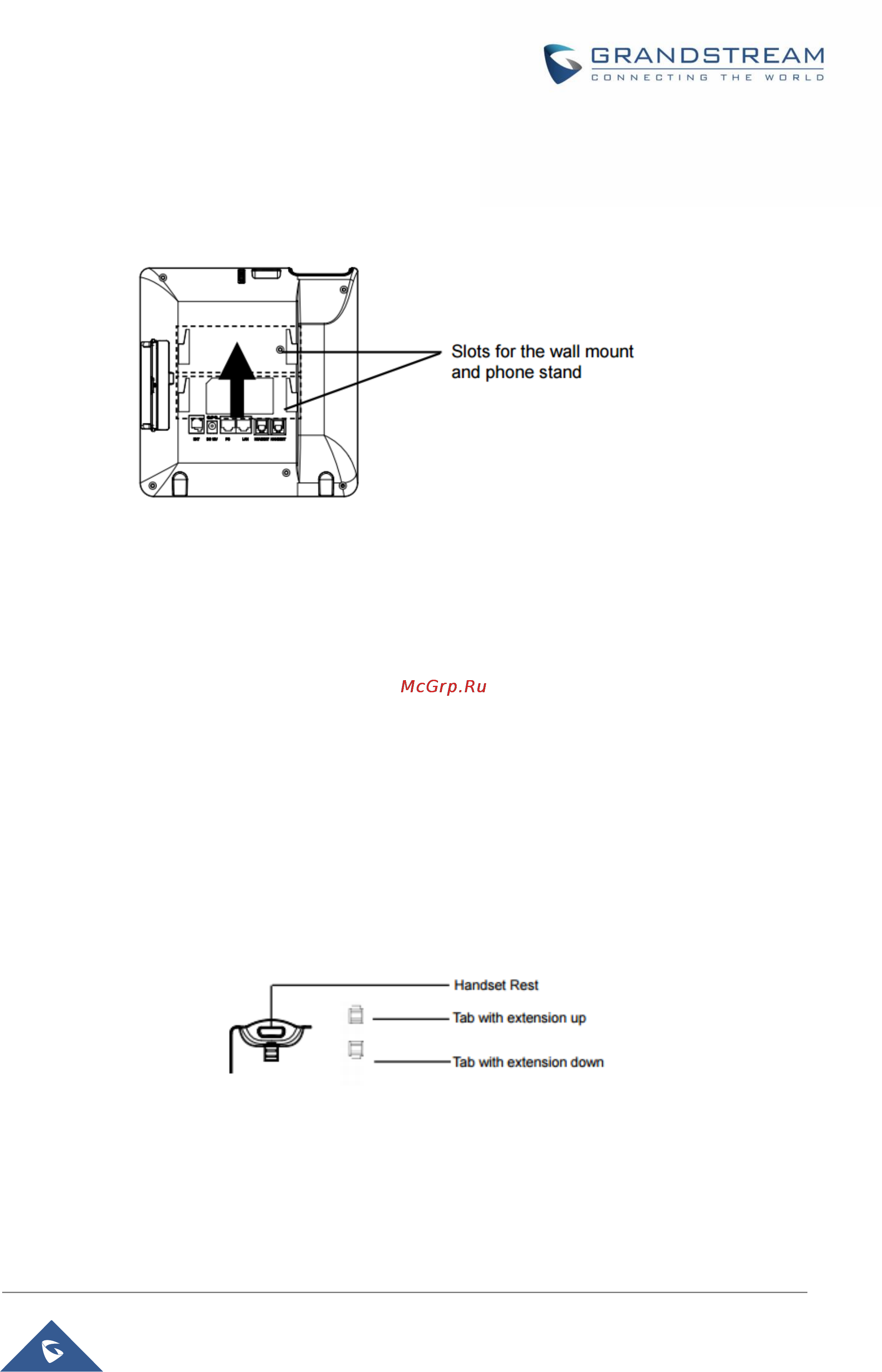

Figure 2: Slots for the wall mount and phone stand on the GXV3240.

Using the phone stand

The GXV3240 has a built-in phone stand. To set up the GXV3240 as your desk phone, follow the steps

below:

1. Attach the phone stand to the back of the phone where there is a slot for the phone stand. Upper part

and bottom part are available for two angles;

2. Connect the handset and main phone case with the phone cord;

Using the slots for wall mounting

1. Attach the wall mount to the slots on the back of the phone;

2. Attach the phone to the wall via the wall mount hole;

3. Pull out the tab from the handset cradle (see figure below);

4. Rotate the tab and plug it back into the slot with the extension up to hold the handset while the

phone is mounted on the wall.

Figure 3: Tab on the handset cradle.
