X10SRL-F User’s Manual
X10SRL-F Jumpers
Jumper Description Default
JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 CMOS Clear See Chapter 2
JI
2
C1/JI
2
C2 SMB to PCI-E Slots Pins 2-3 (Disabled)
JPB1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable Pins 1-2 (Enabled)
JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)
JPME2 Manufacture Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Enable Pins 1-2 (Reset)

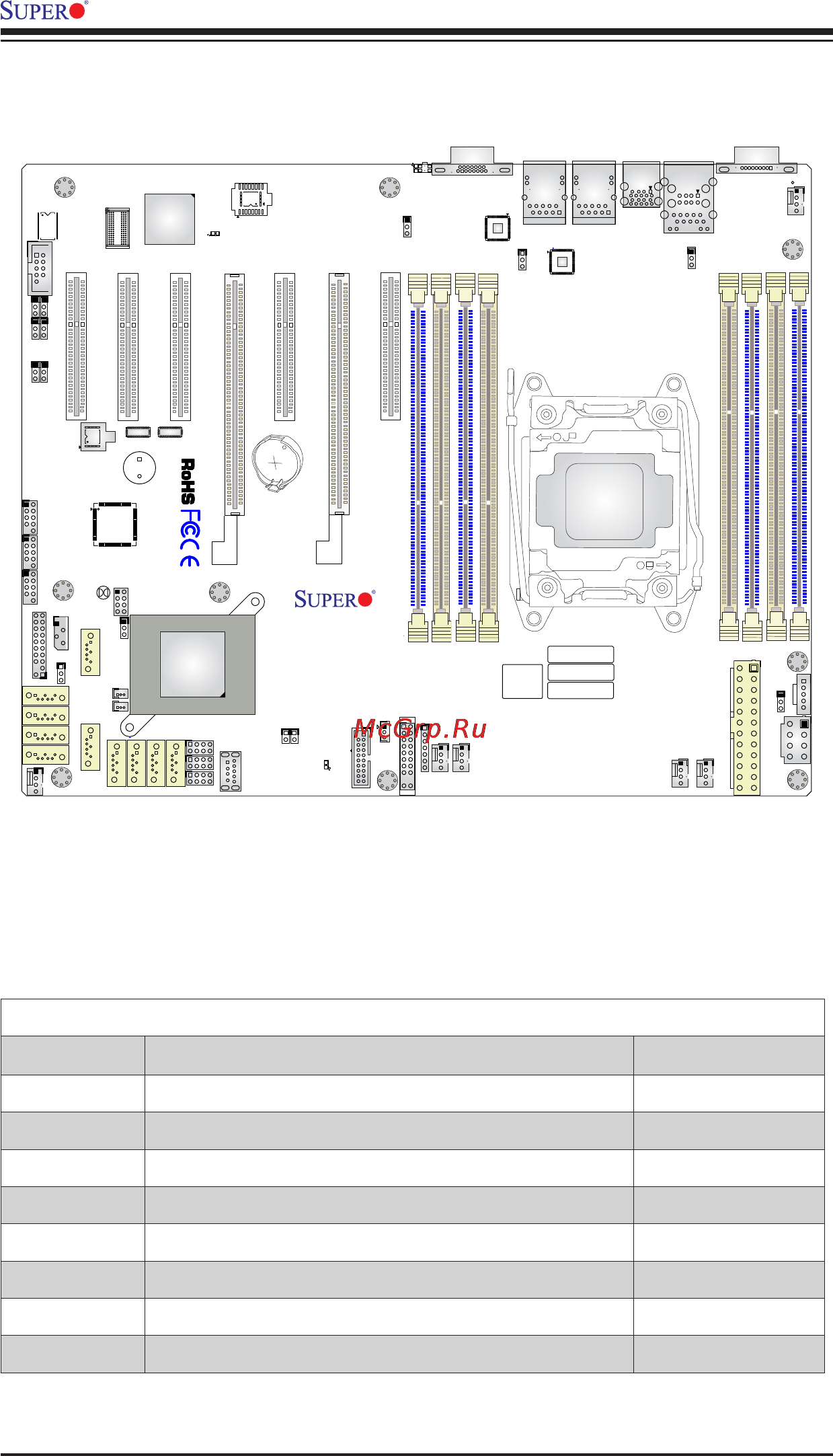

X10SRL-F Quick Reference
BIOS LICENSE
IPMI CODE
MAC CODE
BAR CODE
DESIGNED IN USA
1.01Rev:
X10SRL-F
1
+
LAN
CTRL
LAN
CTRL
BMC
JP3
JTPM1
JF1
JD1
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
JI2C2
JI2C1
JBR1
JPL2
JPL1
JVR1
JSD1
JSD2
JIPMB1
JPWR1
UID LED - LE1
LE2
LEDM1
JBT1
BT1
FAN4
FAN1
FAN2
FAN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I_SATA4
I-SATA0
I-SATA1I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
CPU
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X8(IN X16)
USB0/1
DIMMC2
USB8/9
USB6/7
USB2/3(3.0)
LAN1
DIMMA2
DIMMA1
USB10(3.0)
LAN2
USB4/5
CPU SLOT2 PCI-E 3.0 X4(IN X8)
PCH SLOT1 PCI-E 2.0 X4(IN X8)
COM2
COM1
DIMMB2
DIMMB1
DIMMD2
DIMMD1
IPMI_LAN
UID - SW
5V STBY
USB11(3.0)
IPMI
VGA
CPU SLOT7 PCI-E 3.0 X8
DIMMC1
CPU SLOT3 PCI-E 3.0 X4(IN X8)
CPU SLOT6 PCI-E 3.0 X8(IN X16)
Intel PCH
1
1
Содержание
- Printed in the united states of america 2
- Warning handling of lead solder materials used in this product may expose you to lead a chemical known to the state of california to cause birth defects and other repro ductive harm 2
- About this motherboard 3
- Manual organization 3
- Preface 3
- Conventions used in the manual 4
- Contacting supermicro 5
- Chapter 1 introduction 6
- Chapter 2 installation 6
- Preface 6
- Table of contents 6
- Chapter 3 troubleshooting 8
- Chapter 4 bios 8
- Appendix a bios error beep codes 12
- Appendix b software installation instructions 12
- Appendix c uefi bios recovery instructions 13
- Appendix d dual boot block on grantley platforms 13
- 1 overview 15
- Chapter 1 15
- Checklist 15
- Introduction 15
- Chapter 1 introduction 17
- Indicates the location of pin 1 17
- Jumpers not indicated are for testing only 17
- Panel connections 17
- See chapter 2 for detailed information on jumpers i o ports and jf1 front 17
- Unplug the power cable before installing or removing any components 17
- When the onboard power led indicator le2 is on system power is on 17
- X10srl f 17
- X10srl f motherboard layout 17
- C2 smb to pci e slots pins 2 3 disabled 18
- Jbr1 bios recovery pins 1 2 normal 18
- Jbt1 cmos clear see chapter 2 18
- Jpb1 bmc enable disable pins 1 2 enabled 18
- Jpg1 vga enable pins 1 2 enabled 18
- Jpl1 jpl2 lan1 lan2 enable pins 1 2 enabled 18
- Jpme2 manufacture mode select pins 1 2 normal 18
- Jumper description default 18
- Jwd1 watch dog enable pins 1 2 reset 18
- X10srl f 18
- X10srl f jumpers 18
- X10srl f quick reference 18
