4-3

Chapter 4: Chassis Setup and Maintenance

4-3 Rotating the Hard Drive Cage

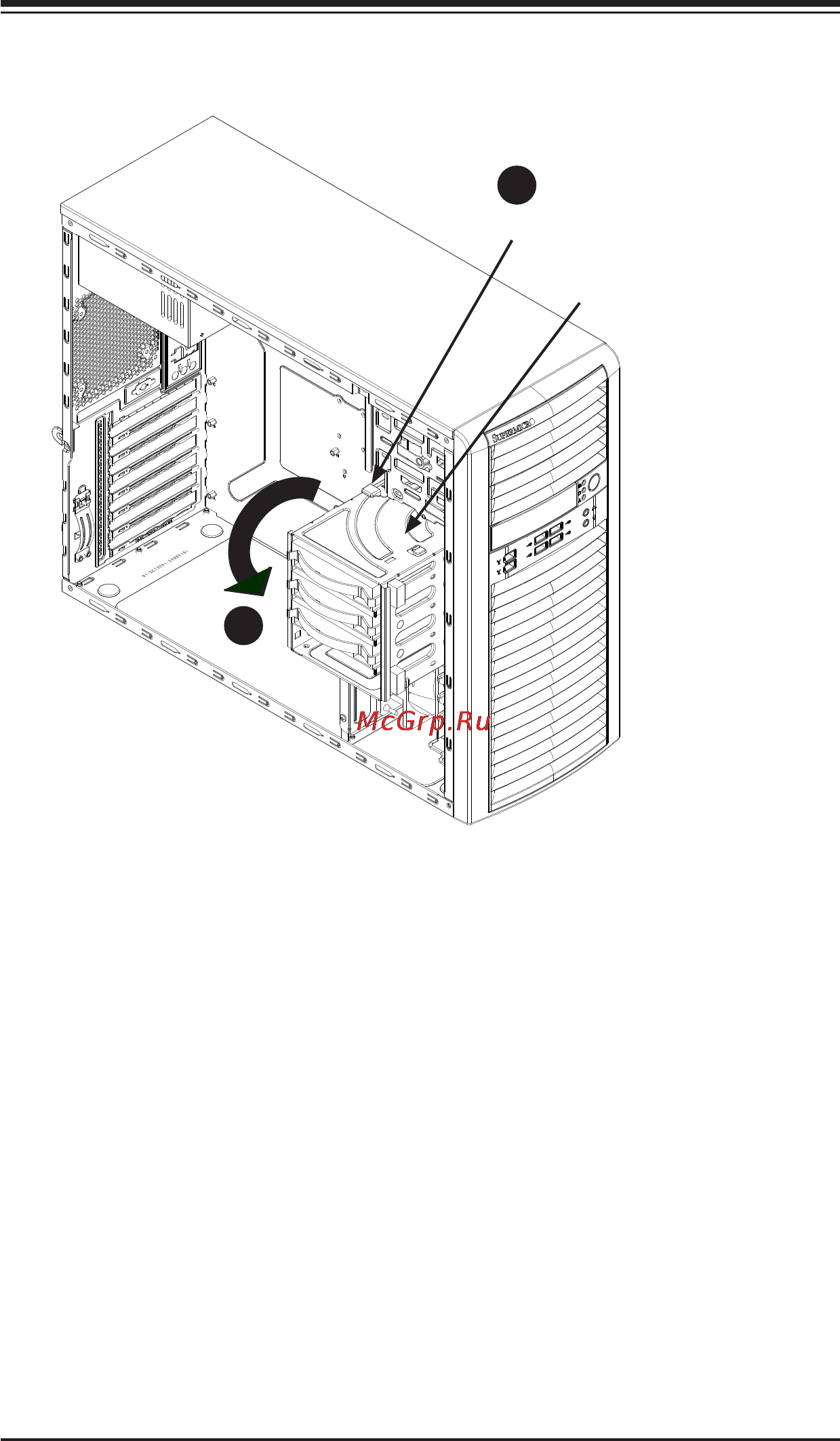

Figure 4-2: Rotating the Hard Drive Cage

In order to access and install components in the chassis interior, it is necessary

to rotate the hard drive cage (B). This will provide sufcient room to install and

congure the chassis components.

Rotating the Hard Drive Cage

Disconnect the chassis from any power source. 1.

Lift the release tab (A).2.

Rotate the hard disk drive cage (B) outward.3.

Release Tab (A)

HDD Cage (B)
