4-11
Chapter 4: Chassis Setup and Maintenance
4-7 Installing a 3.5" Device (Optional)
The SC732D chassis has one 3.5" device slot, which supports an optional device,
such as an all-in-one card reader.
Installing a 3.5" Device
Remove the front bezel from the chassis by lifting it upwards from the bottom, 1.
and pulling off the front of the chassis.
Remove the cover plate from the 3.5" device slot on the front of the chassis.2.
Install the bracket rail (A) onto one side of the 3.5" device, by inserting the 3.
pins of the bracket into the mounting holes on the sides of the optical device.
Slide the 3.5" device into the chassis.4.
See Section 4-10 Installing the Front Bezel.5.
4
1
3
1
2
1
1

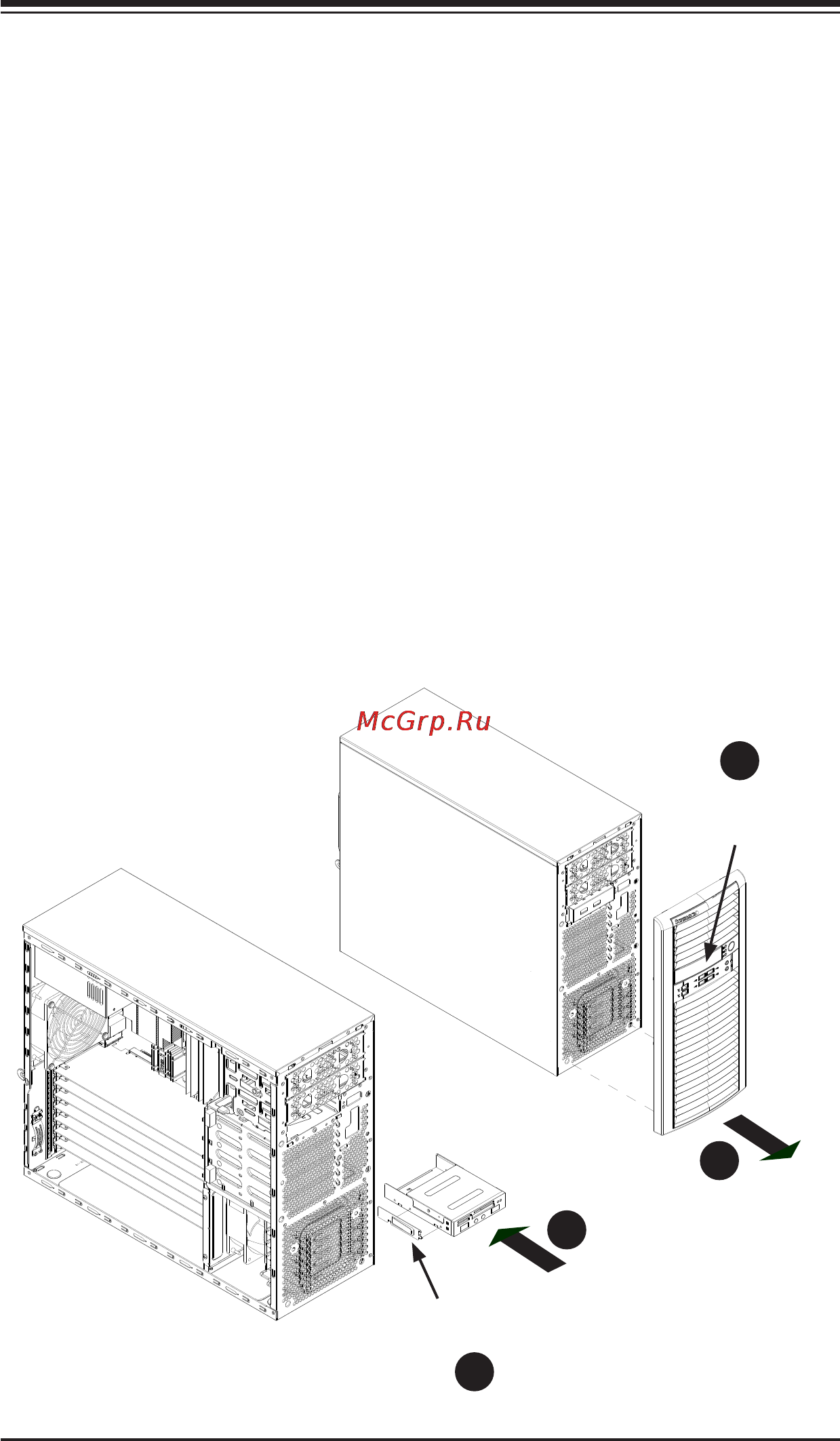

Figure 4-10: Installing the 3.5" Device
Bracket
Rail (A)
Remove
Cover Plate
