Zotac zboxnano-id62-be [14/26] Installing a memory module
![Zotac zboxnano-id62-be [14/26] Installing a memory module](/views2/1192523/page14/bge.png)
13
ZOTAC ZBOX nano

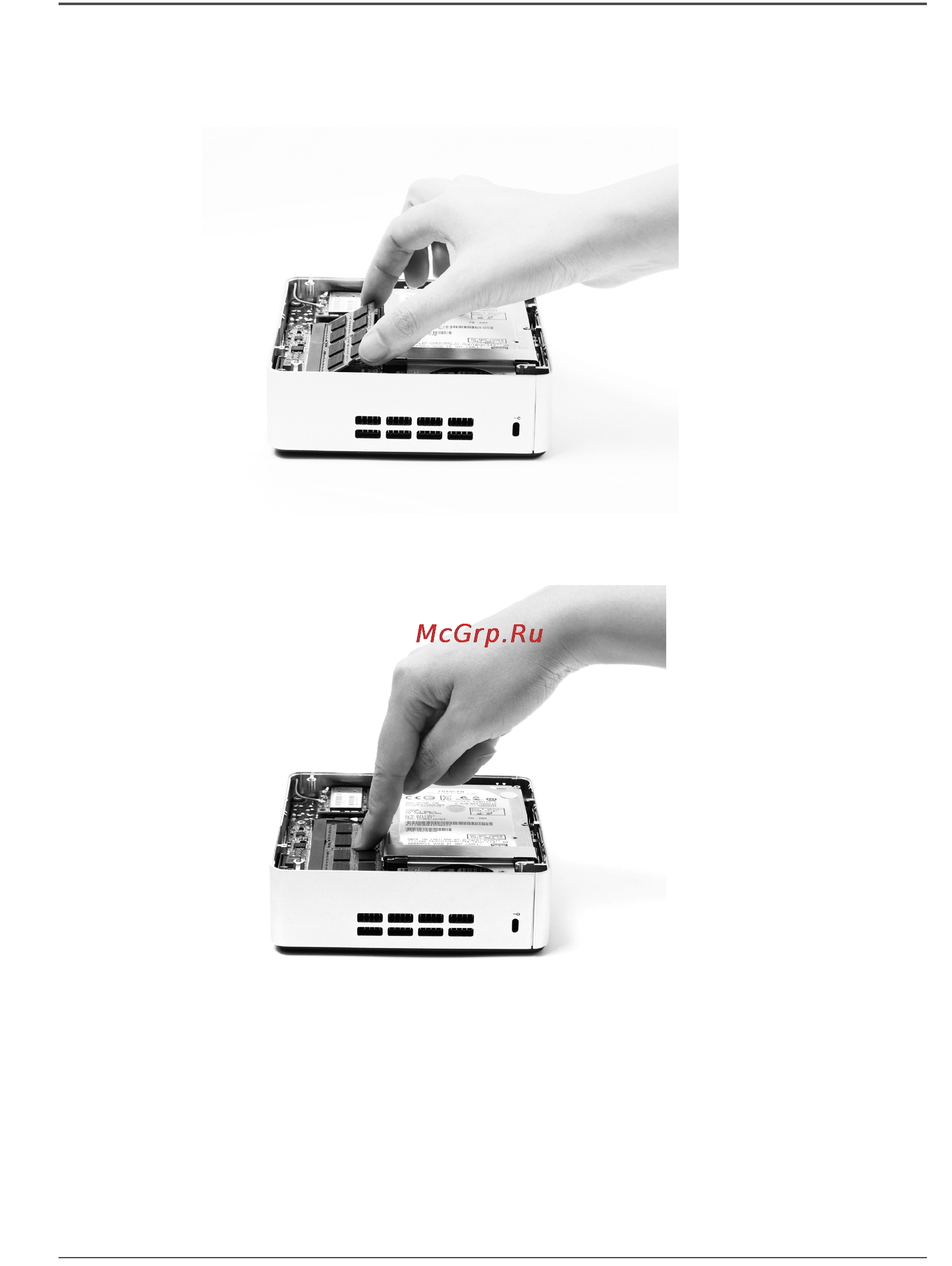

Installing a memory module
1. Locate the SO-DIMM memory slot and insert a SO-DIMM memory module
into the slot at a 45 degree angle.
2. Gently press down on the memory module until it locks into place by the arms
of the memory slot.
