16
ZOTAC ZBOX nano

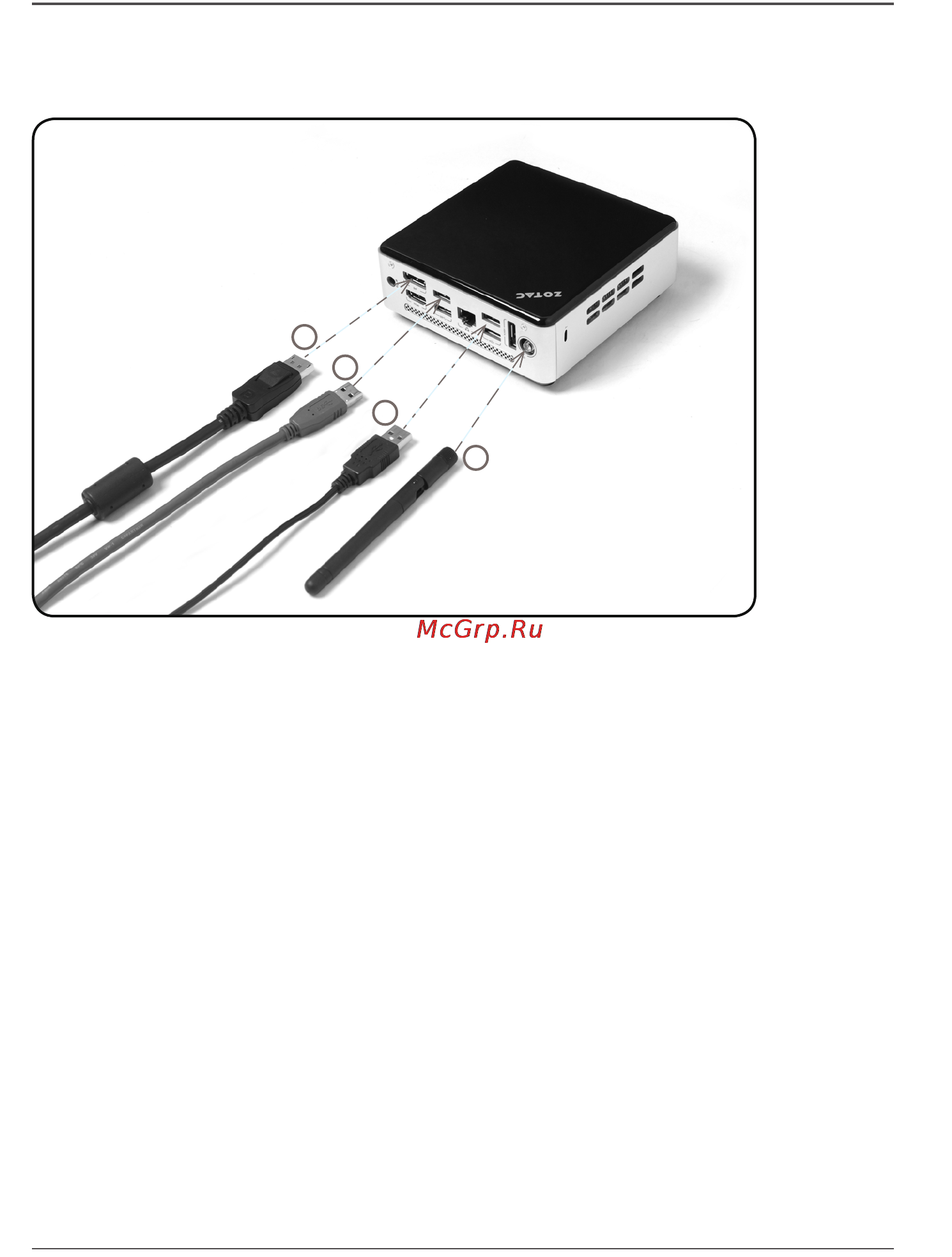

Setting up the ZOTAC ZBOX nano
Please connect your peripherals before using your ZOTAC ZBOX
1. Connecting a DisplayPort display
Connect the DisplayPort connector to the DP port.
2. Connecting USB 3.0 device
Connect USB 3.0 devices such as external hard drives, SSDs and ash drives to
the USB 3.0 port.
3. Connecting USB 2.0 device
Connect USB 2.0 devices such as wired/wireless keyboards, mice and printers to
the USB 2.0 ports.
4. Connecting the WiFi antenna module
Connect the WiFi antenna module to the WiFi antenna connector.
1
2
3
4
