ZOTAC ZBOX nano

Getting to know your ZOTAC ZBOX nano

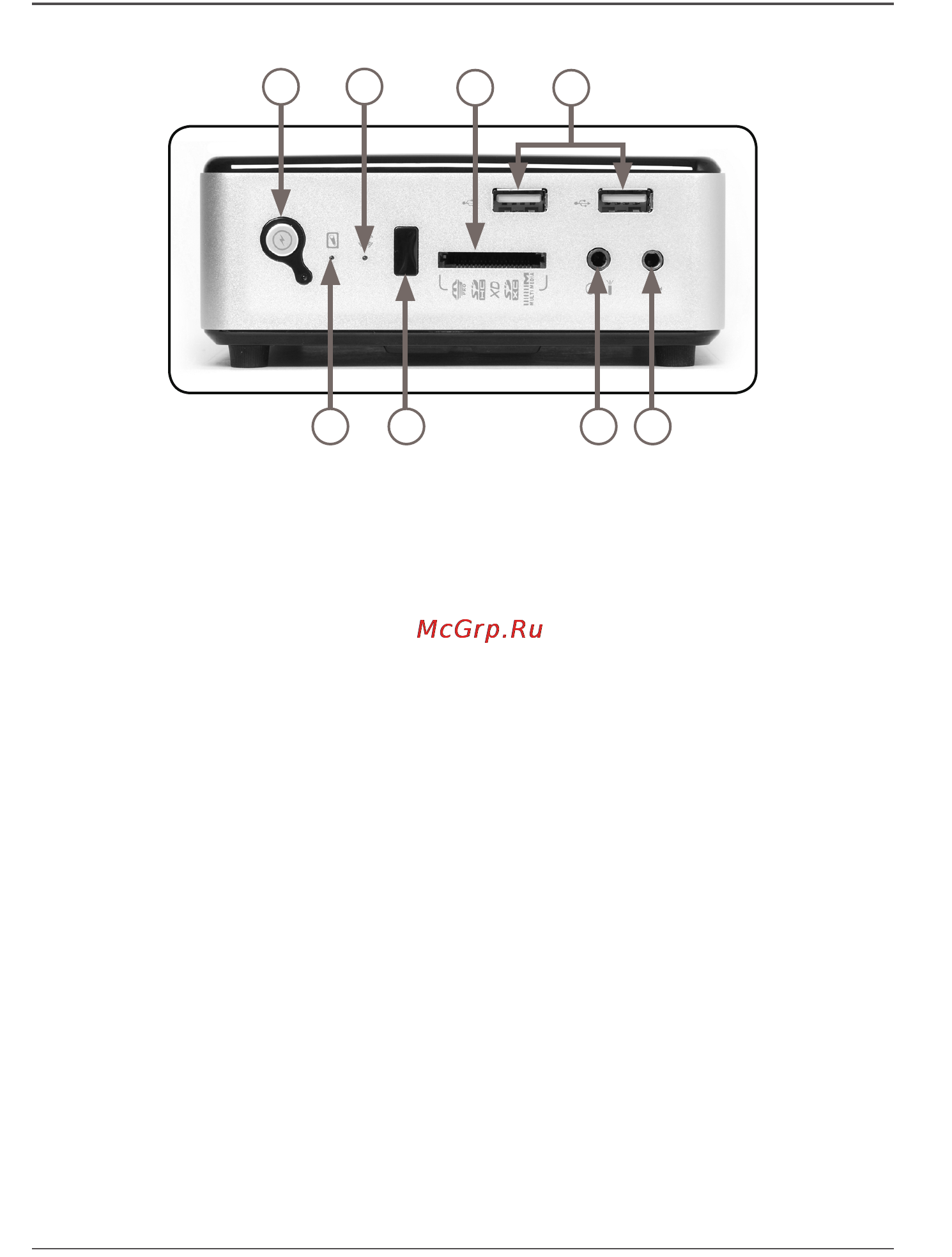

Front view

Refer to the diagram below to identify the components on this side of the system

1. Power switch

The power switch turns the mini-PC ON and OFF.

2. HDD status indicator

The hard disk LED blinks when data is being written onto or read from the hard

disk drive

3. WiFi status indicator

The WiFi LED blinks when data is being transfered over WiFi.

4. IR receiver

The IR receiver is used to receive signals from the IR remote control.

5. Memory card slot

The built-in memory card reader reads and writes MMC/SD/SDHC/MS/MS Pro/

xD/SDXC cards used in devices such as digital cameras, MP3 players, mobile

phones and PDAs.

6. Headphone / mini-Optical S/PDIF jack

The headphone / mini-Optical SPDIF jack (3.5mm) is used to connect the

system’s audio output to amplied speakers or headphones. It supports mini-

Optical S/PDIF output with the included mini-Optical S/PDIF adapter. The optical

S/PDIF output enables connectivity with digital audio receivers and speakers for

crystal clear digital audio and surround sound from compatible soundtracks.

7. USB 2.0 ports

The USB (Universal Serial Bus) ports are compatible with USB devices such as

keyboards, mice, cameras and hard disk drives.

8. Microphone jack

The microphone jack is designed to connect a microphone for video conferencing,

voice narrations or simple audio recordings.

Note 1: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

Note 2: Due to the unique tool-less customizable design, some connectors are placed upside down.
