15
ZOTAC ZBOX nano

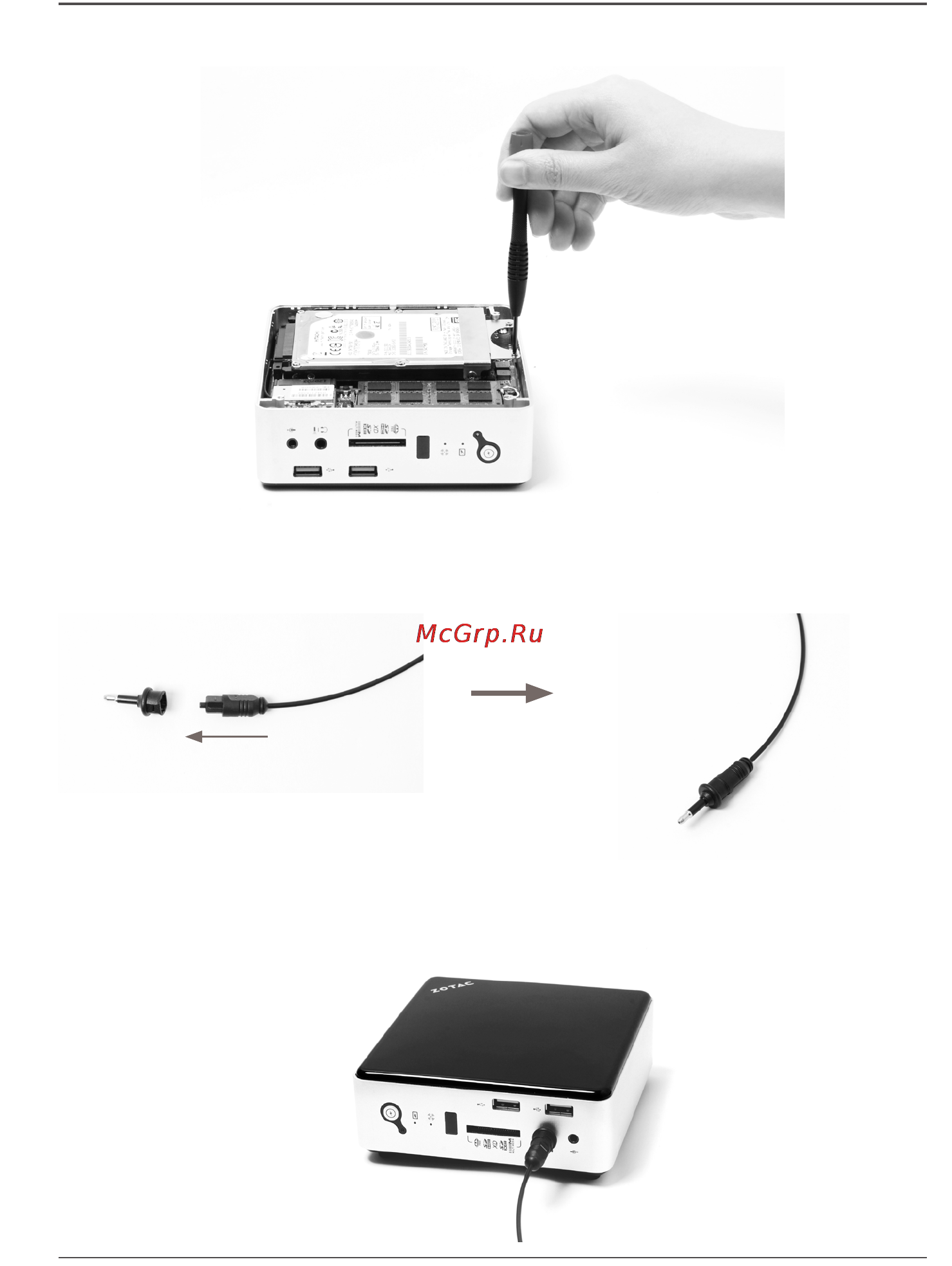

4. Reinstall the screws for the hard disk bracket.
Connecting a S/PDIF cable
1. Connect the S/PDIF cable to the mini-Optical S/PDIF adapter.
2. Locate the front panel and connect the mini-Optical S/PDIF adapter to the
headphone / mini-Optical S/PDIF jack.
