7
ZOTAC ZBOX nano
Rear view

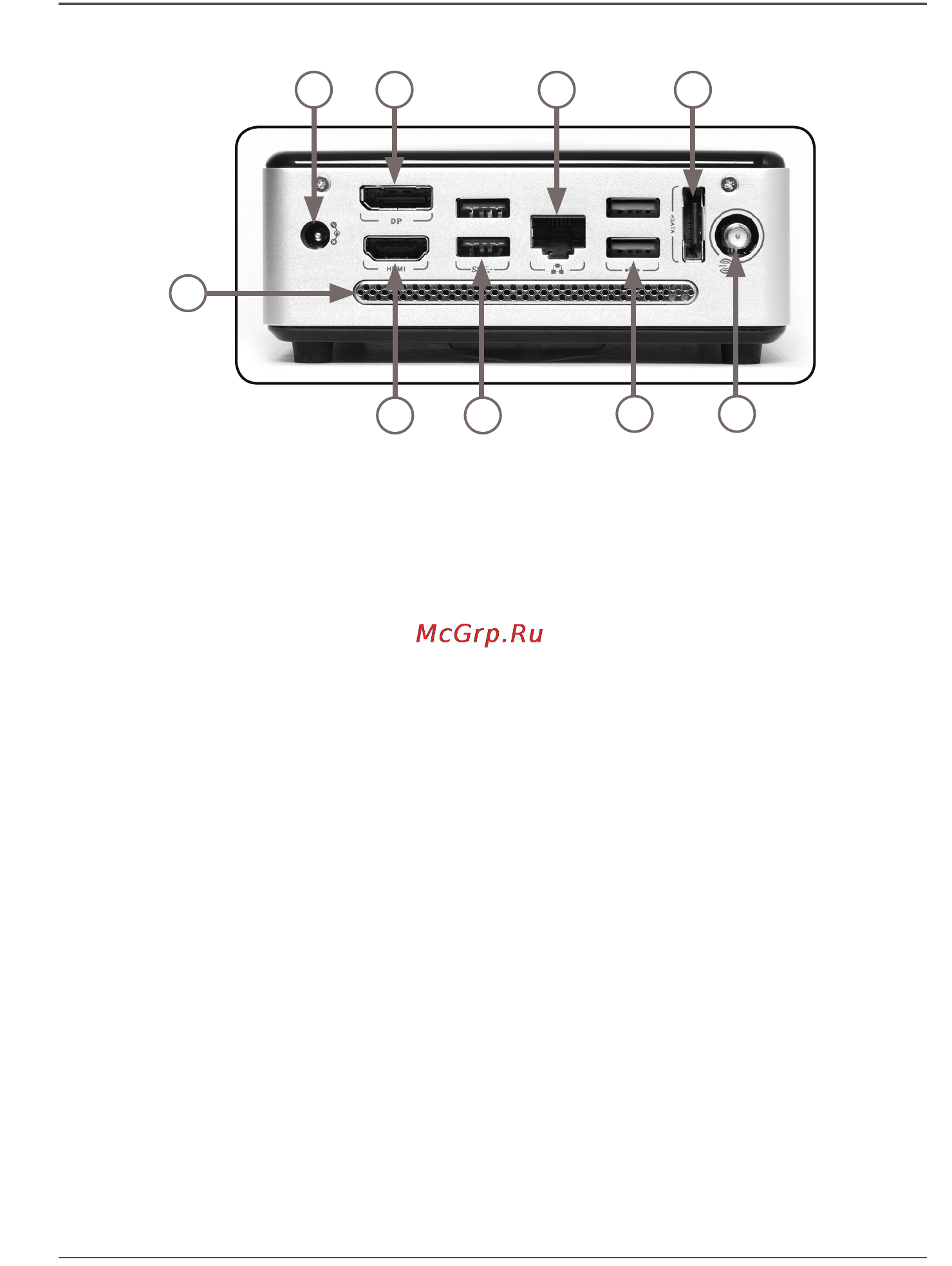

Refer to the diagram below to identify the components on this side of the system.
1. Power input (DC19V)
The supplied power adapter converts AC power to DC power for use with this
jack. Power supplied through this jack supplies power to the mini-PC. To prevent
damage to the mini-PC, always use the supplied power adapter.
2. HDMI output
The HDMI (High Denition Multimedia Interface) output supports Full HD 1080p
displays such as an HDTV or monitor.
3. DisplayPort
The DisplayPort output supports displays with resolutions up to 2560x1600.
4. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards
compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for
maximum performance with USB 3.0 compatible devices.
5. Ethernet port
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to
a local area network (LAN) with speeds of 10/100/1000Mbps.
6. USB 2.0 ports
The USB (Universal Serial Bus) ports are compatible with USB devices such as
keyboards, mice, cameras and hard disk drives.
7. eSATA port
The external SATA port is compatible with e.SATA devices such as external hard
drives and Blu-ray drives.
8. WiFi antenna connector
The WiFi antenna connector supports the included WiFi antenna.
9. Ventilation area
The ventilation area is vital for proper system cooling. Do not cover.
