Zotac zboxnano-id62-be [20/26] Ir receiver
![Zotac zboxnano-id62-be [20/26] Ir receiver](/views2/1192523/page20/bg14.png)
19
ZOTAC ZBOX nano
3. Connect the ZOTAC ZBOX nano to your LCD monitor with an HDMI/DP cable.

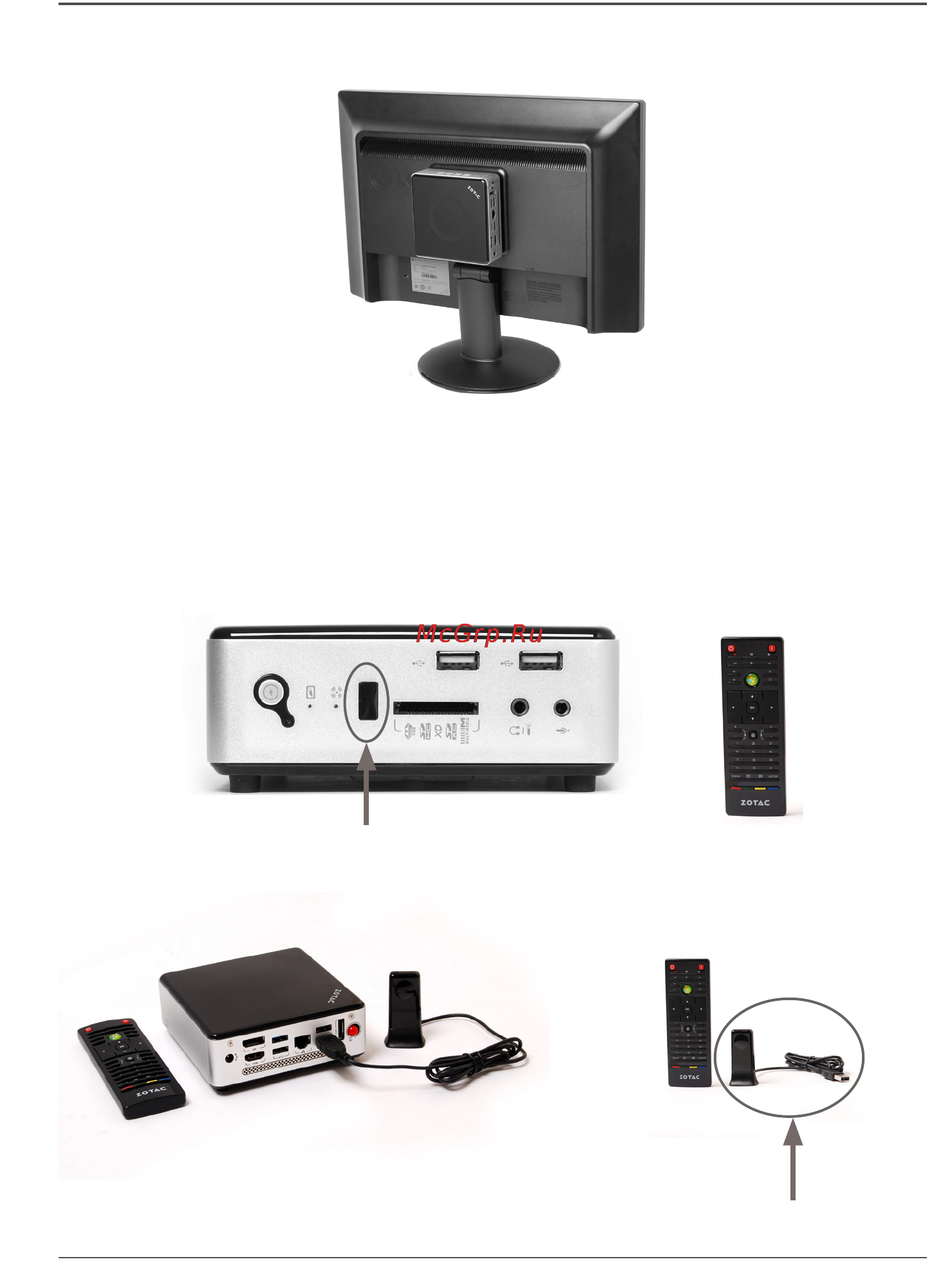

Integrated IR receiver
External USB IR receiver
2. External USB IR receiver (please connect the external USB IR receiver to a
USB 2.0 port)
IR receiver
Users can control compatible applications with the integrated IR receiver or included
external USB IR receiver.
1. Integrated IR receiver
Note: Please install CIR driver from DVD before using the integrated IR
receiver.
