ProControl 1KS
Инструкция по эксплуатации Страница: 110

Graco ProControl 1KS [110/138] Procontrol 1ks recipe fill chart 4 0 to y

Color Change

110 3A1080F

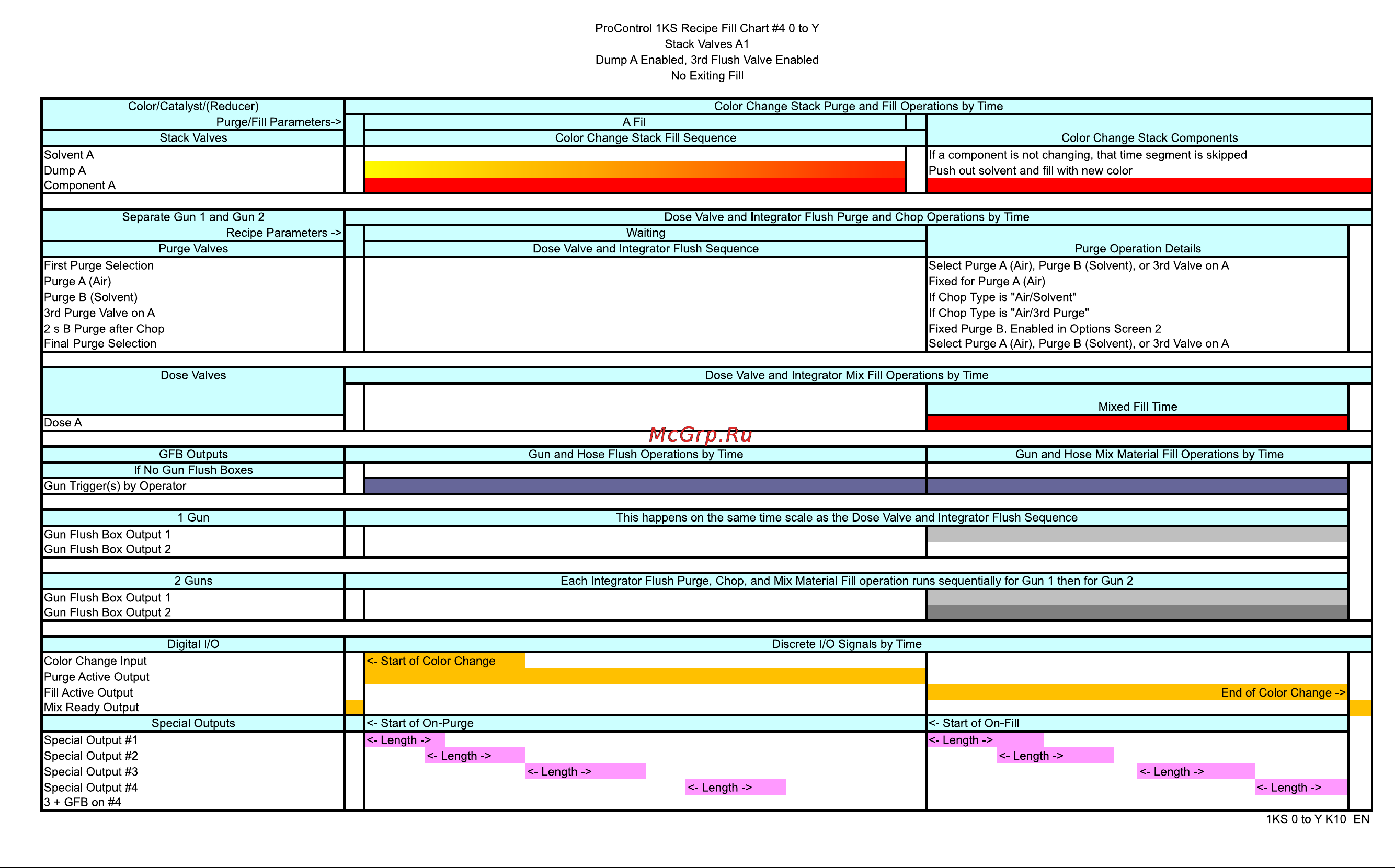

FIG. 113: ProControl 1KS Recipe Fill Chart #4 0 to Y
