Setup Mode
30 3A1080F
Configure Screen 3
1K/2K/3K
Set this value to indicate the system performance level
designation. Selecting a value other than the installed
system level will result in restricted functionality.
Run Mode
NOTE: If an Autokey is installed, additional selections of
Semi-Automatic and Automatic are available.
Select the Run mode application from the pulldown
menu: Automatic, Semi-Automatic (uses a manual
spray gun), or Manual.
Dump Valve A
This field only appears if the color change option is
detected from the cc board. Select “On” if an optional
Dump Valve A is installed and desired to be used.
3rd Flush Valve
Off is default. If optional 3rd flush valve is used, set to
On.
Configure Screen 4
Dose Time Alarm
Enter the dose time (1 to 99 seconds). This is the
amount of time allowed for a dose to occur before a
dose time alarm occurs.
Configure Screen 5
Flow Control
This field only appears if Run Mode is set to “Automatic”
in Configure Screen 3, page 30. Select “On”, “Off”, or
“On: Setup”.
If set to “On” Advanced Setup Screen 5, page 37 and
Advanced Setup Screen 6, page 38 are added.
If set to “On: Setup” Advanced Setup Screen 5, page
37 and Advanced Setup Screen 6, page 38, and
Advanced Setup Screen 7, page 38 are added.
F

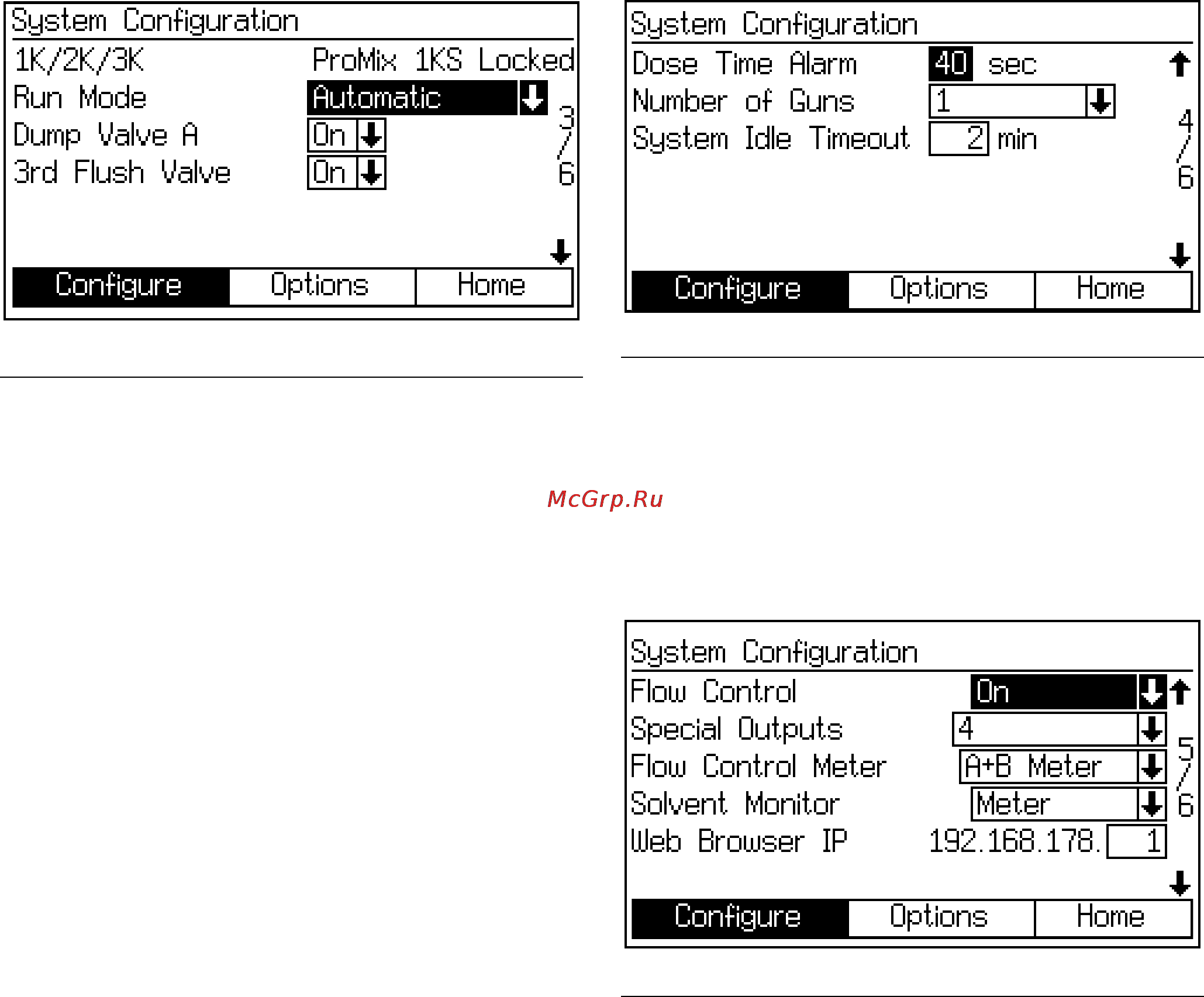

IG. 29. Configure Screen 3
FIG. 30. Configure Screen 4
F
IG. 31. Configure Screen 5
