Setup Mode
46 3A1080F
Recipe 0 Screen 3
This screen only appears if Solvent Monitor is set to
“Meter” in Configure Screen 5, page 30 and Flush Vol-
ume Check is set to “On” in Option Screen 1, page 32
or 3rd Flush Valve is set to “On” in Configure Screen 3
on page 30.
Minimum Flush Volume
This field only appears if Flush Volume Check is set to
“On” in Option Screen 1 on page 32. Enter the mini-
mum flush volume (0 to 9999 cc).
Exiting Fill Source
This field only appears if 3rd Flush Valve is set to “On” in
Configure Screen 3 on page 30. Select “Off,” “Air,”
“Solvent,” or “3rd Valve.”
Exiting Fill Time
This field only appears if Exiting Fill Source is set to
“Air,” “Solvent,” or “3rd Valve.” Enter the time in sec-
onds.
Recipe 0 Screen 4
This screen appears only if Flush and Fill Input is set to
“Recipe” in Option Screen 1, page 32 and Special Out-
puts is set to 1, 2, 3, or 4 in Configure Screen 5, page
30. The I/O board has four programmable outputs.
On-Purge
Delay time at the start of the purge cycle before the Spe-
cial Output turns on.
Length
Duration for the Special Output to be active during the
purge cycle.
On-Fill
Delay time at the start of the fill cycle before the Special
Output turns on.
Length
Duration for the Special Output to be active during the
fill cycle.
F

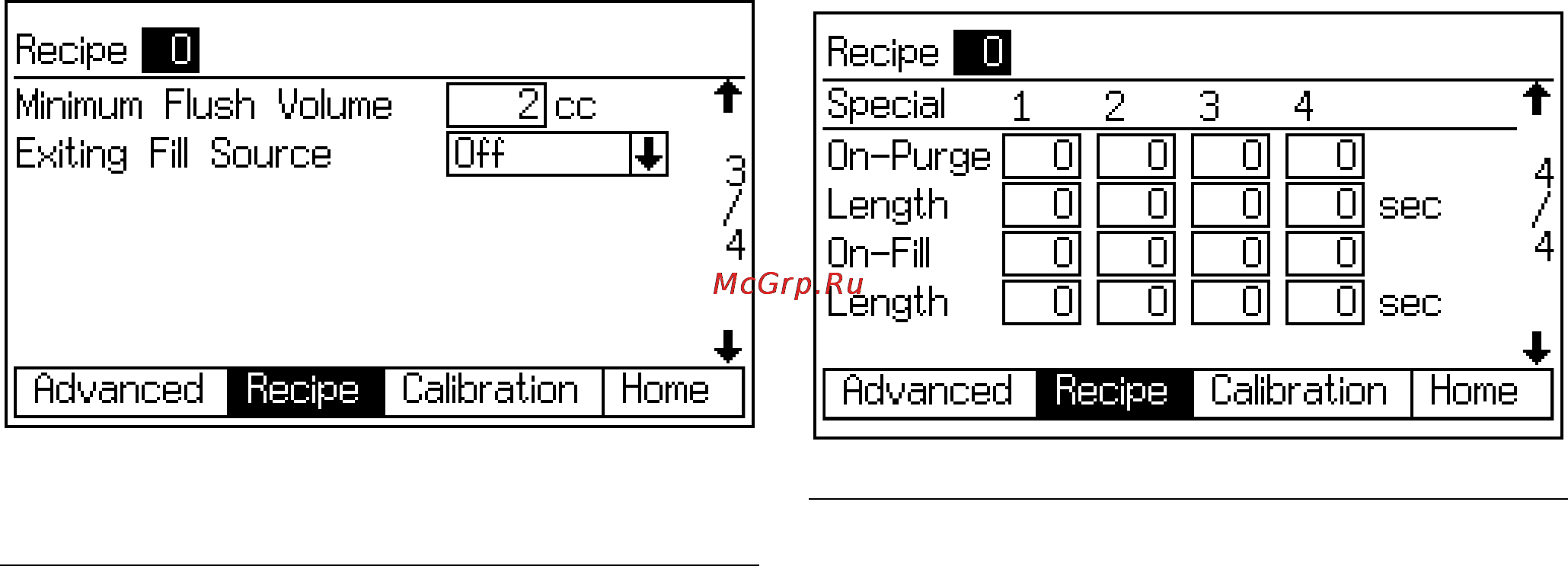

IG. 57. Recipe 0 Screen 3
FIG. 58. Recipe 0 Screen 4
