Integrated Flow Control
3A1080F 83
Flow Control Setup
1. Install the intrinsically safe flow regulator (FC) as
explained in the ProControl 1KS Installation Manual.
2. Ensure that the analog signal is 0-10 Vdc, or is
properly provided through network communication.
3. Calibrate the system’s flow meters; see page 102.
This ensures that the K-factors are tuned to the
range of materials being used.
4. Verify that the I/O inputs are working properly. If
using discrete I/O, check by viewing Advanced
Setup Screen 6 and Advanced Setup Screen 7,
page 38. If using network communication, ensure
the commands are being sent by viewing the Status
Screen, page 21, and Advanced Setup Screen 6
and Advanced Setup Screen 7, page 38, for
inputs.
NOTE: See the Graco Gateway manual for Flow Control
Modbus addresses.
5. See Flow Control Startup.
Flow Control Startup
1. Set Flow Control to “On: Setup” in Configure
Screen 5.
2. In Advanced Setup Screen 1, turn Manual Over-
ride “On: EK”. This sets the override control source
as the EasyKey. The Flow Control Override field will
appear. The other option, “On: Ext” is used for par-
tial control by a PLC robot.
3. Set Flow Control Override to % Open. See F
IG. 89
and Table 12. On the Manual Override Screen, the
Flow Set Point field will display as a percentage
open (see F
IG. 90).
NOTE: Set the Flow Control Override to “Pressure” to
use the Pressure Flow Control Mode (see page 88).

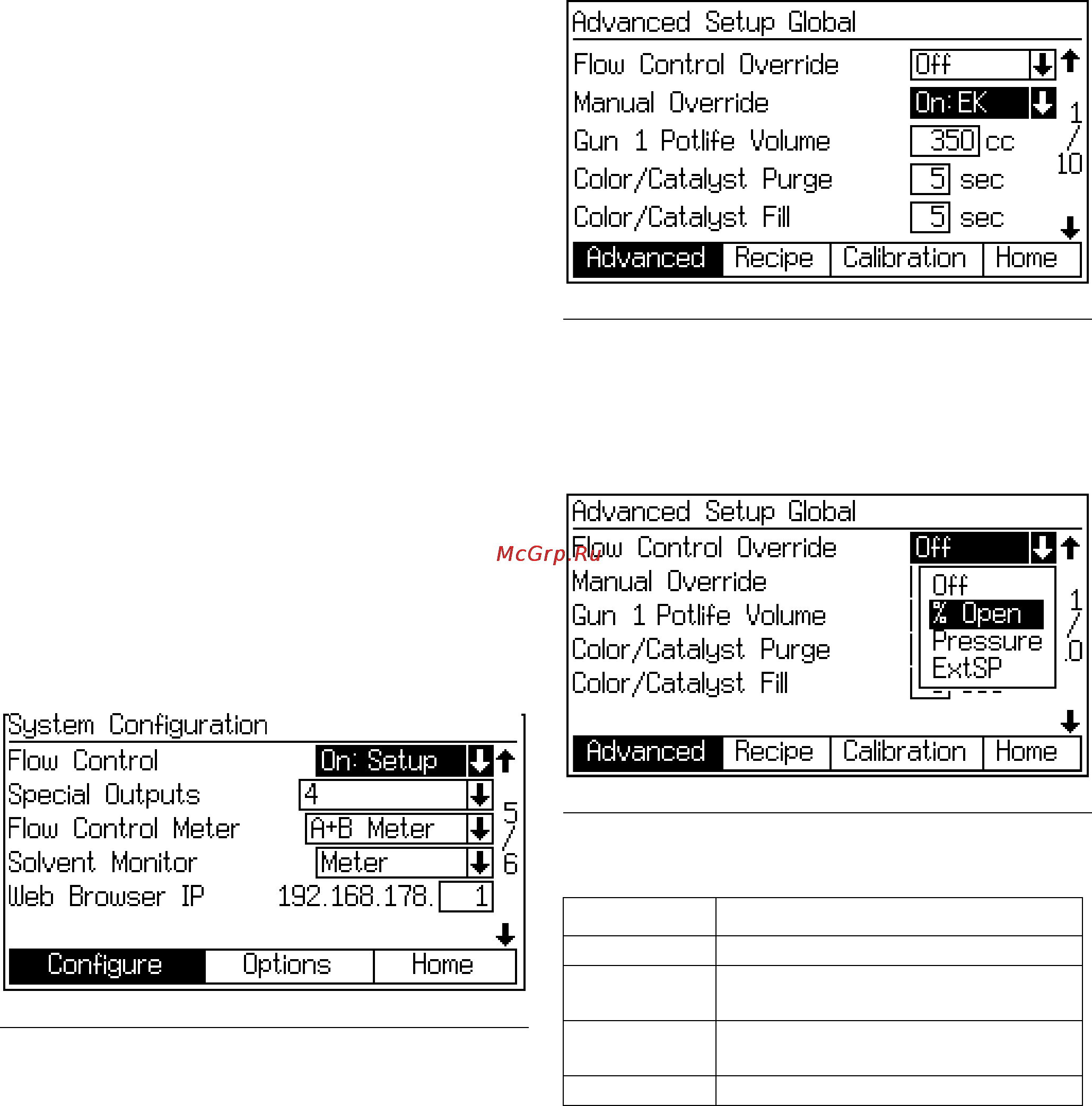

F
IG. 87. Configure Screen 5
FIG. 88. Advanced Setup Screen 1
F
IG. 89. Flow Control Override Menu
Table 12: Flow Control Override Selections
Selection Description
Off Normal operation
% Open Flow control regulator is opened to a
desired percentage.
Pressure Flow control regulator is opened to a
calibrated pressure.
ExtSP External PLC in control of Set Point
