Graco ProControl 1KS [72/138] Integration control recipe change x to y external color change

Modbus and I/O Data

72 3A1080F

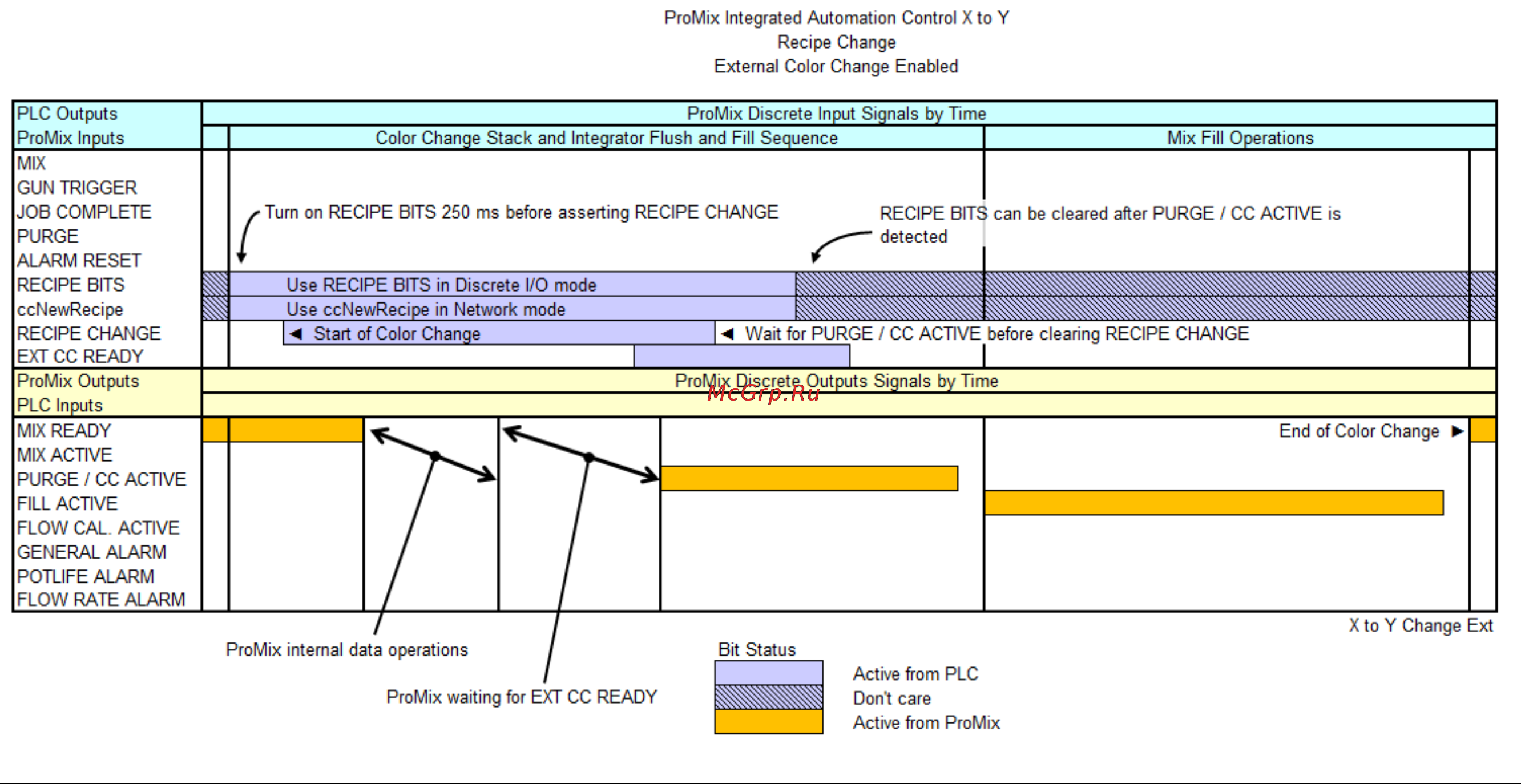

FIG. 75. Integration Control Recipe Change X to Y External Color Change
