EasyKey Display and Keypad

3A1080F 17

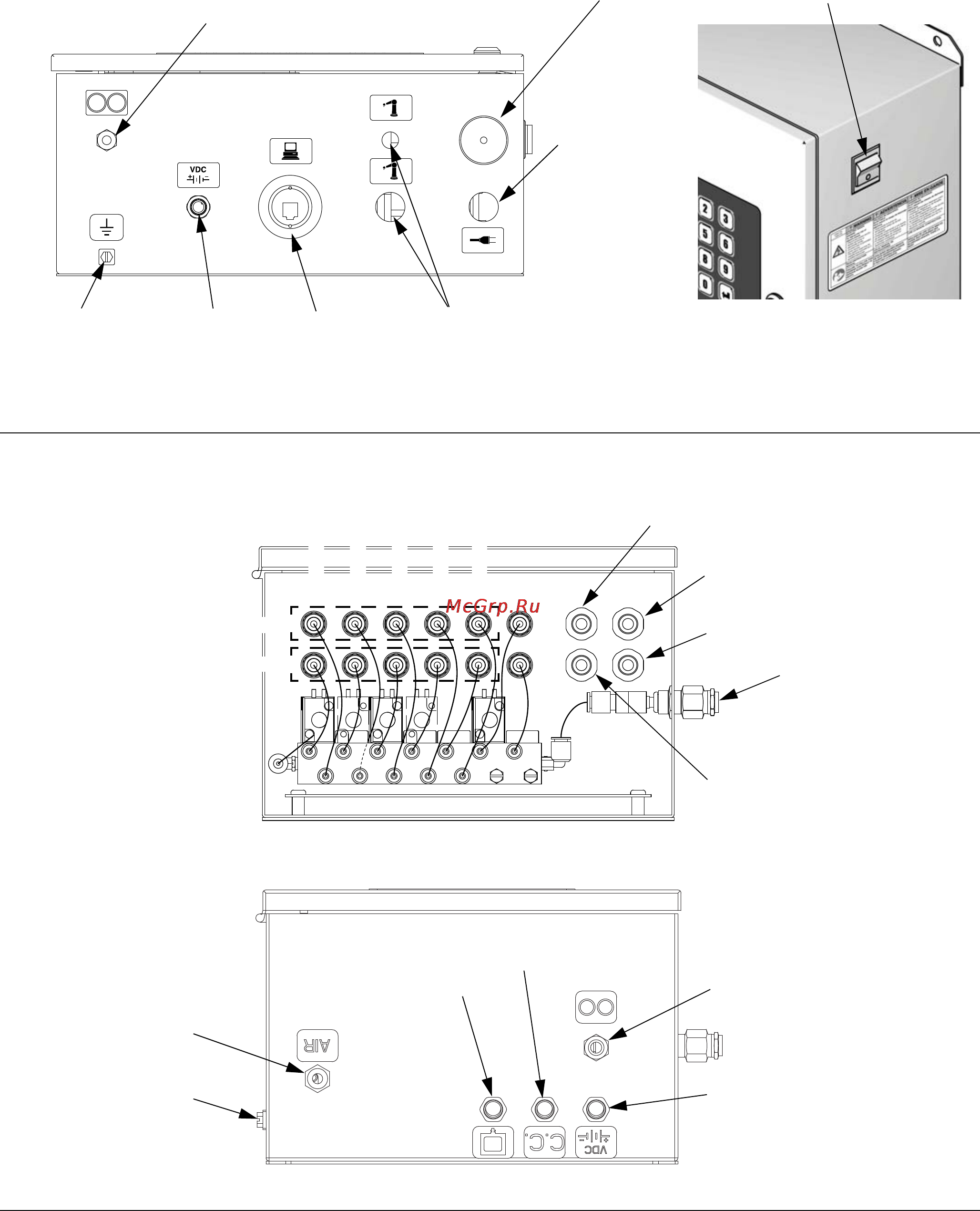

FIG. 6. EasyKey Connections and AC Power Switch

IG. 7. Fluid Station Control Box Connections

AC Power

Switch

Graco Web

Interface

Audible AlarmFiber Optic Strain

Relief Port

I/S Power Discrete I/O Cable

Connector Ports

Ground Screw

Main Power

Access Port

TI12638a

TI12657a

Fiber Optic Strain

Relief Port

I/S Power

Ground Screw

TI15917a

TI15919a

Booth Control

(Manual Systems

only)

Muffler

Color Change

Module

Logic Air Inlet

TOP VIEW

BOTTOM VIEW

OPEN

A DOSE

B DOSE

A PURGE

B PURGE

3RD PURGE

A DUMP B DUMP

Meter A

Flow Control

Gun Air

Meter B

(not used)
