![Graco ProControl 1KS [13/36] Fm08atex0074 system assembly certificate](/img/pdf.png)
Graco ProControl 1KS [13/36] Fm08atex0074 system assembly certificate
![Graco ProControl 1KS [13/36] Fm08atex0074 system assembly certificate](/views2/1193397/page13/bgd.png)
Location
3A1163A 13

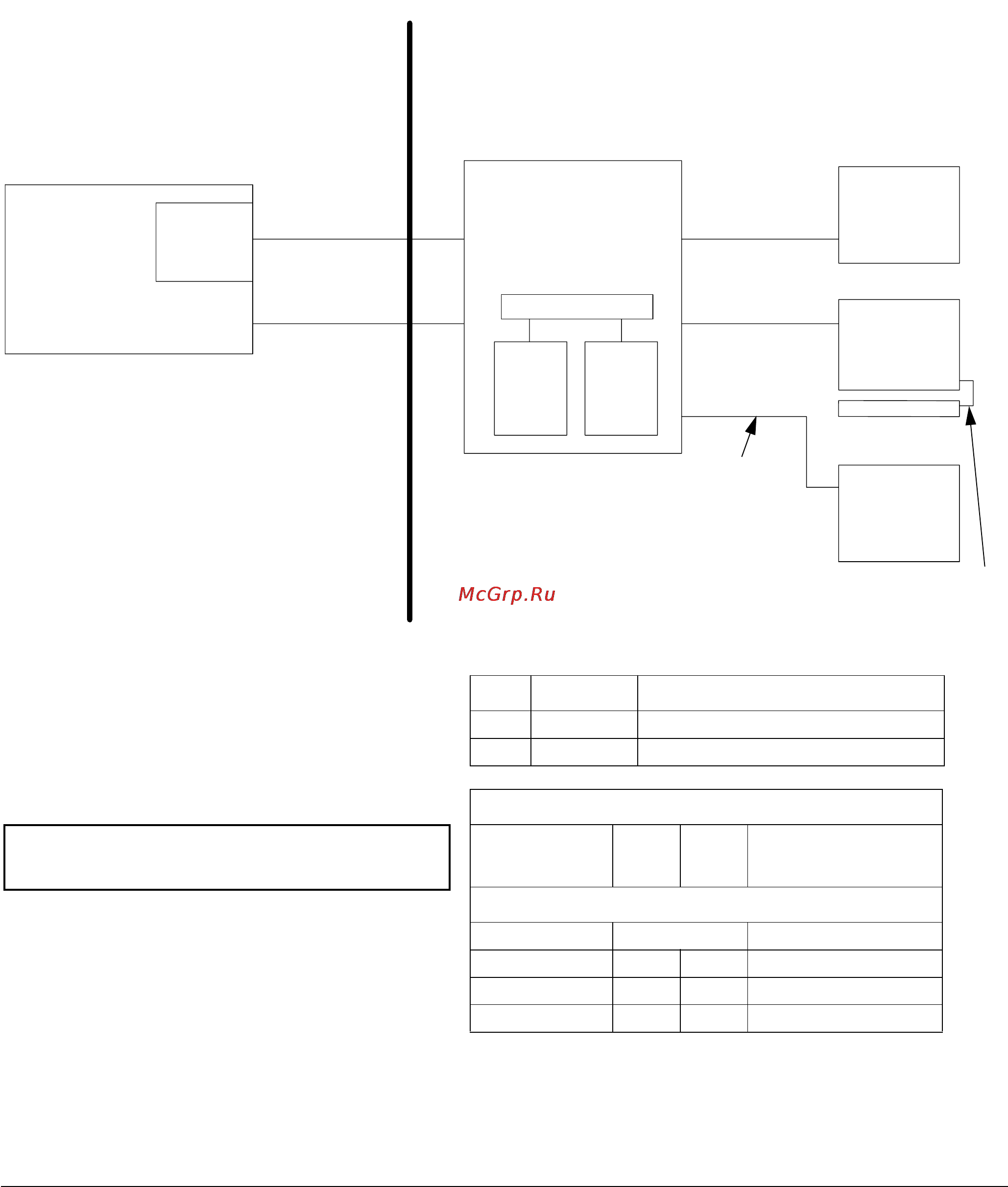

FIG. 3. Intrinsically Safe Installation
NON-HAZARDOUS
LOCATION ONLY
HAZARDOUS (CLASSIFIED) LOCATION
CLASS I, DIV I, GROUP D, T3 (US AND CANADA)
CLASS I, ZONE I GROUP IIA T3 (ATEX ONLY)
TAUB = -20°C TO 50°C
ProMix 2KS
EasyKey Interface
(with or without
display)
Safety
Barrier
ProMix 2KS Smart Fluid Plate
(Wall Panel or RoboMix Panel)
Flow
Meter
A
Flow
Meter
B
Booth Control
Module
FM08ATEX0073
Color & Catalyst
Change
Module 1
FM08ATEX0073
250 VAC Maximum
Supply Voltage
50’ I/S Power Cable
(3’, 6’, 10’, 15’, 25’,
100’ options)
50’ Fiber Optic
Communication
Cable (100’ option)
10’ I/S Power and
Communication
Cable (40’
extension option)
IS Control Drawing 289833
Cable Assemblies
Module 2
FM08ATEX0073
Flow Control
Regulator
Module
FM08ATEX0073
3’ CAN Color
Change Interface
(6’, 10’, 15’, 25’,
50’ 100’ options)
50’ CAN Booth
Control Interface
(3’, 6’, 10’, 15’,
25’, 100’ options)
3’ CAN
Network
Cable
NOTE: See Intrinsically Safe Installation
Requirements on page 12.
WARNING: Substitution of components
may impair intrinsic safety. For installation,
maintenance or operation instructions, see
instruction manual.
ADVERTISSEMENT: La substitution de
composants peut compromettre la securite
intrinseque.
FM08ATEX0074
SYSTEM ASSEMBLY CERTIFICATE
FM08ATEX0072
ASSOCIATED APPARATUS
FM08ATEX0073 INTRINSIC
SAFE APPARATUS
Coriolis Meter Options, DMT 00 ATEX E 074 X (No exceptions):
Size Graco P/N Endress+Hauser P/N
1/8” 15T633* 80A-04-A-SVW-9-A-N-A-B-B-A-S
3/8” 15T634* 801-08-A-999-9-A-N-A-B-B-A-S
Power
EasyKey
+24 Vdc
Common
Meter Terminal Block #
1
2
Signal
Fluid Plate Board J3 Terminal Meter Terminal Block #
Meter Position A B
Signal 3 6 24
Common 2 5 25
* For P/N 15T633 order Coriolis Meter Kit 15V806.
For P/N 15T634 order Coriolis Meter Kit 258151.
NOTE: This IS control drawing also applies to the
ProControl 1KS. See also F
IG. 4 on page 15.
