Electrical
3A1163A 23

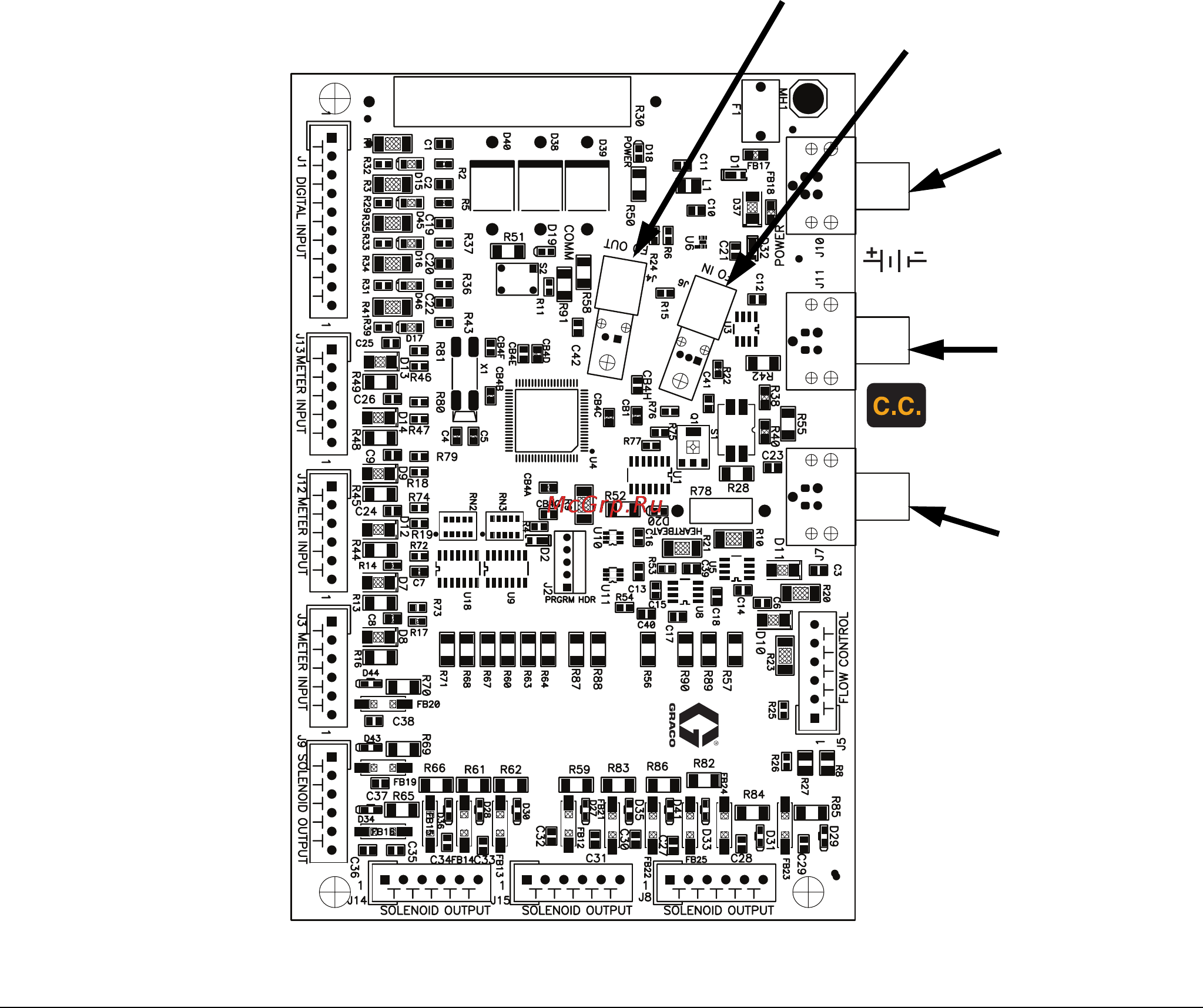

FIG. 11. Fluid Station Board Connections
J11
(Color Change
Module)
J7
(Not Used)
J10
(Power Input)
J4
(Fiber Optic Output - blue)
J6
(Fiber Optic Input - black)
VDC
