Graco Python 1/8" [25/56] Pump repair
Repair
3A3101D 25
Pump Repair
1. Remove packing nut (16) from fluid cylinder (13).
2. Carefully remove bearings (14) and packing (15)
from the fluid cylinder (13).
3. Replace packing (15) and bearings (14), if neces-
sary. Lubricate prior to reassembly.
4. Reinsert the packing nut (16), packing (15), and
bearings (14) into the fluid cylinder (13). Tighten
hand tight and back off ½ of a turn to prevent dam-
age to packing (15) during reassembly.

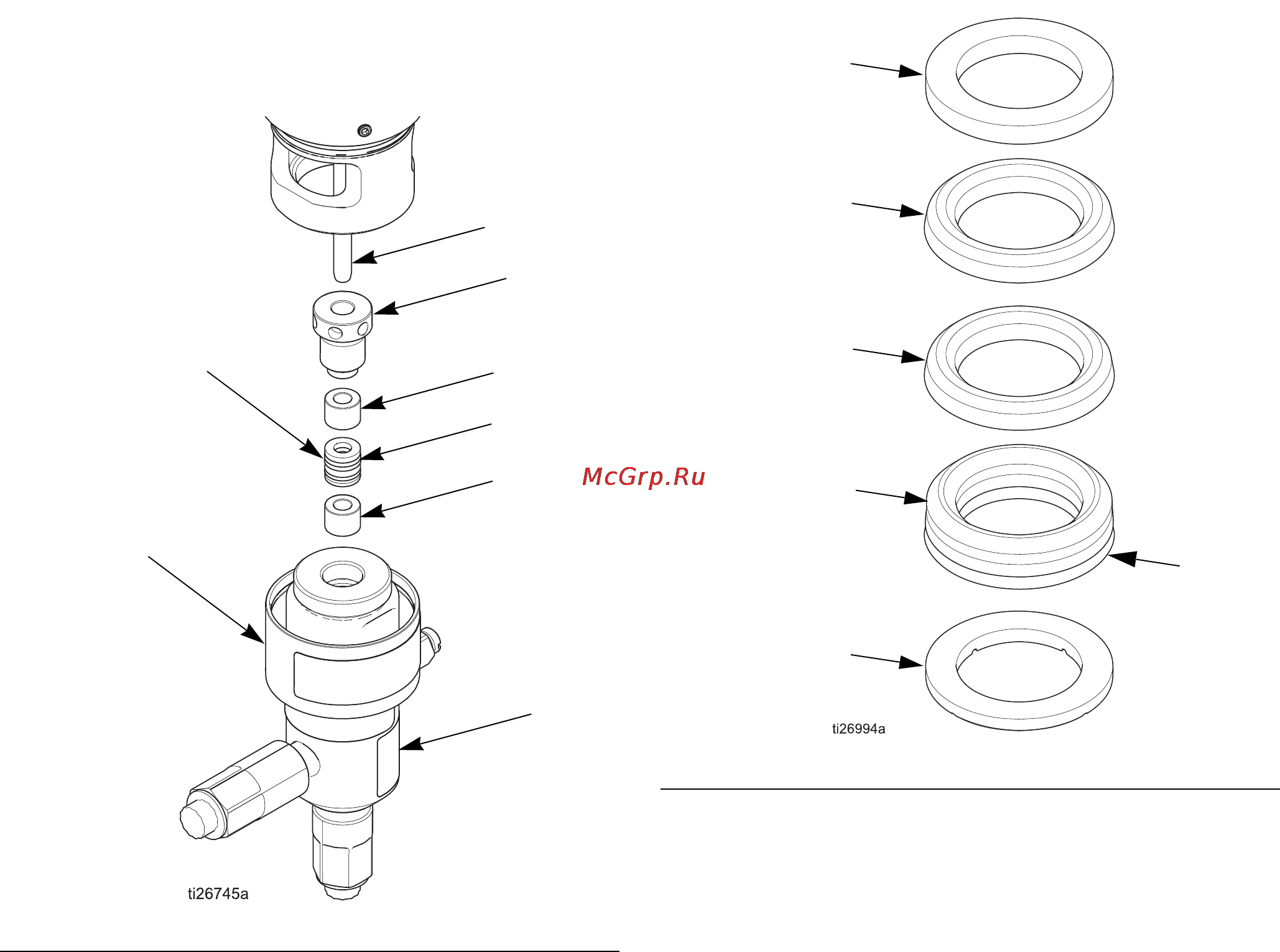

FIG. 8 Remove parts from fluid cylinder
5
16
14
15
14
12
13
Seal lips
facing down
FIG. 9 Packing (15) detailed view
Tan
Gray
Black
Tan
Gray
Gray
