Moxa Managed Ethernet Switches Featured Functions

3-40

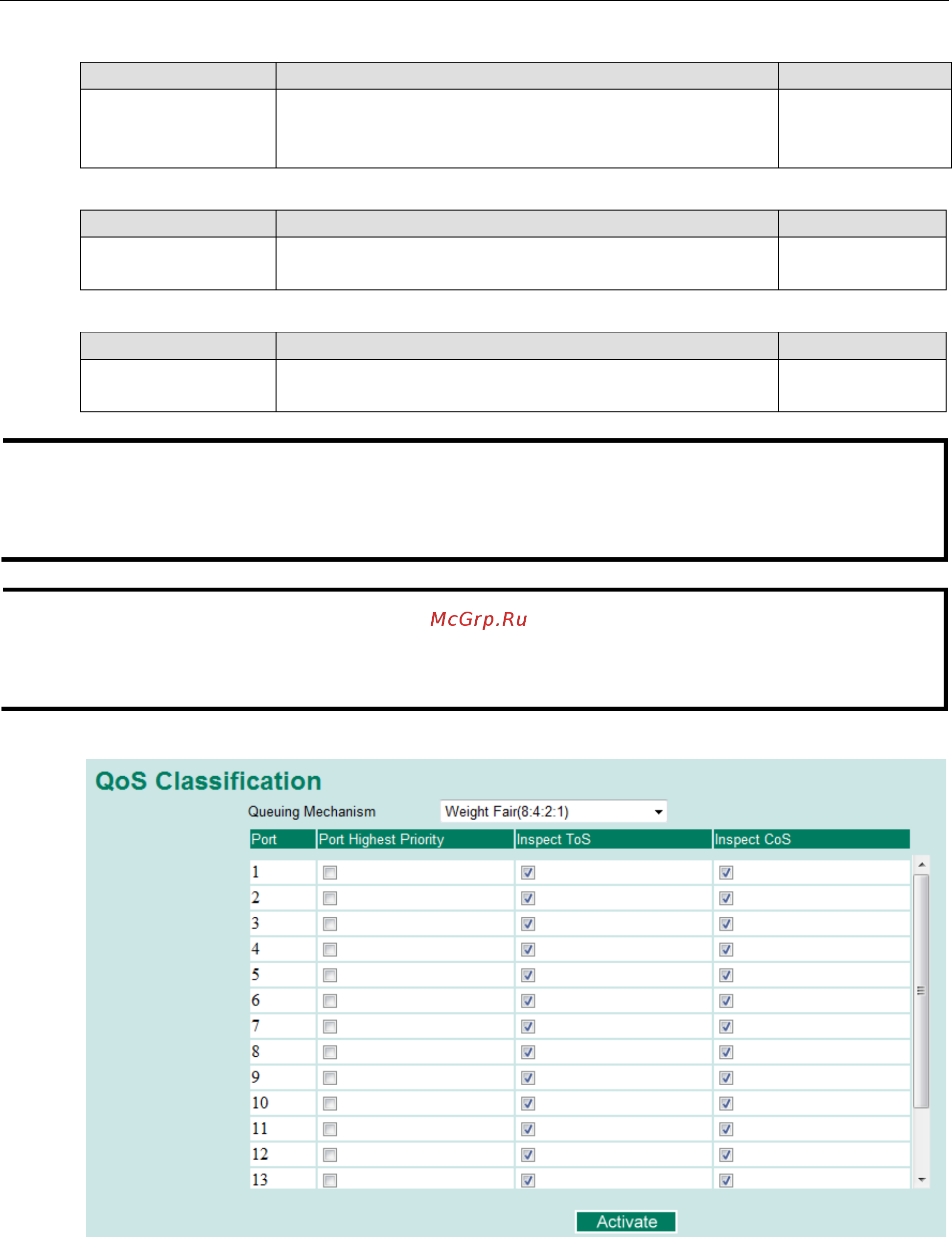

Inspect TOS

Setting Description Factory Default

Enable/Disable Enables or disables the Moxa switch for inspecting Type of

Service (TOS) bits in the IPV4 frame to determine the priority of

each frame.

Enabled

Inspect COS

Setting Description Factory Default

Enable/Disable

Enables or disables the Moxa switch for inspecting 802.1p COS

tags in the MAC frame to determine the priority of each frame.

Enabled

Inspect Port Priority

Setting Description Factory Default

Port priority The port priority has 4 priority queues. Low, normal, medium,

high priority queue option is applied to each port.

3(Normal)

NOTE

The priority of an ingress frame is determined in the following order:

1. Inspect TOS

2. Inspect CoS

Port Priority

NOTE

The designer can enable these classifications individually or in combination. For instance, if a “hot” higher

priority port is required for a network design,

Inspect TOS and Inspect CoS

can be disabled. This setting

leaves only port default priority active, which results in all ingress frames being assigned the same priority on

that port.
