Moxa EDS-510E-3GTXSFP-T [31/105] Firmware upgrade

Managed Ethernet Switch (UI_2.0_FW_4.x) Featured Functions

3-18

Drop Down List

ALL Select this item to show all of the Moxa switch’s MAC addresses.

ALL Learned Select this item to show all of the Moxa switch’s Learned MAC addresses.

ALL Static Select this item to show all of the Moxa switch’s Static, Static Lock, and Static

Multicast MAC addresses.

ALL Multicast Select this item to show all of the Moxa switch’s Static Multicast MAC addresses.

Port x Select this item to show all of the MAC address’s dedicated ports.

The table displays the following information:

MAC This field shows the MAC address.

Type This field shows the type of this MAC address.

Port This field shows the port that this MAC address belongs to.

System Files

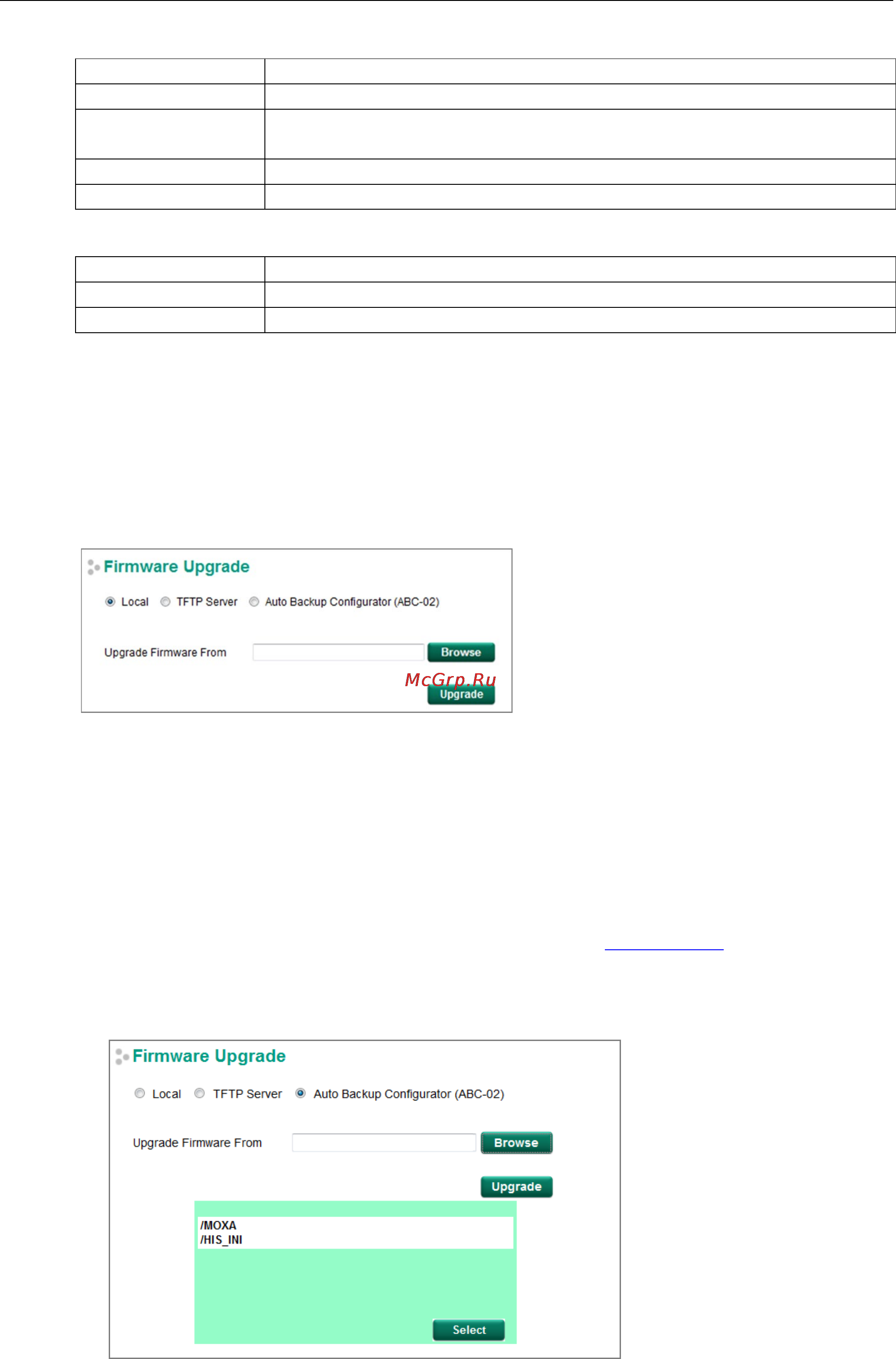

Firmware Upgrade

There are three ways to update your Moxa switch’s firmware: from a local *.rom file, by remote TFTP server,

and with Auto Backup Configurator (ABC-02).

Local

1. Download the updated firmware (*.rom) file from Moxa’s website (www.moxa.com).

2. Browse for the (*.rom) file, and then click the Upgrade button

TFTP Server

1. Enter the TFTP Server’s IP address.

2. Input the firmware file name (*.rom) and click the Upgrade button.

Auto Backup Configurator (ABC-02)

1. Download the updated firmware (*.rom) file from Moxa’s website (www.moxa.com).

2. Save the file to the ABC-02’s Moxa folder. The file name cannot be longer than 8 characters, and the file

extension must be .rom.

3. Browse for the firmware (*.rom) file from the ABC-02, and then click the Upgrade button.
