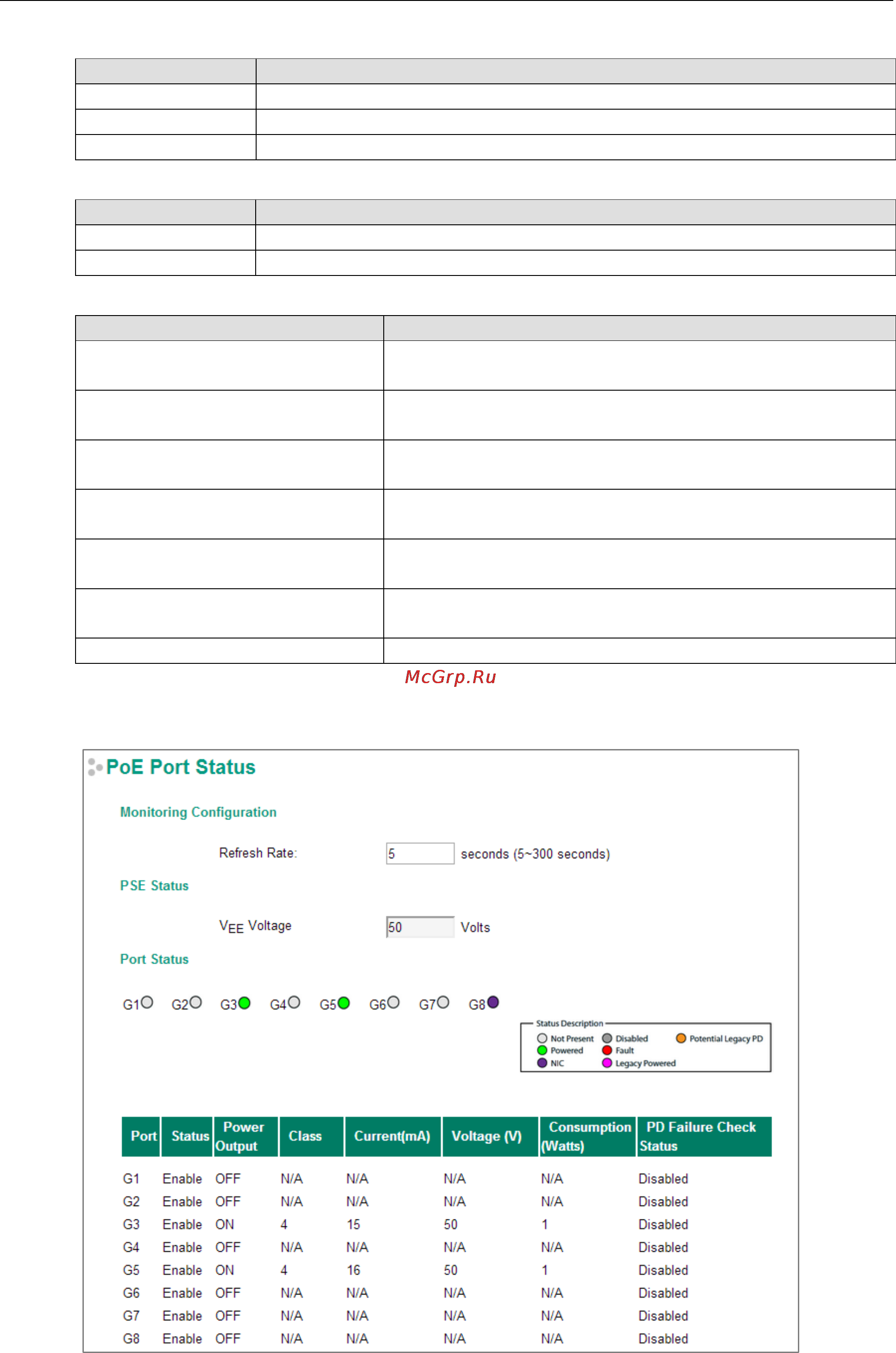

Moxa EDS-510E-3GTXSFP-T [43/105] Poe port status

Managed Ethernet Switch (UI_2.0_FW_4.x) Featured Functions

3-30

Classification

Item Description

N/A The port is not classified

0 to 4 Class 0 to 4

Unknown Unknown class for the port; in this case it will usually be higher than class 4

Voltage (V)

Item Description

N/A No voltage output on the port

Voltage Display the voltage of the port

PoE Port Configuration Suggestion

Item Description

Disable PoE power output When detecting a NIC or unknown PD, the system suggests disabling

PoE power output.

Enable “Legacy PD Detection” When detecting a higher capacitance of PD, the system suggests

enabling Legacy PD Detection.

Select Force Mode When detecting higher/lower resistance or higher capacitance, the

system suggests selecting Force Mode.

Select IEEE 802.3af/at auto mode When detecting an IEEE 802.3 af/at PD, the system suggests

selecting 802.3 af/at Auto mode.

Select high power output When detecting an unknown classification, the system suggests

selecting High Power output.

Raise the external power supply voltage

to greater than 46 VDC

When the external supply voltage is detected at under 46 V, the

system suggests raising the voltage.

Enable PoE function for detection The system suggests enabling the PoE function.

PoE Port Status
