For Type 1, the Control Mode setting on the Rate Limiting page can be set to Normal or Port Disable.

Control Mode

Setting Description Factory Default

Normal Set the max. ingress rate limit for different packet types Normal

Port Disable When the ingress multicast and broadcast packets exceed the

ingress rate limit, the port will be disabled for a certain period.

During this period, all packets from this port will be discarded.

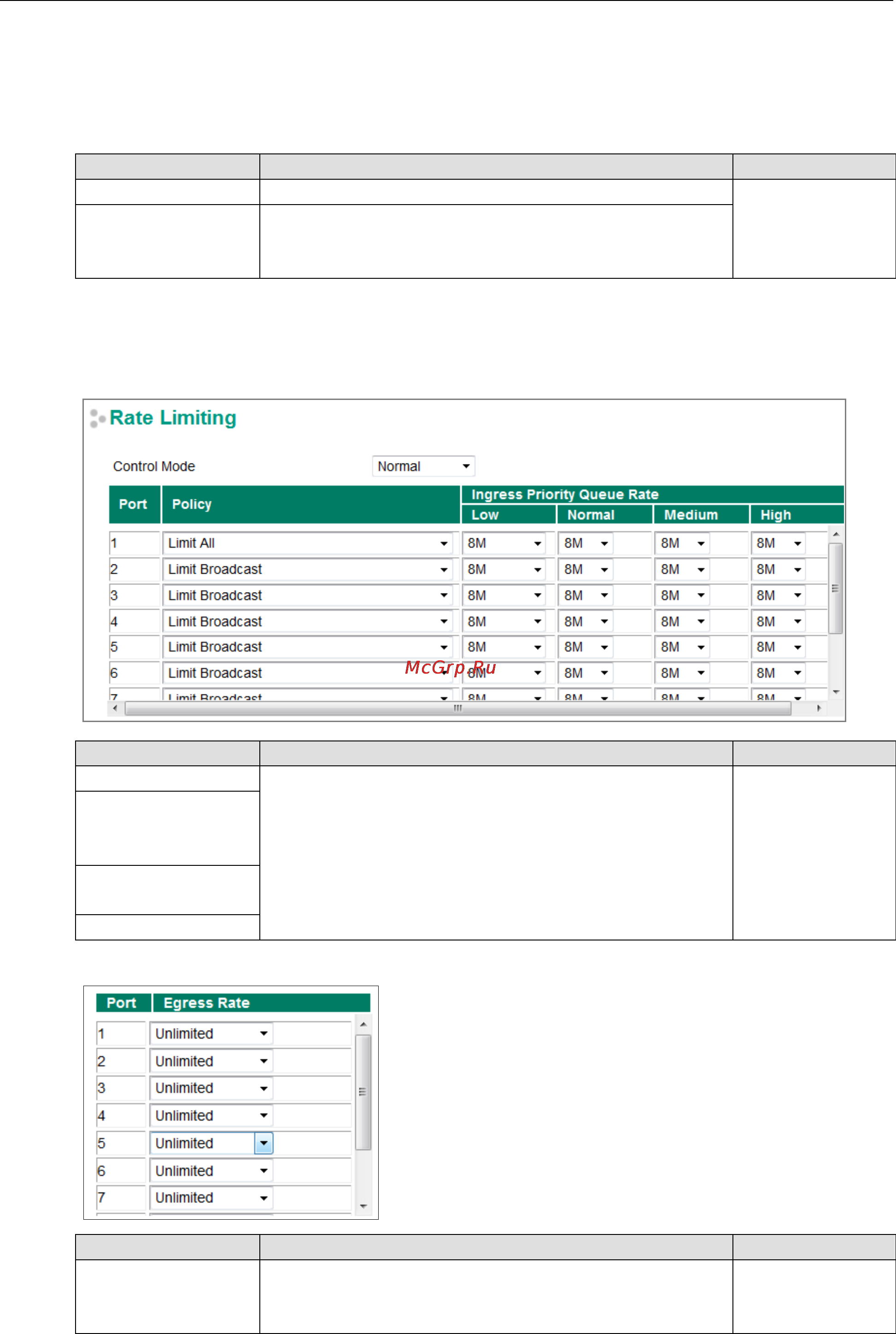

Rate Limiting: Normal

Ingress Rate Limit

Policy Description Factory Default

Limit All Select the ingress rate limit for different packet types from the

following options: Unlimited, 128K, 256K, 512K, 1M, 2M, 4M,

Limit Broadcast 8M

Limit Broadcast,

Multicast, Flooded

Unicast

Limit Broadcast,

Multicast

Limit Broadcast

Egress Rate Limit

Setting Description Factory Default

Egress rate

(% of max.

throughput)

Select the egress rate limit (% of max. throughput) for all

packets from the following options: Not Limited, 3%, 5%, 10%,

15%, 25%, 35%, 50%, 65%, 85%

Unlimited
