Moxa EDS-510E-3GTXSFP-T [51/105] Qinq settings

Managed Ethernet Switch (UI_2.0_FW_4.x) Featured Functions

3-38

VLAN Settings: Port-based

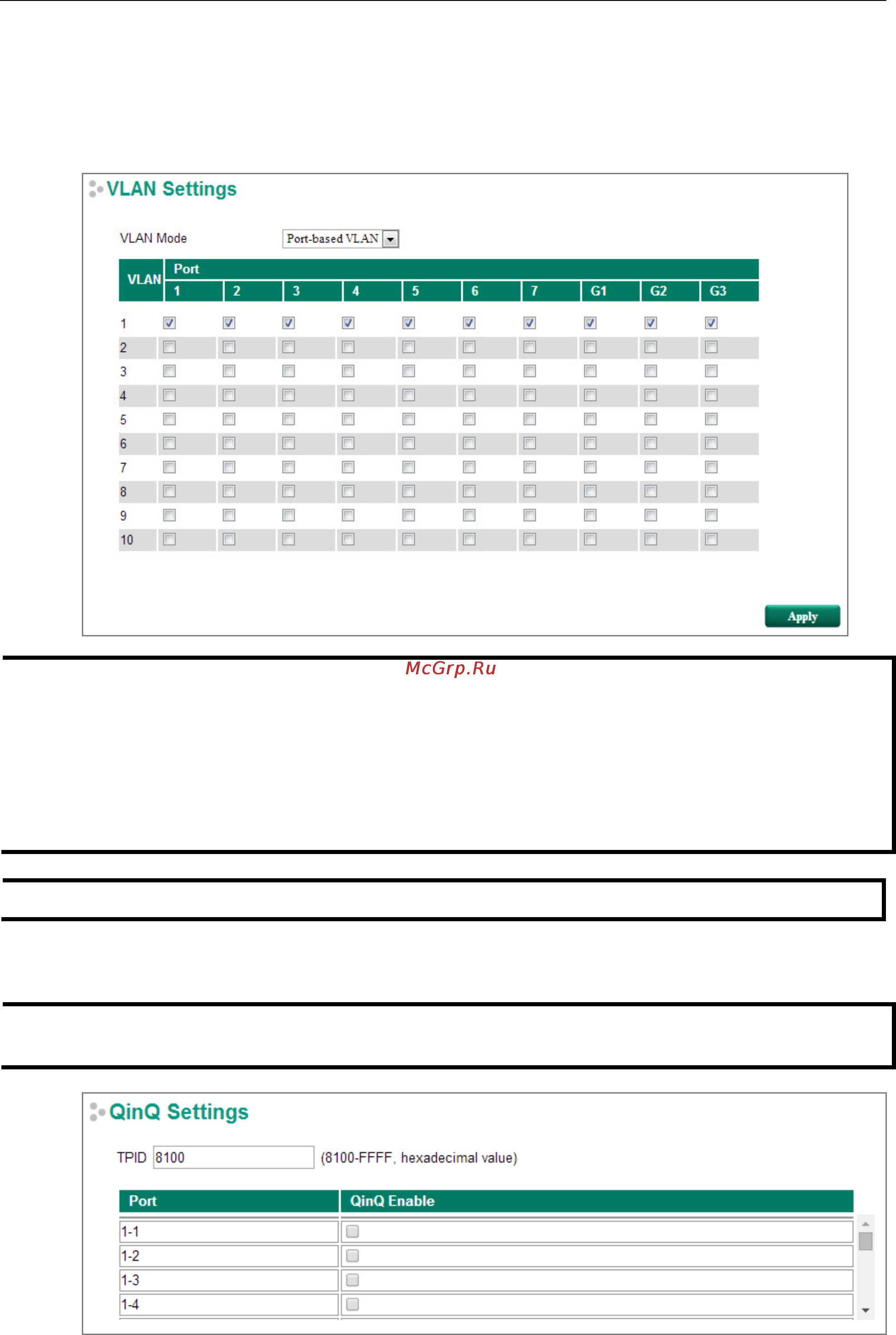

When VLAN Mode is set to Port-based VLAN, the VLAN Settings window will appear as shown below. Check

the appropriate checkbox under a port to assign the port to a VLAN. The maximum VLAN ID equals the number

of switch ports. In the following example, all of the ports are assigned to VLAN 1.

NOT

Port

-Based VLAN is supported by:

•

EDS series switches (not including the EDS-728/828)

•

IKS-6726A/6728A

Port

-Based VLAN is NOT supported by:

•

EDS-728/828

•

IKS-G6524A/G6824A

•

ICS series switches

NOTE

When Port

-based VLAN is configured, IGMP will be disabled.

QinQ Settings

NOTE

Moxa

’s layer 3 switches support the IEEE 802.1ad QinQ function, which allows users to tag double VLAN

headers into a single Ethernet frame
