DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-G512E-8PoE

series when you take it out of the box. Mount the EDS-G512E-8PoE series

on corrosion-free mounting rails that meet the EN 60715 standard.

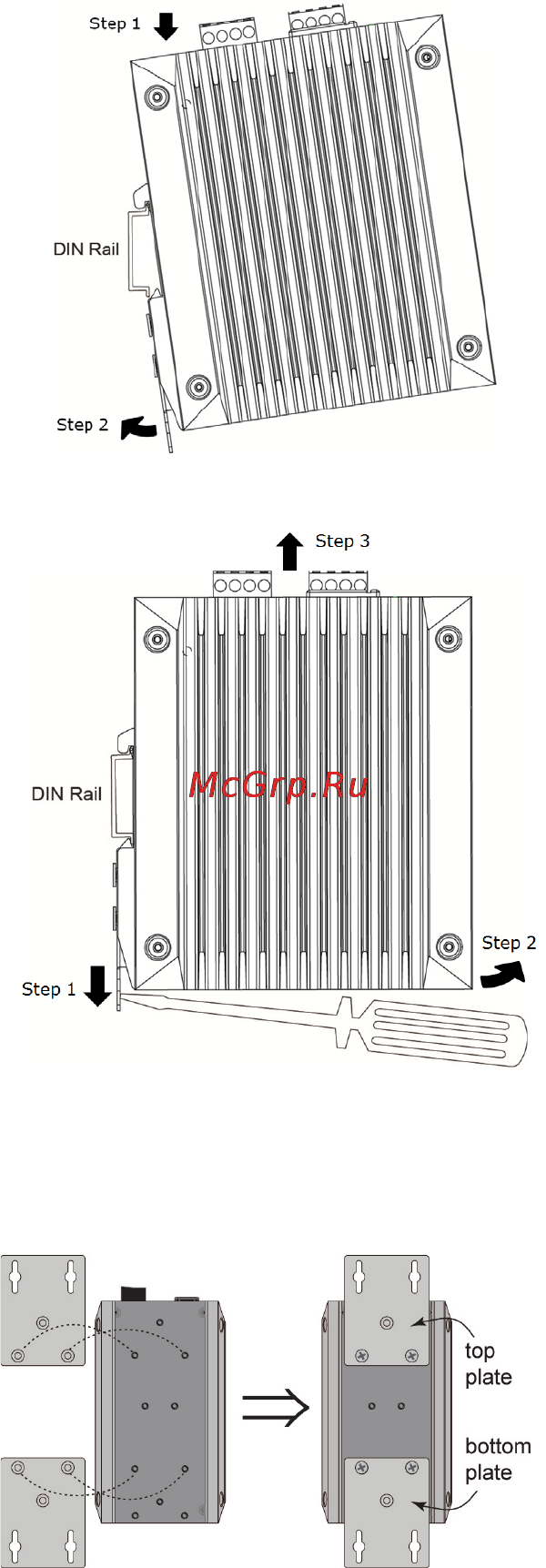

Installation

STEP 1—Insert the upper lip

of the DIN r

ail into the DIN-r

ail

mounting kit.

STEP 2

—Press the

EDS

-G512E-8PoE series

towards the

DIN rail until it

snaps into place.

Removal

STEP 1

—Pull down the latch

on the mounting kit

with a

screwdriver.

STEP 2

& 3—Slightly pull

the

EDS

-G512E-8PoE series

forward and lift up to remove

it from the DIN r

ail.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa EDS-

G500E series on the wall, as shown in the following illustrations:

STEP 1—Remove the

aluminum DIN r

ail

attachment plate from the

rear panel

of the

EDS

-G512E-8PoE series,

and

then attach the wall

mount plates

with M3

screws

, as shown in the

figure at the right.
