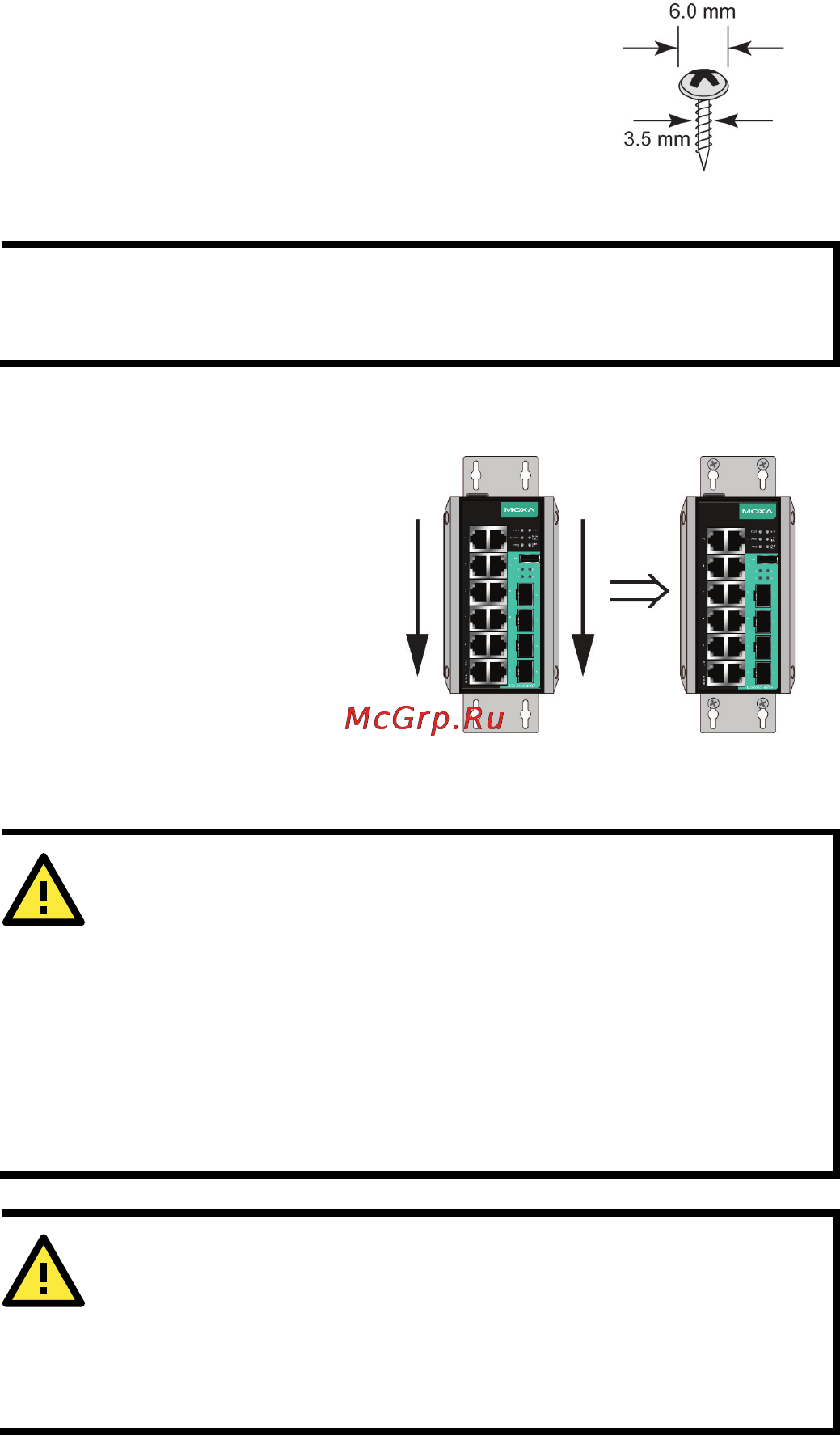

STEP 2—Mounting the EDS-G512E-8PoE series on
the wall requires 4 screws. Use the
EDS
-G512E-8PoE series, with wall mount plates
attached, as a guide to mark the correct locations
of the 4 screws. The heads of the screws should be
less than 6.0 mm in diameter, and the shafts
should be less than 3.5
mm in diameter, as shown
in the figure on at right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3—Once the screws are
fixed
to
the wall, insert the four
screw heads through the wide
parts of the keyhole
-shaped
apertures, and then slide
the
EDS
-G512E-8PoE downwards,
as indicated
in the figure at
the
right. Tighten the four screws for
more
stability.
Wiring Requirements
WARNING
Do not disconnect modules or wires unless power has been
switched off or the area is known to be non
-hazardous. The
devices may only be connected to the supply voltage shown on
the type plate. The devices are designed for operation with a
S
afety Extra-Low V
oltage. Thus, they may only be connected to
the supply voltage connections and to the signal contact
with the
S
afety Extra-Low Voltages (SELV) in compliance with IEC950/
EN60950/ VDE0805.
ATTENTION
This unit is a built
-in type. When the unit is installed in another
piece of equipment, the equipment enclosing the unit
must
comply with fire enclosure regulation IEC 60950/EN60950 (or
similar regulation).
