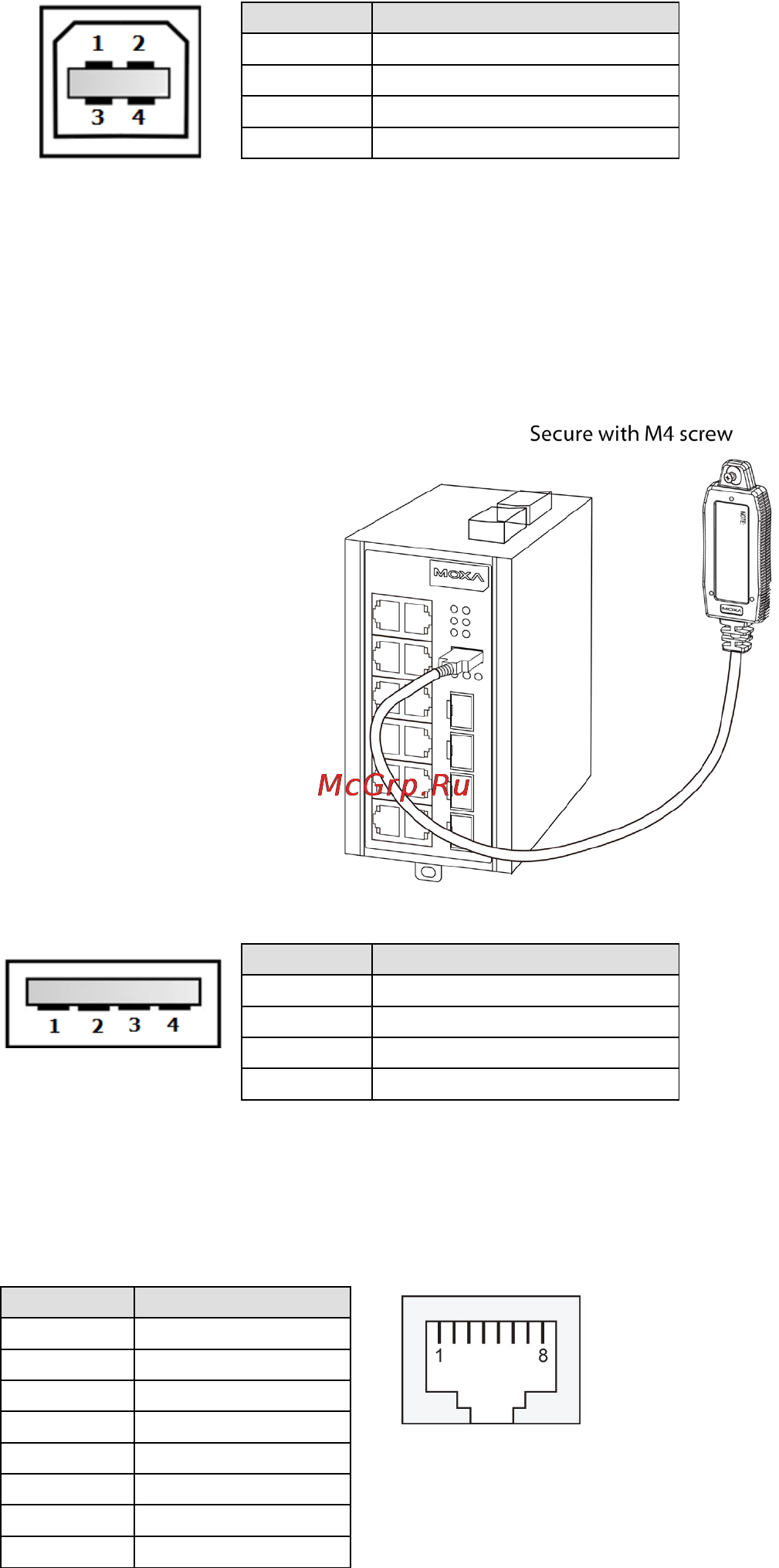

USB Console Port (Type B Connector) Pinouts

Description

D– (Data -)

VCC (+5V)

D+ (Data+)

GND (Ground)

USB Storage Connection

The EDS-G512E-8PoE series has one USB storage port (type A connector)

on the front panel. Use Moxa ABC-02-USB-T automatic backup

configurator to connect the EDS-G512E-8PoE's USB storage port for

configuration backup, firmware upgrade or system log file backup.

ABC-02-USB Installation

Plug the ABC-02-USB into the

USB

storage port of

the Moxa

EDS

-G512E-8PoE series.

Securing the ABC

-02-USB on

the wall with an M4 screw is

suggested.

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data -)

D+ (Data+)

GND (Ground)

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over

copper wires.

MDI/MDI-X Port Pinouts

Signal

TRD(0)+

TRD(0)-

TRD(1)+

TRD(2)+

TRD(2)-

TRD(1)-

TRD(3)+

TRD(3)-
