Moxa UPort 1150I [15/43] Uport 1100 series installation and configuration
![Moxa UPort 1150I [15/43] Uport 1100 series installation and configuration](/views2/1198294/page15/bgf.png)
UPort 1100 Series Installation and Configuration
2-6

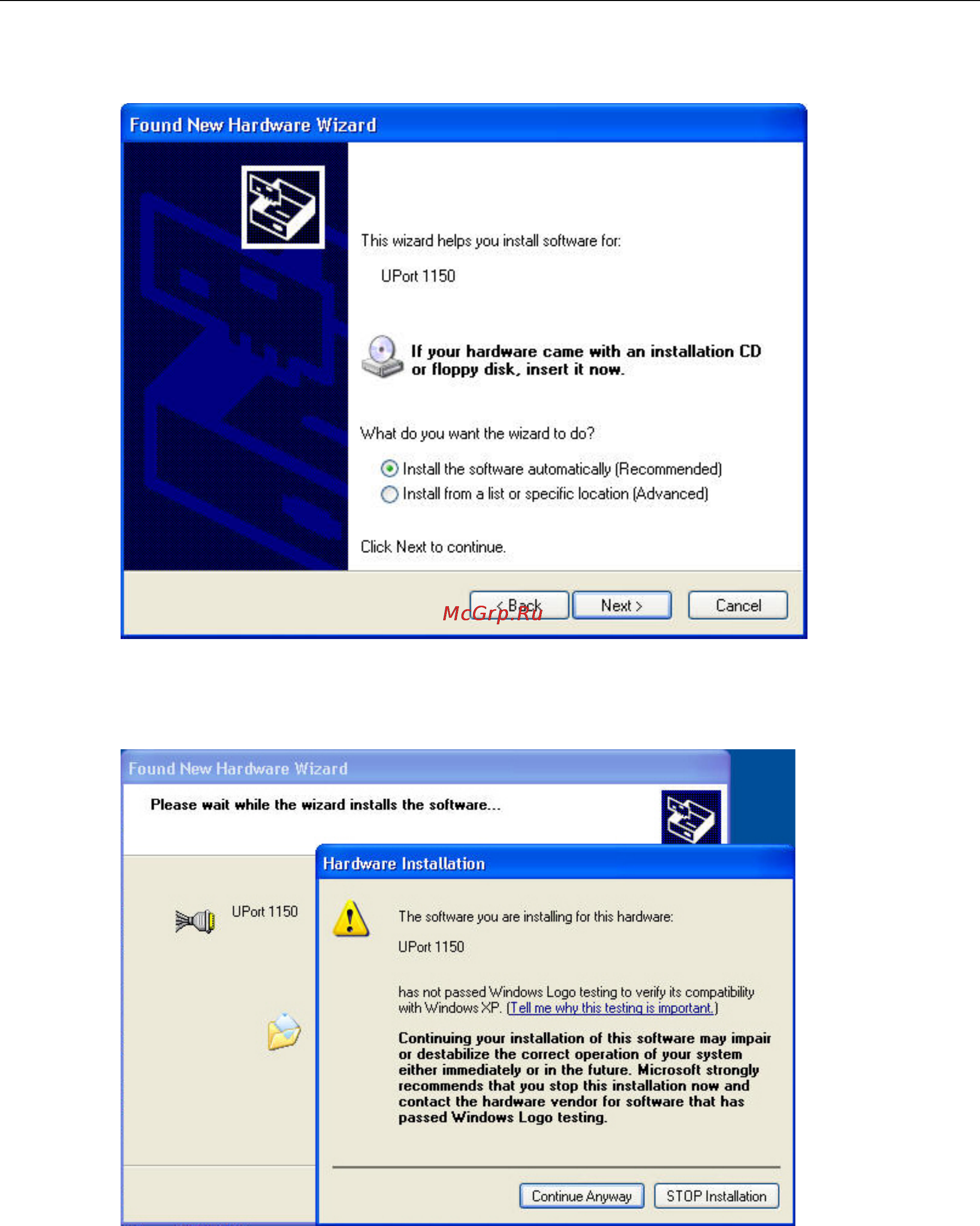

3. On the next window that appears, select Install the software automatically (Recommended); then
click Next.
4. The installation wizard will search for the correct drivers. After a moment, a window will pop up cautioning
you that this software has not passed Windows logo testing. This is a standard warning, and Moxa has
thoroughly tested the driver for safe Windows operation. Please click Continue Anyway to proceed.
5. Windows will take a few moments installing the UPort driver.
