UPort 1100 Series Installation and Configuration
2-25

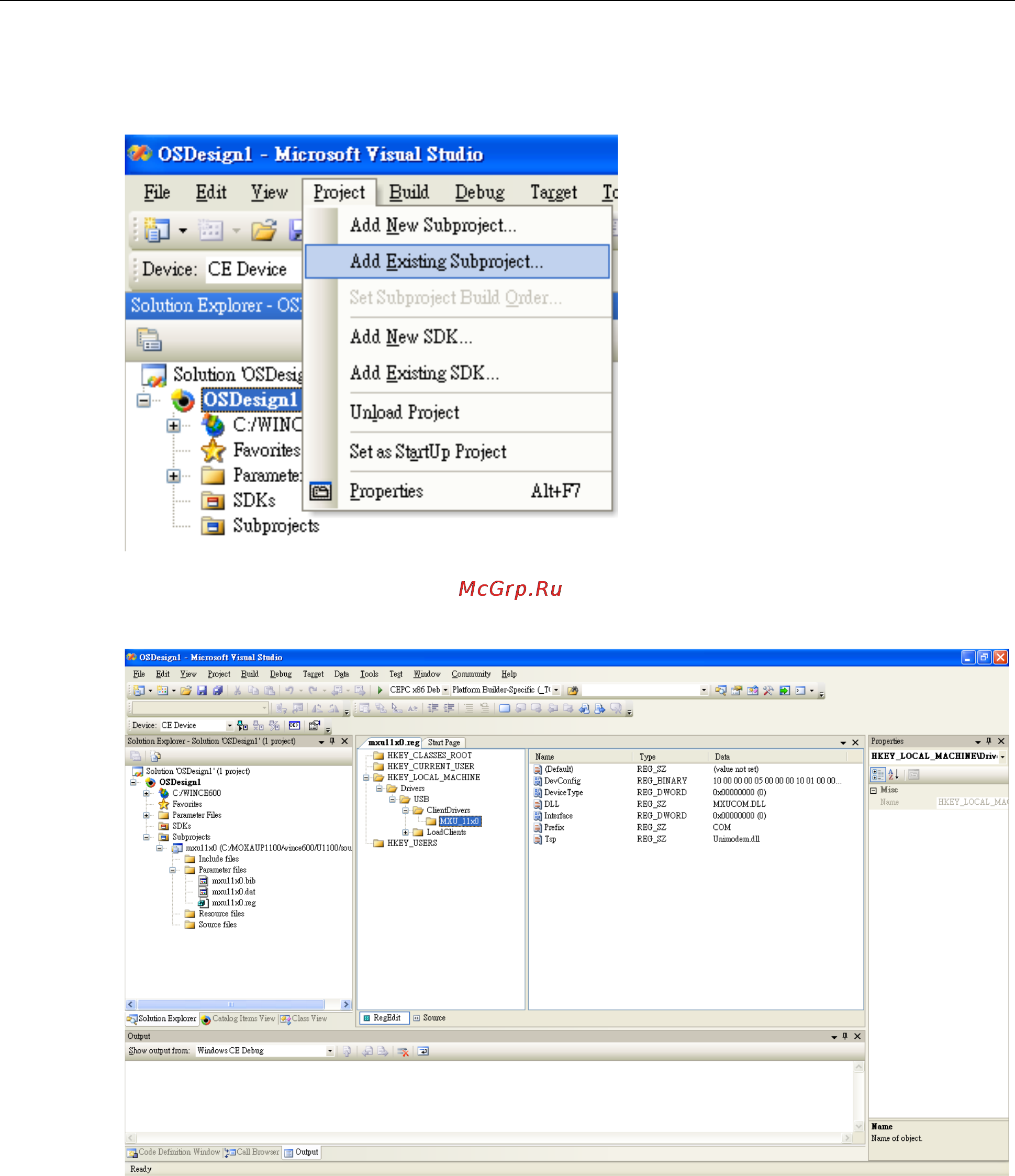

5. Open the project you created. Click Project on top of the screen; then, select Add Existing Subproject.
Switch the folder to “C:\ MOXAUP1100\wince600\U1100” and add subprojects into your OS Design. Assign
the pbpxml file to a different folder (i.e. mxu11x0.pbpxml).
6. After the subproject is added, you may configure the “mxupce6.reg” registry file with the location
[HKEY_LOCAL_MACHINE\Drivers\USB\ClientDrivers\MXU_11x0].
