CP-132 Series Software Installation

3-2

Windows NT

Windows NT supports up to 256 serial ports, from COM1 to COM256. To fully integrate the advanced features

of Windows NT, multi-process and multi-thread, pure 32-bit Windows NT device drivers are developed for the

Industio CP-132 Series multiport boards. The driver conforms to Win32 COMM API standard.

• To install the driver for the first time, please go directly to the next section, “Installing Driver”.

• If you already have installed the driver and want to re-configure the board and port, add more boards or

delete boards, please refer to the section “Configuring Board and Port”.

• To update or remove the driver, please go to the section, “Updating Driver” or “Removing Driver”.

Installing Driver

Following is the procedure for installing the Industio CP-132 Series driver for the first time under Windows NT

4.0. Make sure the board(s) has(have) already been plugged in the system PCI slot(s).

1. Please log in NT as Administrator.

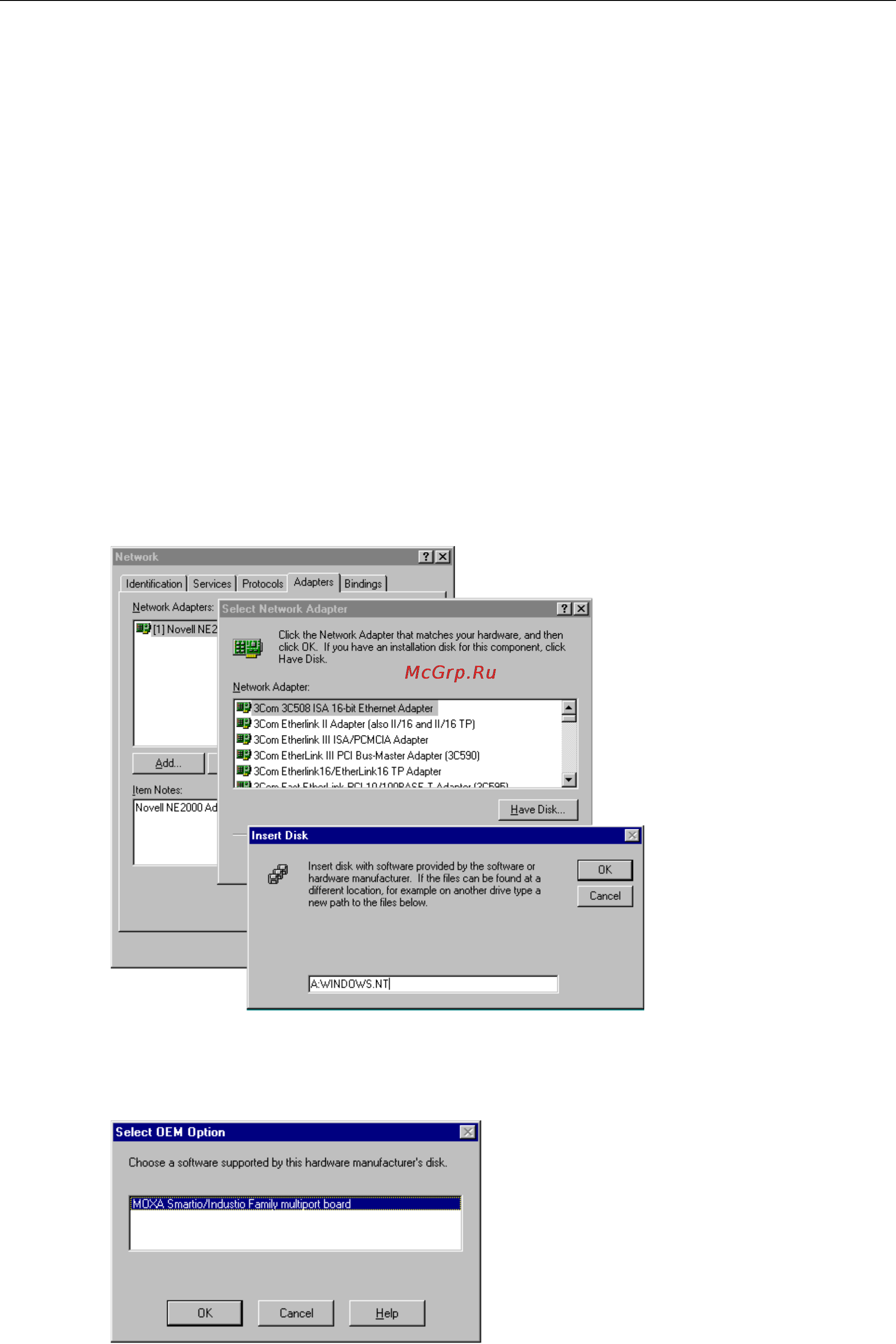

2. Open the [Control Panel], click on the [Network] icon and select the [Adapters] tab.

3. Click on the [Add] button, then the [Have Disk...] button in “Select Network Adapter” dialog box.

4. Specify the exact path of the driver diskette, A:\WINDOWS.NT. Then click [OK] button.

5. Select “MOXA Smartio/Industio Family multiport board” in the “Select OEM Option” dialog box, and

then click [OK] to enter the “MOXA Smartio/Industio Configuration Panel” dialog box to start the

installation.
