CP-132 Series Software Installation

3-4

If “Auto Enumerating COM Number” is checked and specify the COM number of the first port,

subsequent ports are mapped to continuous COM numbers. For instance, if first port is mapped to COM3,

then second port is mapped to COM4 sequentially.

If “Auto Enumerating COM Number” is not checked, specify the COM number for individual port. For

instance, the second port can be out of sequence, say COM10, while the first port is mapped to COM3.

• Rx FIFO Trigger

Rx FIFO trigger levels, at 1, 4, 8 or 14 bytes, are available, and the default value is 14 bytes.

• Tx FIFO Size

Tx FIFO sizes from 1 to 16 bytes are available, and the default value is 16 bytes.

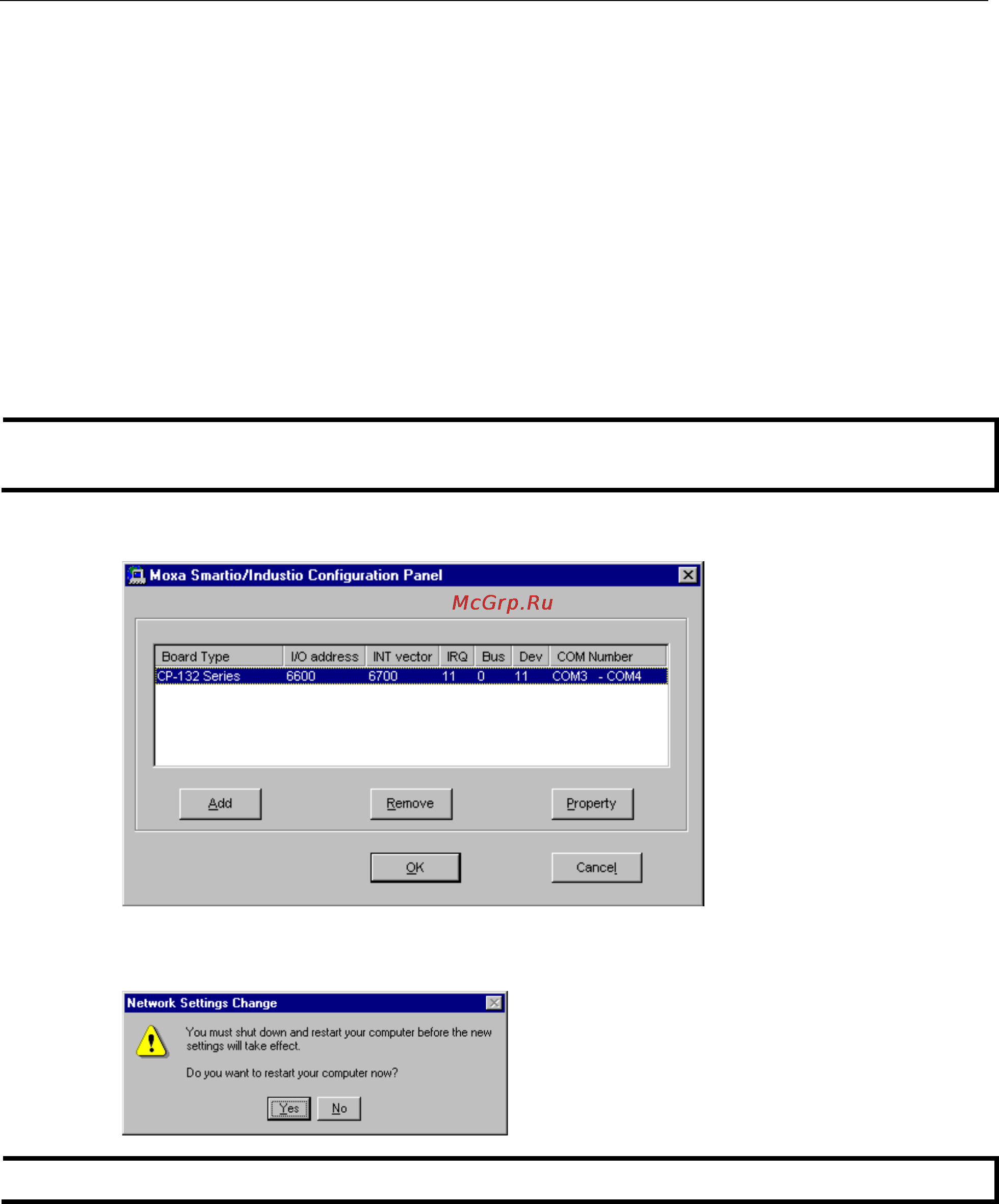

9. Click [OK] in the “Port #” and the “Property” dialog boxes to go back to the “MOXA Smartio/Industio

Configuration Panel” dialog box.

NOTE

If you need to install more than one board, click

[Add]

and repeat steps 6 to 8 to configure another board. Up

to four Industio CP

-132 Series boards can be installed in a system.

Click [OK] to finish the configuration.

10. When configuration is done, click on [Close] button in the “Network Settings” dialog box.

11. Restart Windows NT system. The latest configuration will not take effect unless the system restarts.

NOTE

The latest configuration will not take effect unless the system restarts.

12. Once the system restarts, you may check the event log issued by the MOXA driver to see if the ports of the

board are initialized successfully.

• Enter the [Administrative] group, click on the [Event Viewer] icon and select [System Event Log]

to check a message similar to “MOXA CP-132, with first serial port COM3, has been enabled” for

each configured board.

• If an error message similar to “Cannot find any configured MOXA CP-132 board!” appears, refer to

the “Troubleshooting” chapter for solutions.
