CP-132 Series Software Installation

3-11

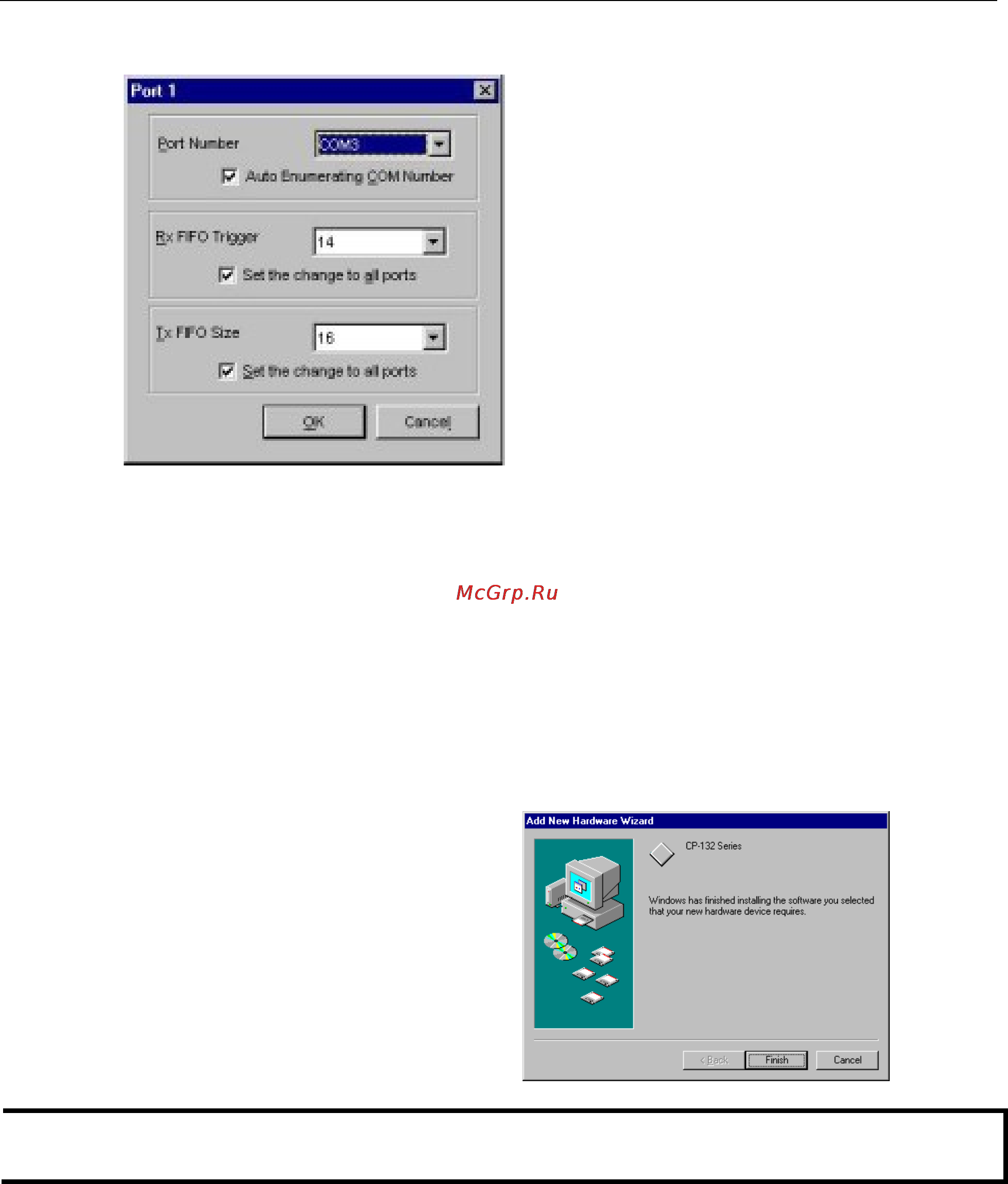

8. Check Set the change to all ports check-box then the if desire to apply Tx FIFO Size just defined to all ports.

9. Click [OK] button in Port X dialog box to confirm the port setting.

10. Click [OK] button in Property dialog box to complete the port setting.

Board and Port Ready Stage

Board and Port Ready Stage for Windows 95 and Windows 98 is a slight different. In this last stage, you will

complete the driver installation.

Windows 95

fter the port configuration, you can immediately

use the COM ports of the Industio CP

-132 Series

board without restarting Windows 95.

Windows 98

After the port configuration, click

[Finish] button. The

COM ports of the Industio CP

-132 Series board can be

sed without restarting Windows 98.

NOTE

If an error message similar to “CP

132 Series(BusNo=x, DevNo=x, Port1=COMx) interrupt number is invalid!”

pops up, refer to “Troubleshooting” chapter for solutions.

If you want to add more boards while the driver has been installed, simply plug the Industio CP-132 Series

board and Windows 95/98 will automatically detect the newly plugged board and skip to Port Configuration

stage to do port setting.

Up to now, the driver installation of the Industio CP-132 Series is complete and successful, including the board

and port configuration. However, if changes of the board and port configuration are needed, please refer to the

next section, “Configuring Board and Port”, for more configuration details.

Once the board and the driver are installed and the driver restarts successfully, you can start to develop

applications with the PComm library (See “Serial Programming Tools”) or the Microsoft Win32 API. You can

also execute any ready-made applications, such as PComm utility Terminal emulator (See “Serial

Programming Tools”) or HyperTerminal to transmit/receive data, as well as Remote Access Service to

provide dial-up networking capabilities.
