Universal PCI Board Software Installation
3-14

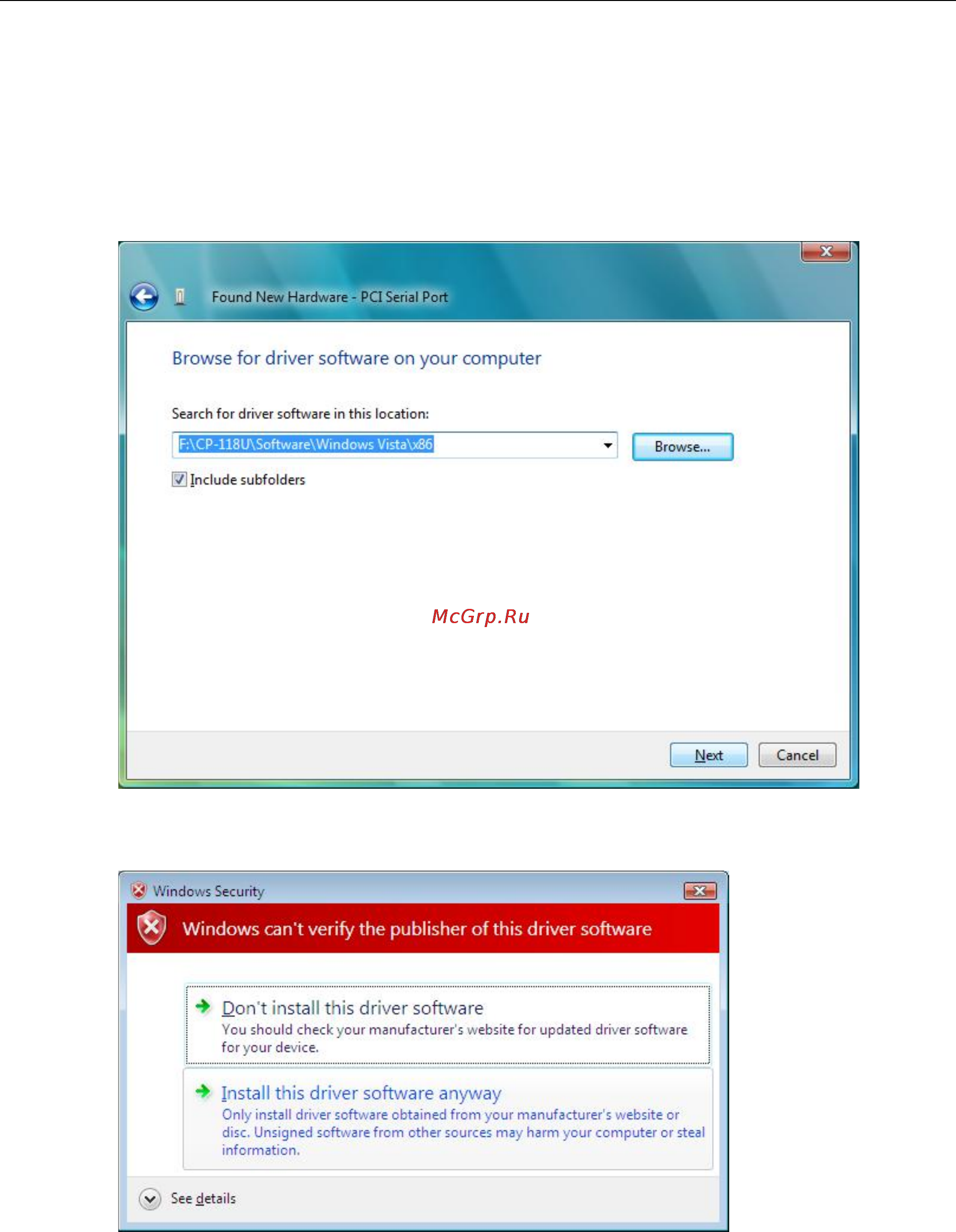

4. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers
for all operating systems are located under the product folder in the \Software directory (e.g., under
\CP-118U Series\Software).
For 32-bit (x86) platforms, select the \Windows 2008_Vista\x86 folder.
For 64-bit (x64) platforms, select the \Windows 2008_Vista\x64 folder.
After selecting the folder, click Next to continue.
5. If you receive a warning message stating that the Windows can’t verify the publisher of the software, select
Install this driver software anyway.
