Universal PCI Board Software Installation
3-15

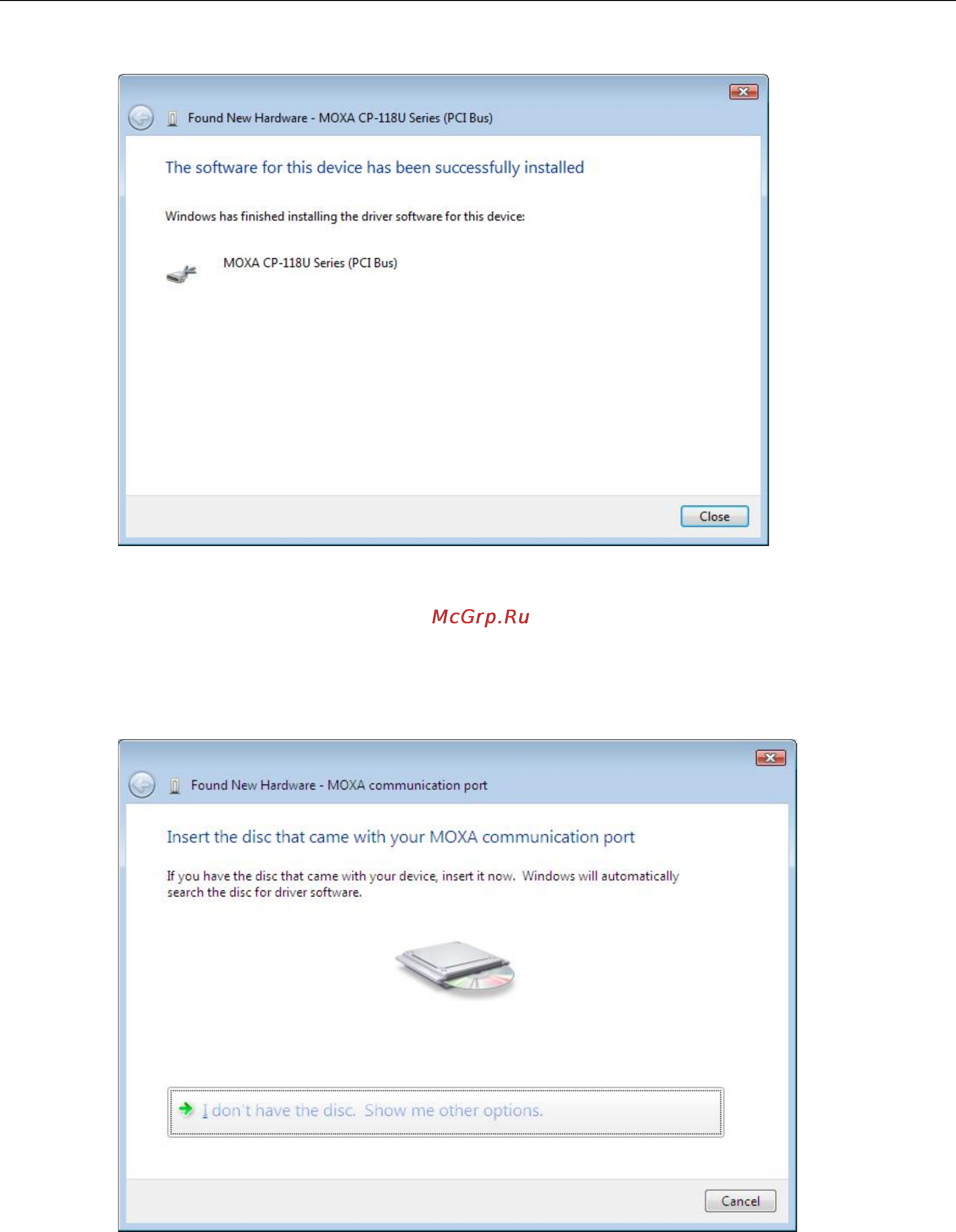

6. After the drivers have been installed, click Close to exit the wizard.
Installing the Ports
After the board and drivers have been installed, an installation wizard will guide you through installation of the
newly added serial ports, starting with port 0.
