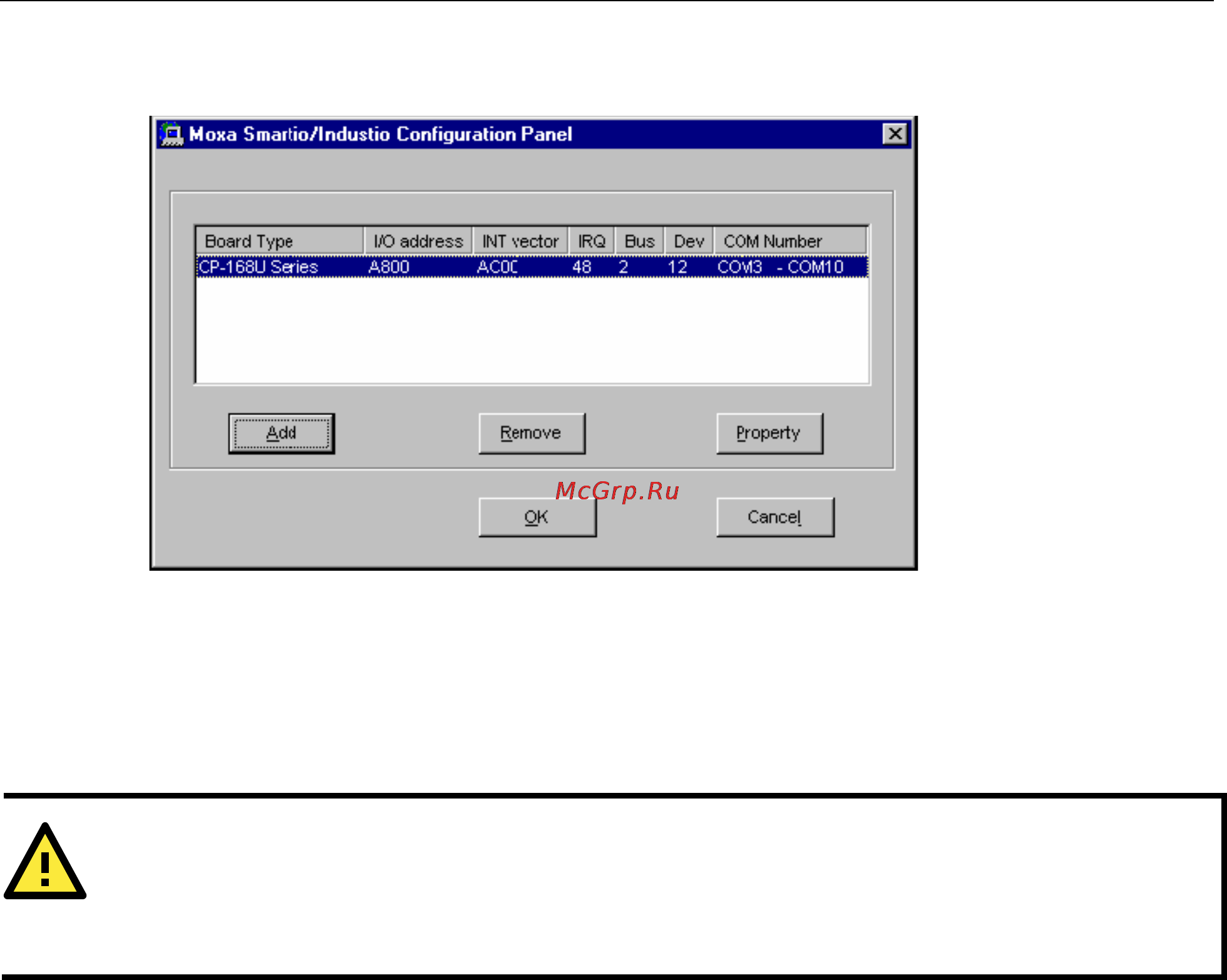

5. The board will now appear in the configuration panel (CP-168U Series in this example). Click OK to

return to the Network applet. After that, click OK again to exit the Network applet

6. Restart the PC. After you have logged back into Windows NT, you may check the event log issued by the

Moxa driver to see if the board’s ports have been initialized successfully. In the Administrative group,

open Event Viewer and select Log and System. For each newly installed or configured Moxa UPCI board,

check for a message stating that the board has been enabled (e.g., “Moxa CP-168U board, with first serial

port COM3, has been enabled”).

ATTENTION

The driver configuration will NOT take effect until you restart the PC.

Double check that all CP

-168U board components are connected and fastened tightly to ensure that the

system and the driver can start up successfully.

Configuring the Ports

1. In Windows Control Panel, open the Network applet. In the Adapters tab, UPCI boards will appear as a

type of Moxa adapter (Moxa Smartio/Industio Family Adapter in this example). Select the Moxa

adapter and click Properties…
