DA-682A Series Hardware Hardware Installation

2-3

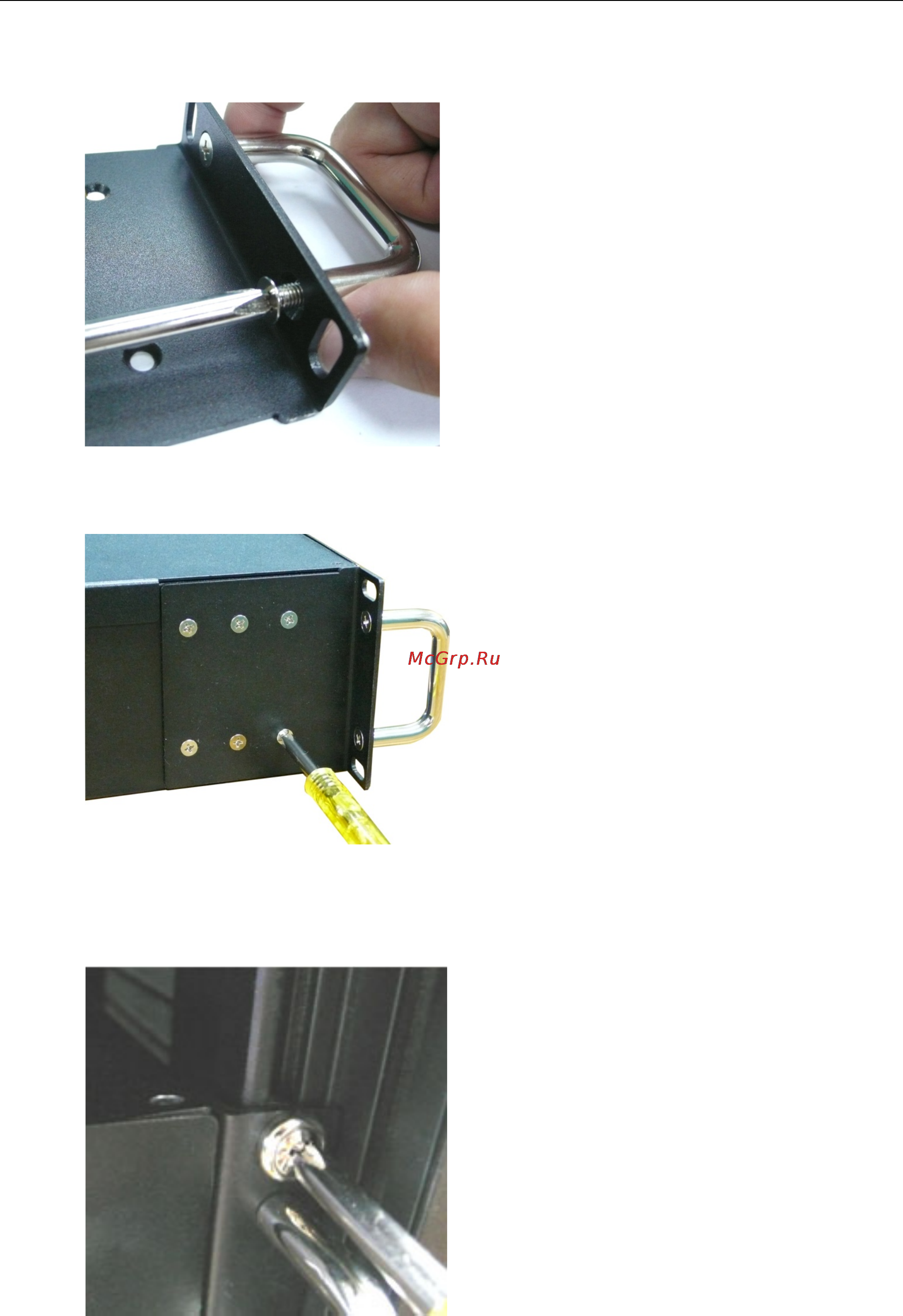

Step 2: Installing the handles

Use 4 FMSM5X10 screws (2 for each side) to attach the handles to the brackets.

Step 3: Installing the brackets

Use 6 FMSM4X6 screws to attach a bracket to one side of the DA-682A. Repeat this procedure on the other side.

Step 4: Installing the DA-682A in a rack.

Gently slide the DA-682A onto the rack, and then use screws (provided by the rack supplier) to fix the bracket

to the rail.

Note that four screws are required to attach the DA-682A to the rack. Use two screws on the left side and two

screws on the right side.
