DA-682A Series Hardware Introduction
1-5

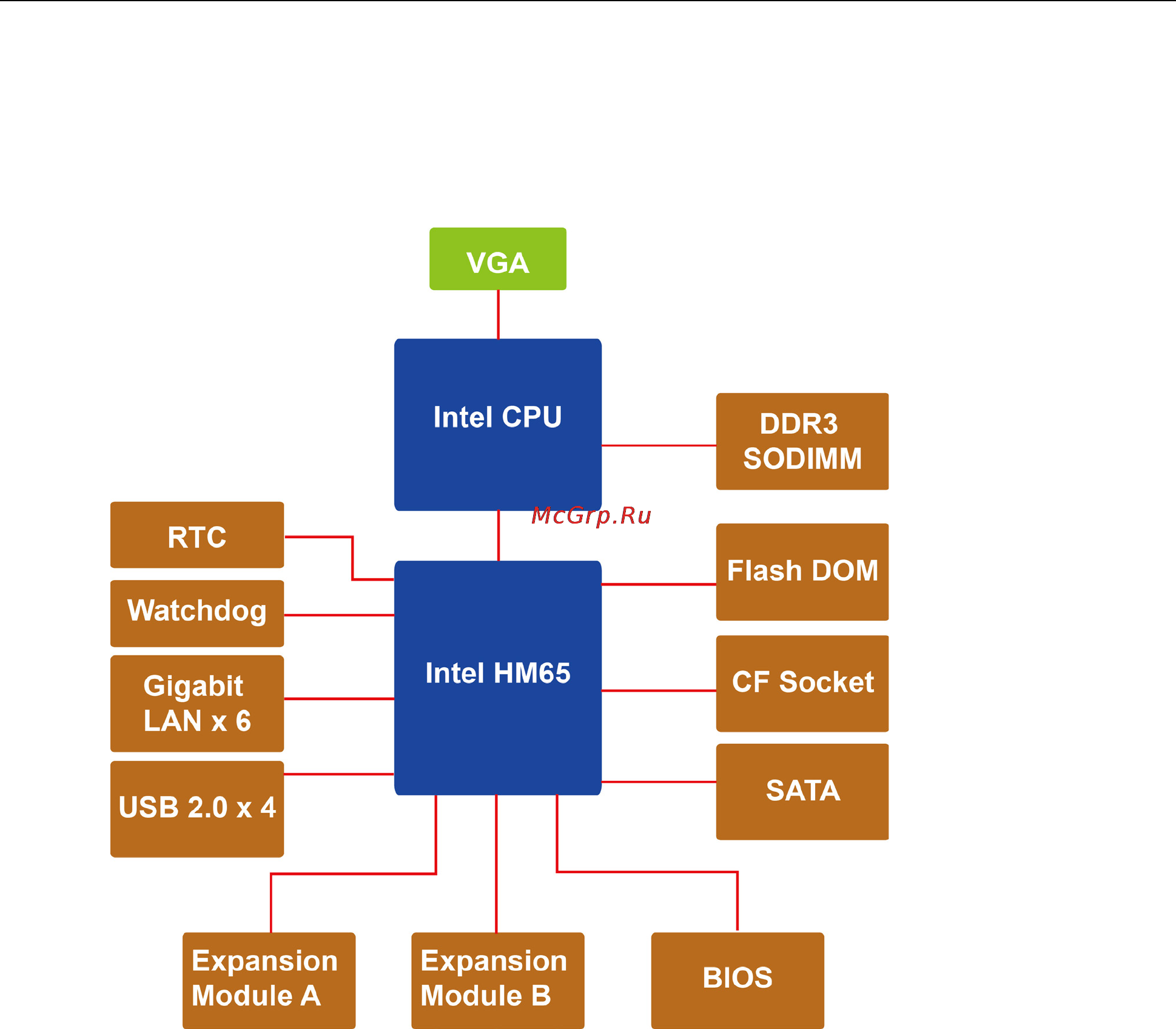

Hardware Block Diagram
DA-682A Basic System
Hardware Specifications
Basic Systems
Computer
CPU:
2nd generation Intel core processors (Sandy Bridge)
• Intel Celeron 827E, 1.4 GHz single core processor
• Intel Celeron 847E, 1.1 GHz dual core processor
• Intel Core i7
-2610UE, 1.5 GHz dual core processor
OS (pre
-installed): Linux or Windows Embedded Standard 7
System Chipset:
Intel HM65
BIOS:
64 Mbit Flash BIOS, PCI Plug & Play, ACPI
System Memory:
4 GB capacity, 1 GB (Linux), 2 GB (Win7) pre-installed: 1 slot of 4 GB DDR3-1066/1333
SO
-DIMM SDRAM M
USB:
4 USB 2.0 ports, system bootable, type A connector
Storage
Built-in: 2 GB (Linux), 8 GB (Win7) industrial DOM for read-only OS volume
Storage Expansion:
• 1 x CompactFlash socket
• 2 x SATA
-300 connector
