DA-682A Series Hardware BIOS Setup
3-3

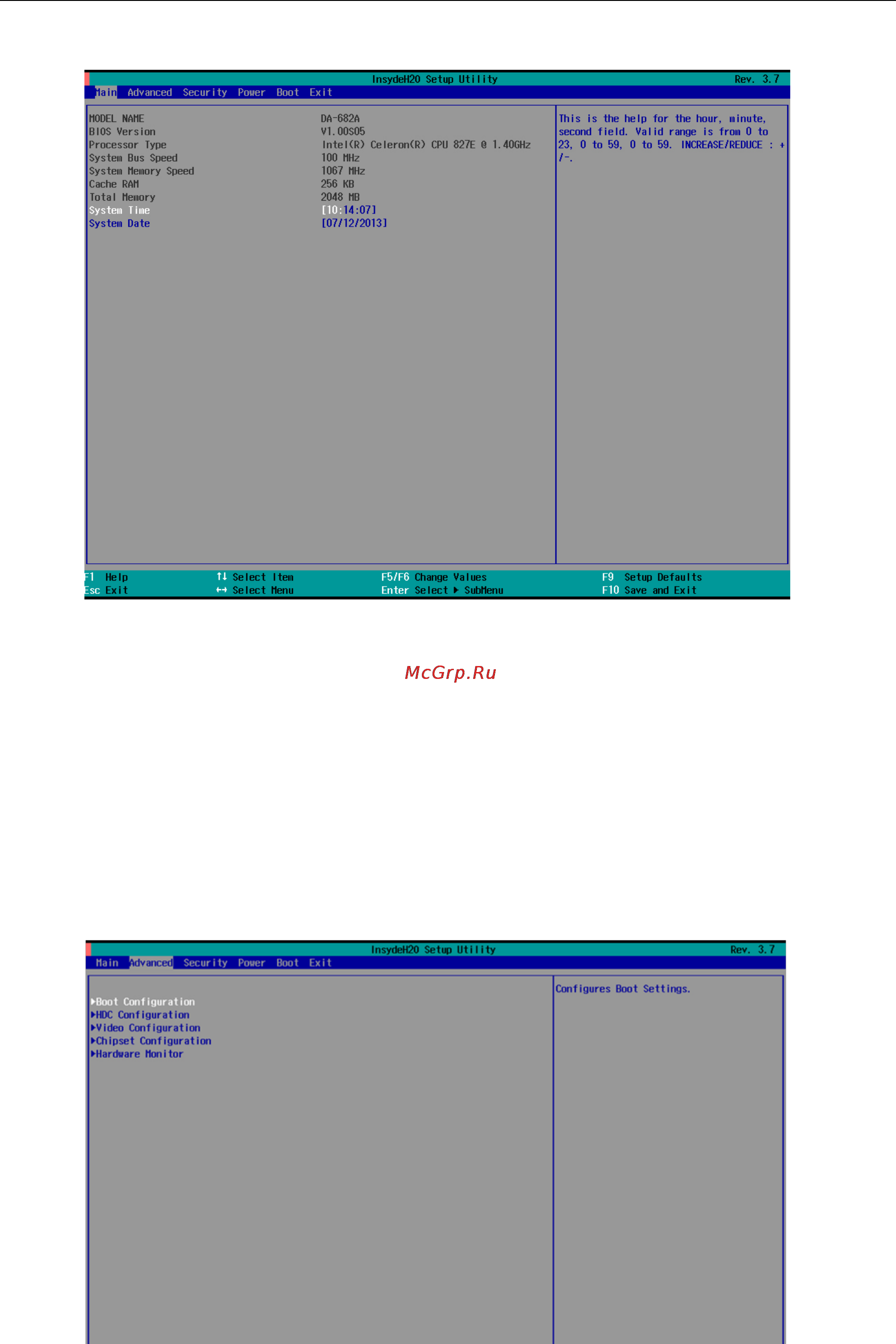

The BIOS configuration screen will be shown when you enter SCU option. Refer to the following figure.
Please note that the information for Processor Type will vary depending on the different models that you
purchase.
Main Information
The main page indicates the system information, such as model name, BIOS version, and CPU type. User may
view the basic system hardware information in the page.
Advanced Settings
The “Advanced Features” screen will appear when choosing the “Advanced” item from the main menu.
