DA-682A Series Hardware Hardware Installation
2-9

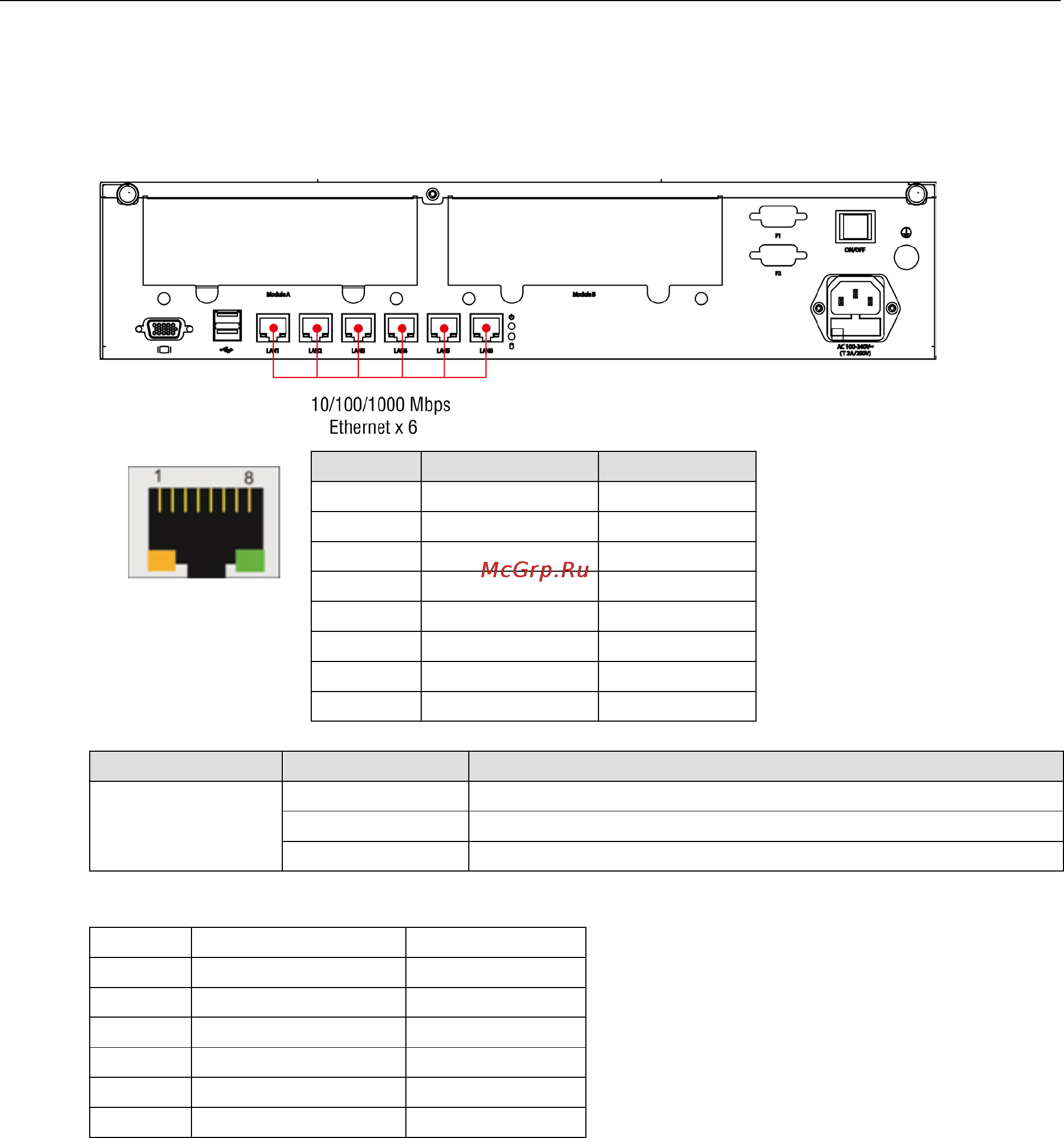

Gigabit LAN Ports
The DA-682A Basic System has 6 Gigabit LAN ports. When the cable is properly connected, the LEDs on the
RJ45 connectors will glow to indicate a proper connection.
Pin 10/100 Mbps 1000 Mbps
1 Tx+ TRD(0)+
2 Tx- TRD(0)-
3 Rx+ TRD(1)+
4 --- TRD(2)+
5 --- TRD(2)-
6 Rx- TRD(1)-
7
---
TRD(3)+
8 --- TRD(3)-
LED Color Description
Gigabit RJ45
Connector
Green 100 Mbps Ethernet mode
Yellow 1000 Mbps (Gigabit) Ethernet mode
Off Not operating or 10 Mbps Ethernet mode
The default IP addresses and netmasks of the Gigabit LAN ports are as follows:
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
LAN 3 192.168.5.127 255.255.255.0
LAN 4 192.168.6.127 255.255.255.0
LAN 5 192.168.7.127 255.255.255.0
LAN 6 192.168.8.127 255.255.255.0
Please note that the W7E models use DHCP for the IP addresses.
