DA-682A Series Hardware Introduction
1-4

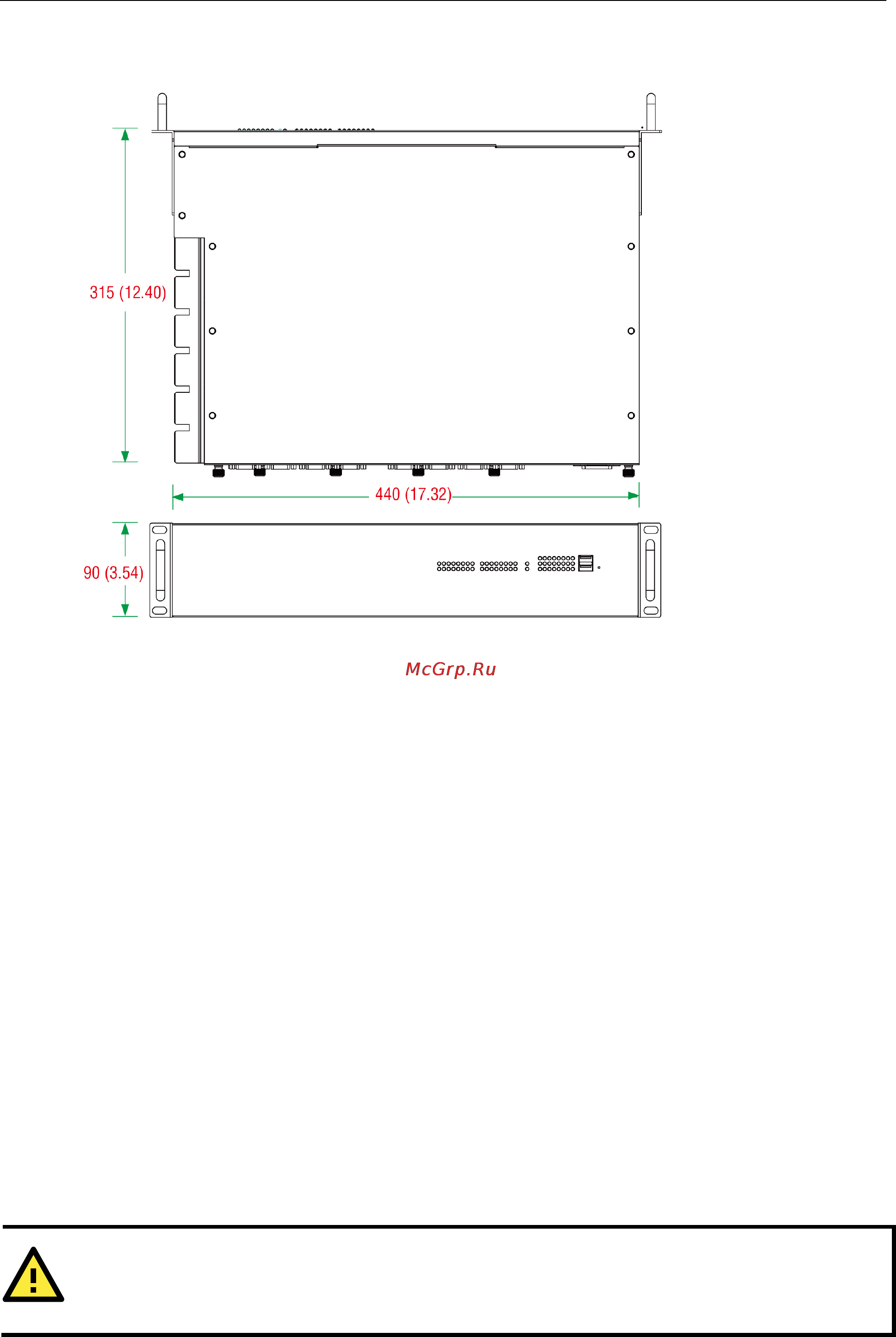

Dimensions
Features
The DA-682A computer has the following features:
2
nd
generation Intel core processors (Sandy Bridge)
Built-in DDR3 SDRAM and industrial DOM
6 Gigabit Ethernet ports for network redundancy
2 PCI expansion slots for expansion modules
1 CompactFlash socket for storage expansion
4 high speed, system-bootable USB 2.0 ports
19 inch 2U rack-mountable case
100/240 VAC power inputs
Ready-to-Run Linux Debian 7 or Windows Embedded Standard 7 platform
Fanless design
Features supported by expansion modules:
• 8 or 16 software selectable RS-232/422/485 serial ports, with or without isolation protection
• Serial port baudrates from 50 to 921.6 Kbps, with support for most non-standard baudrates in this range
• Additional 4 or 8 10/100 Mbps Ethernet ports
ATTENTION
R
efer to the “Non-standard Baudrates” section for instructions on how to calculate which baudrates are
supported
.
