DA-682A Series Hardware Hardware Installation
2-8
Connecting USB Devices

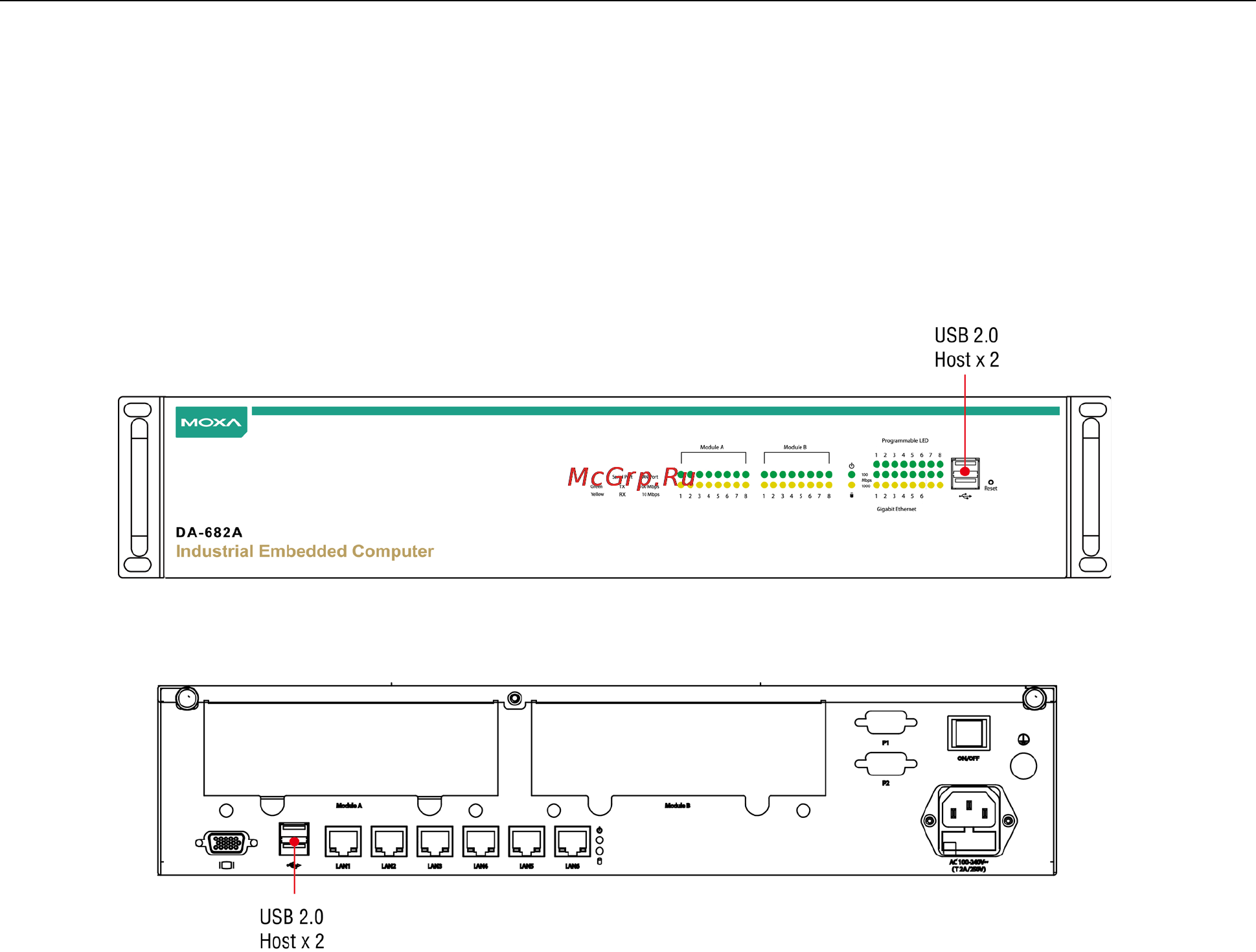

The DA-682A embedded computer has four USB 2.0 ports, with two ports on the front panel and the other two
on the rear panel. All of the ports are UHCI, Rev 2.0 compliant and support Plug & Play and hot swapping. These
ports can be used to connect USB devices, such as a keyboard, mouse, USB flash disk, and USB CD-ROM. In
addition, both USB ports support system boot up, which can be activated by modifying the BIOS settings. The
chapter “BIOS Setup” describes the configuration process in detail.
