V2201 Series Hardware Hardware Connection Description

3-3

The DK-DC50131 die-cast metal kit must be purchased separately. The kit is easy to install and makes the

operation of the V2201 more robust. To install the DIN-rail mounting kit, use 4 screws to tightly attach the

DIN-rail mounting bracket to the V2201’s side panel.

NOTE

Use all four screws to ensure that the V2201 is safely and securely installed on the DIN rail.

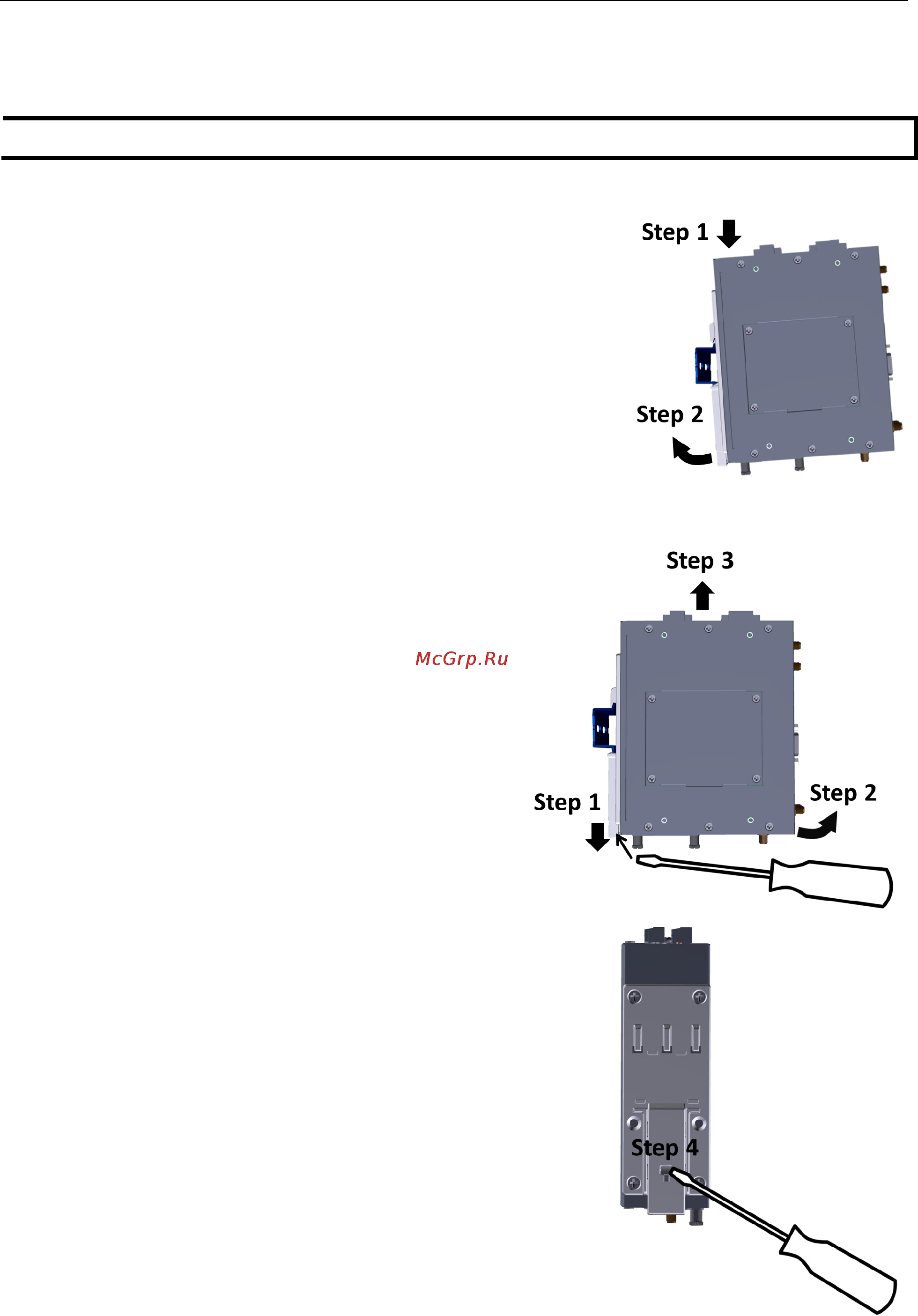

Installation:

STEP 1:

Insert the

upper lip of the DIN rail into the DIN-rail mounting kit.

STEP 2:

Press the V2201 towards the DIN

-rail until it snaps into place.

Removal:

STEP 1:

Pull down the latch on the mounting kit with a

screwdriver.

STEP

S 2 & 3:

Slightly pull the V2201 forward

and lift up to remove it

from the DIN

-rail.

STEP 4:

Press the recessed button on the spring

-loaded bracket to lock it

into position for next use.
