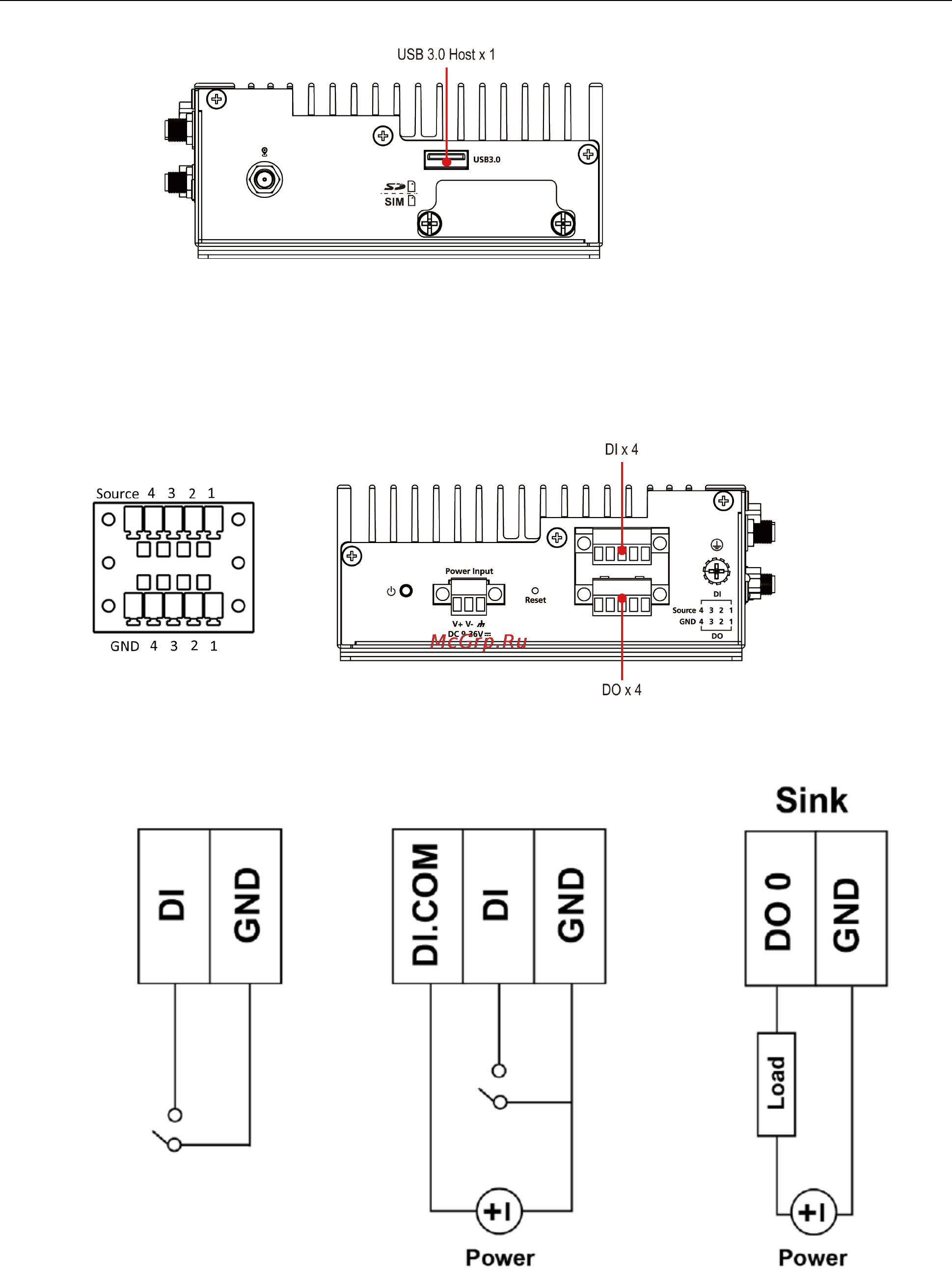

V2201 Series Hardware Hardware Connection Description
3-9
DI/DO
The V2201 comes with a 4-ch digital input and a 4-ch digital output that connect through a terminal block
connector. The pin assignments and wiring methods are shown below.
DI Dry Contact DI Wet Contact DO Contact
