V2201 Series Hardware BIOS Setup
4-7

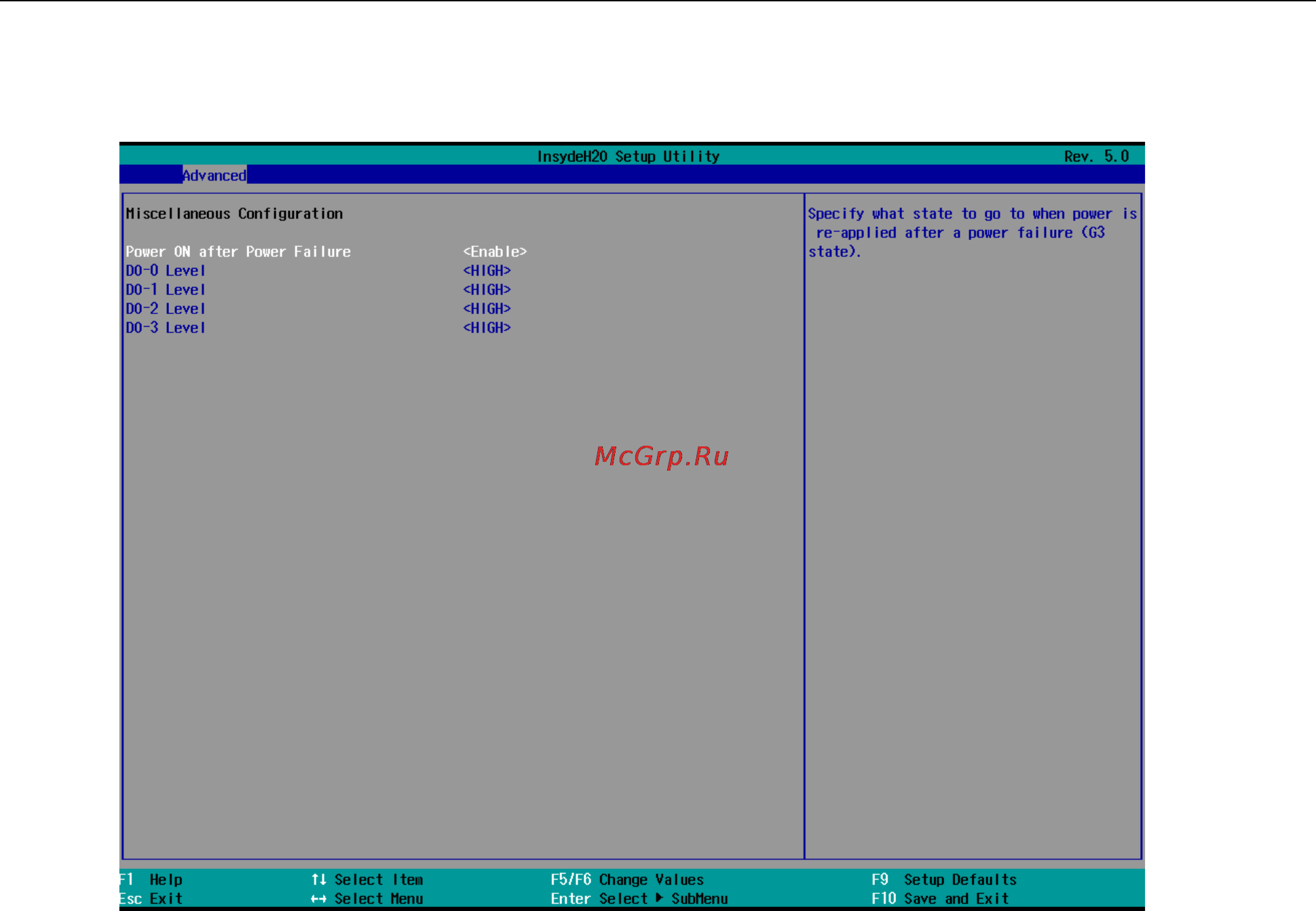

Miscellaneous Configuration
Power ON after Power Failure
This setting allows you to configure whether or not the computer automatically powers up after a system crash.
When set to ON, the computer will automatically power up after a system crash; when set to OFF, it won’t
automatically power up after a system crash. Options: ON (default), OFF, Last State.
DO-0 Level
This item allows you set the DO 0 as high or low.
Options: High (default), Low
DO-1 Level
This item allows you set the DO 1 as high or low.
Options: High (default), Low
DO-2 Level
This item allows you set the DO 2 as high or low
Options: High (default), Low
DO-3 Level
This item allows you set the DO 3 as high or low.
Options: High (default), Low
