V2201 Series Hardware Hardware Connection Description

3-8

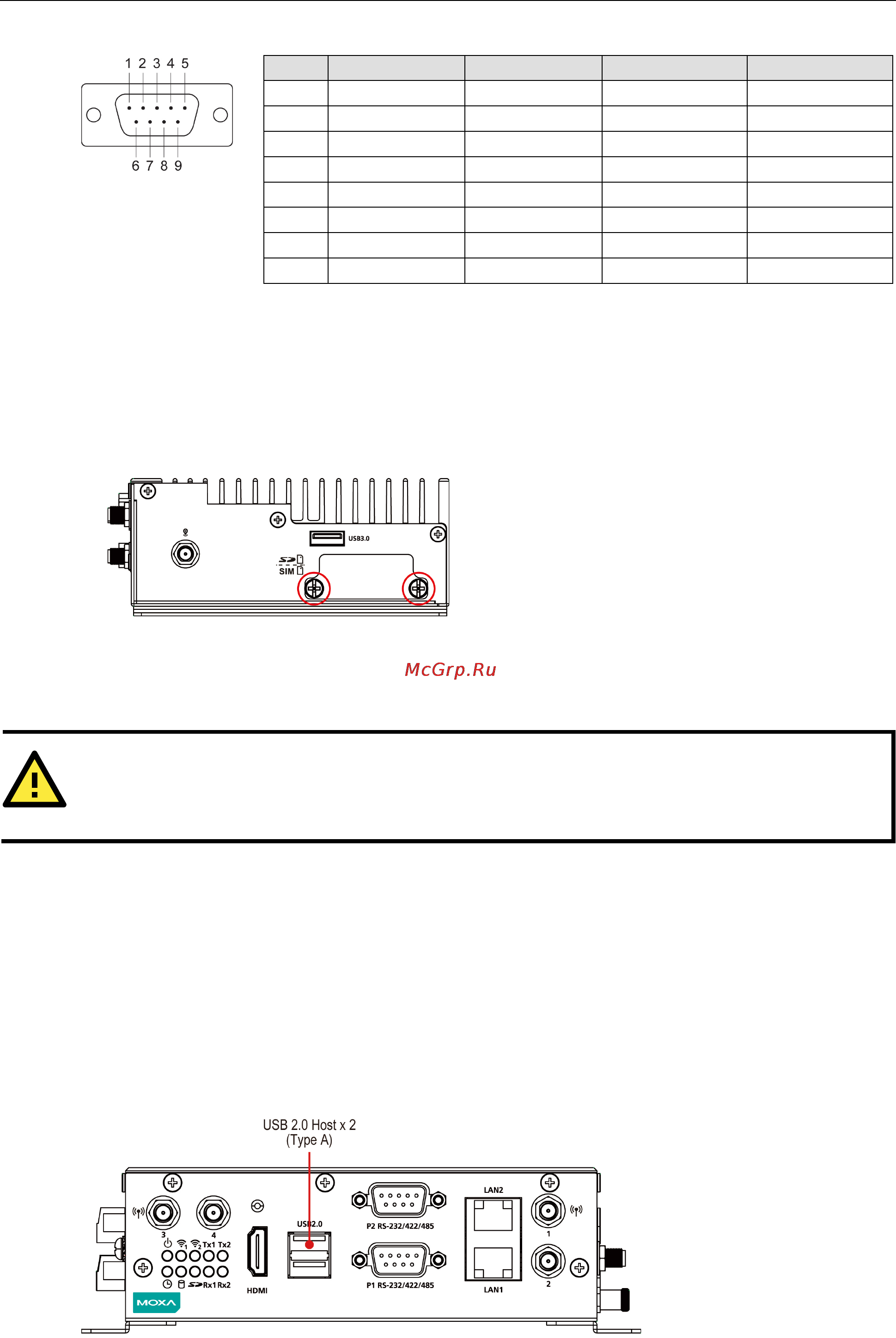

DB9 Male Port

-232/422/485 Pinouts

Pin RS-232 RS-422 RS-485 (4-wire)

RS-485 (2-wire)

1 DCD TxDA(-) TxDA(-) –

2 RxD TxDB(+) TxDB(+) –

3 TxD RxDB(+) RxDB(+) DataB(+)

4 DTR RxDA(-) RxDA(-) DataA(-)

5 GND GND GND GND

6 DSR – – –

7 RTS – – –

8 CTS – – –

Installing an SDHC/SDXC Card

The V2201 has an SD slot for storage expansion. The SD slot allows users to plug in a Secure Digital (SD)

memory card compliant with the SD 3.0 standard. The following steps show how to install the SD card.

1. Disconnect the V2201 from its power source.

2. The SD slot is located on the right side of the front panel. Loosen the screws on the SD/SIM card cover.

3. Press the SD card to eject it.

When you want to insert it back into the SD slot, slide it into the slot and then push it in with your finger until

it latches firmly.

ATTENTION

sure to

properly orient the CFast card when installing it; otherwise, you may not be able to insert the card

all the way into the slot.

4. After the SD card is installed correctly, fasten the screws on the SD/SIM card cover.

Connecting to a USB Device

The V2201 comes with one USB 3.0 host with type-A connector on the right side panel and two USB 2.0 hosts

with type-A connectors on the front panel. These ports can be used for connecting to an external flash disk or

hard drive for storing data. You can also use these USB ports to connect to a keyboard or a mouse.

The following figures show the locations of the USB ports.
